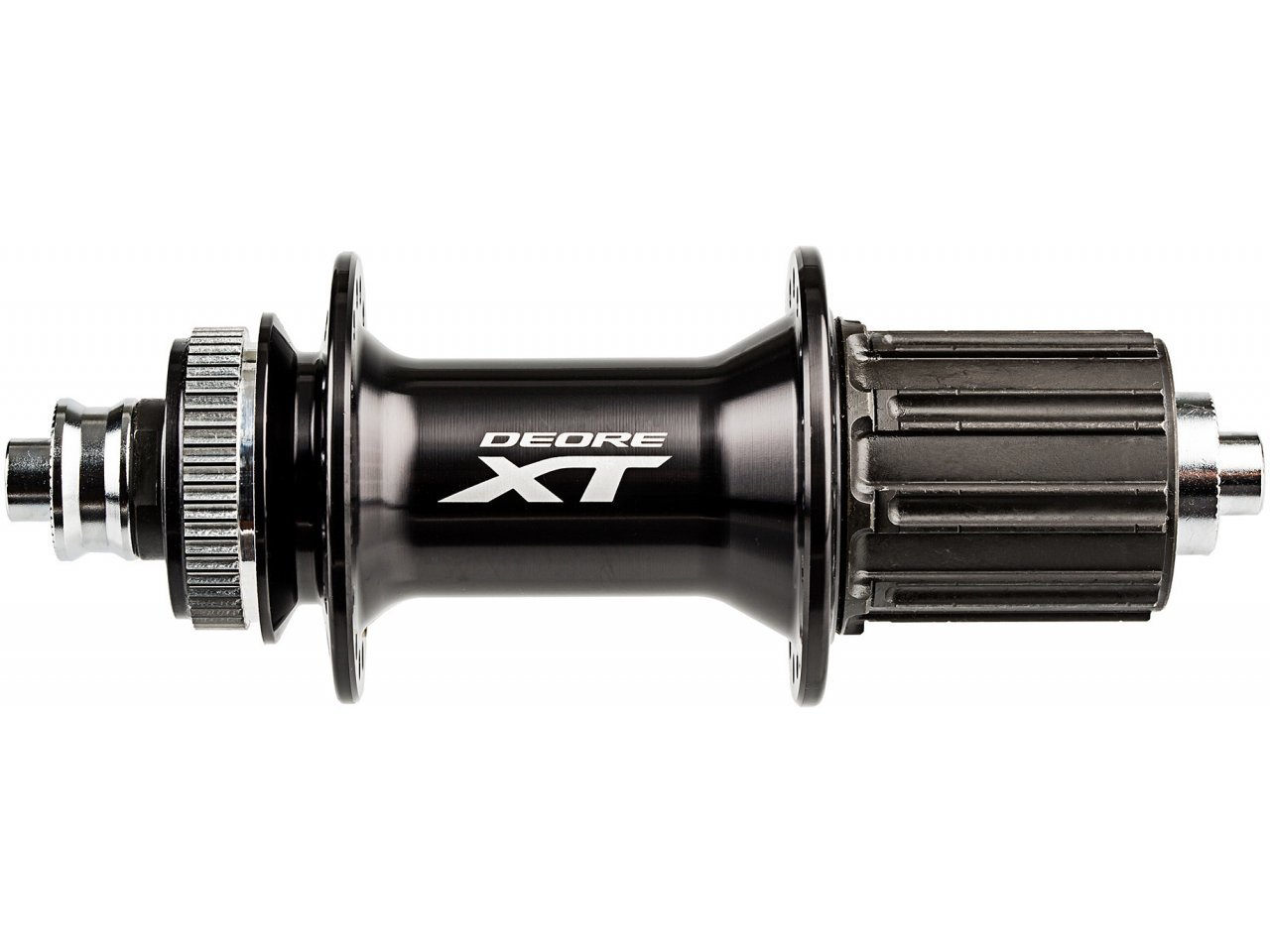

Shimano XT FH-M8000 Disc Center Lock Rear Hub for Quick Releases
EFHM8000BZA
SHIMANO DEORE XT - Rear FREEHUB - CENTER LOCK - Disc Brake - Quick Release - 11-speed
With refined gear engagement, high quality seals, and angular contact bearings, the SHIMANO DEORE XT freehub delivers durable, MTB performance.
SPECIFICATIONS
| MODEL NO | FH-M8000 |
|---|---|
| SERIES | DEORE XT M8000 Series |
| Color | Series color |
| Average weight | 331g |
| Axle Fixing method | Quick release |
|---|---|
| Bearing_Cone | CBN |
| Brake Type | CENTER LOCK disc brake |
| Disc mount_Outer serration rotor lock ring_without | ✔ |
| Flange diameter (mm) | 52.8/53.8 |
| Flange distance (mm) | 57.4 |
| Internal grease sleeve | ✔ |
| Internal serration rotor lock ring_without | ✔ |
| O.L.D. (mm) | 135 |
| Offset (mm) | 6.9 |
| P.C.D. (mm) | 44/45 |
| QR_Skewer Length_168mm | ✔ |
| QR_Skewer Length_173mm | ✔ |
| QR lever_Color | Series color |
| Quick engagement | X (more than 36 times/ 360 deg.) |
| Seal_Freehub body | Contact |
| Seal_Hub | Labyrinth & Contact |
| Speeds | 8-10-speed, MTB 11-speed |
| Spoke holes_32H | ✔ |
