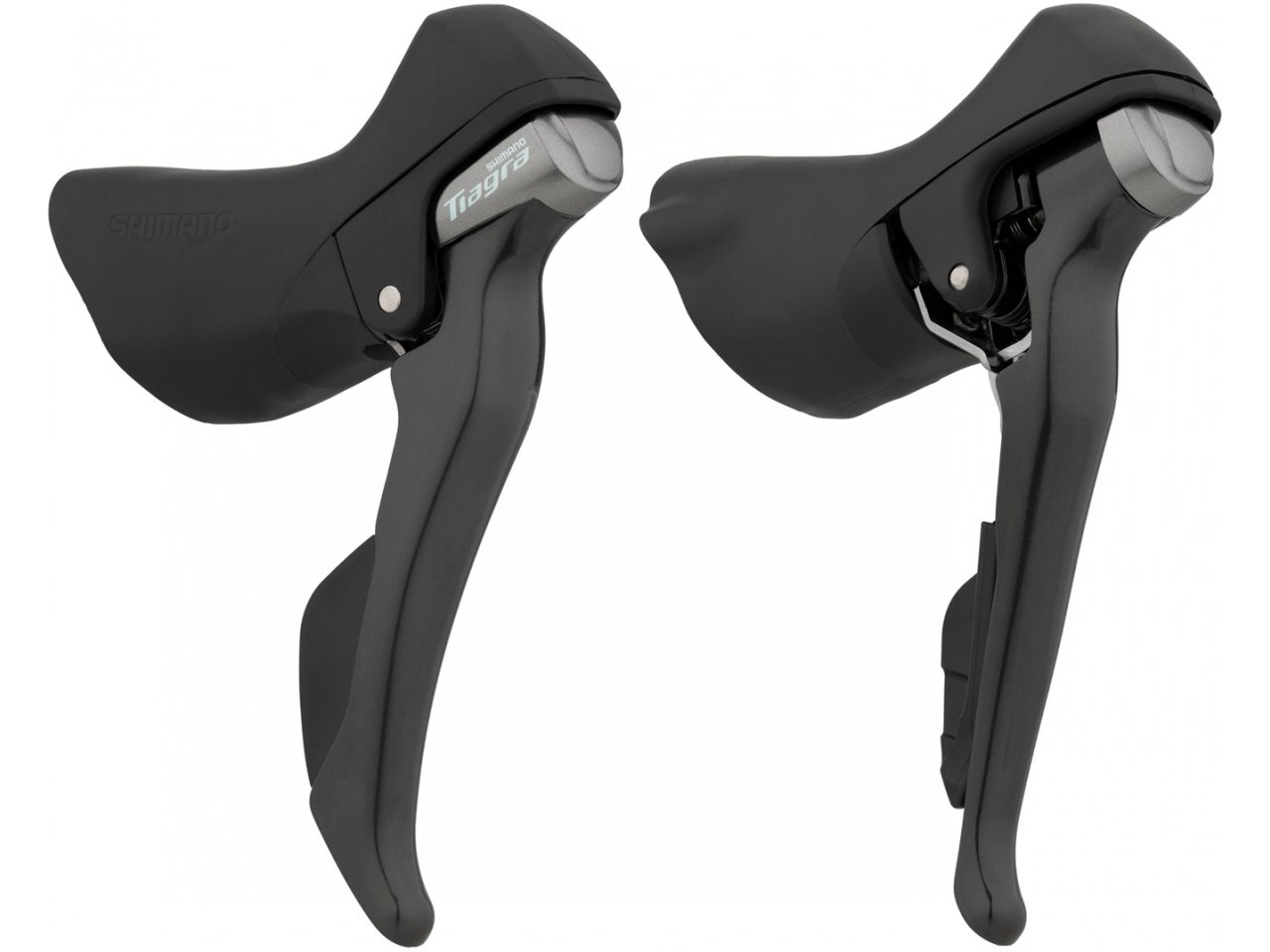

The Shimano Tiagra ST-4700 STI shift/brake lever set - crisp and effortless shifting
The Shimano Tiagra ST-4700 shift/brake levers (2x10) convince with smooth and yet crisp shifts. Compared to their predecessors, they have been designed to be more ergonomic and offer a comfortable feeling of leverage, which is further enhanced by the slim lever. With the internal cable routing they contribute to a tidy cockpit. Optislick cables and OT-SP41 cable housings are included.
Specifications:
Series: Tiagra 4700
Application: Road, City
Gearing: 2x10-speed
Shifting System: mechanical
Brake Type: mechanical
Technical Information:
Brake Lever Material: aluminium
Lever Body Material: composite (GFRP)
Mount: clamp (closed)
Reach Adjust: bolt
Adjustment Options: reach adjust
Compatibility:
Front Derailleur: FD-4700, FD-RX400 for ST-4700, FD-4703 for ST-4703
Rear Derailleur: RD-4700, RD-RX400 for ST-4700
Brake Caliper: mechanical Road side-pull, CX cantilever and mechanical Road/CX disc
Not compatible with older 10-speed front or rear derailleurs.
Features:
- effortless, precise shifts
- Vivid Index Shifting: smooth shifts, but still robust
- ergonomic brake lever, easier access from the brake lever position
- improved ergonomics with slim and compact lever
- comfortable lever feel for different types of riders
- smaller brake lever cover
- smooth surface with closed mechanism
- clean internal cable routing for a tidy cockpit
- refined shift lever, revised triple system
- stainless steel Optislick cable
- OT-SP41 cable housing on lever side, OT-SP41 sealed to rear derailleur
- SLR-EV brake technology
- painted main lever
- for 23.8 - 24.2 mm handlebar diameter
Technology:
STI Dual Control (DCL)
DCL stands for Dual Control Lever. It has brake and shifting functions in the system and enables easy operation. Ergonomic innovation is probably more critical to the higher standard performance than the added gearing. The shift internals borrow the robustness from Shimano's MTB technology and are so smooth and effortless that one finger shifts front and rear are possible. Indeed, shifting is the ultimate act of Shimano Total Integration, and simply has to be experienced to be understood.
Models:
2x10-speed:
- Type: ST-4700
- Gearing: 2 x 10-speed
- Manufacturer Part Number: IST4700PAC2
Contents:
- 1 pair of Shimano Tiagra ST-4700 shift/brake levers
- 1 x Shimano cable, 2100 mm
- 1 x Shimano cable, 1800 mm
- incl. cable housings
