Shimano Road Wheels WH-RS171 Set


Regular priceRs. 14,750.00
Tax included. Shipping calculated at checkout.

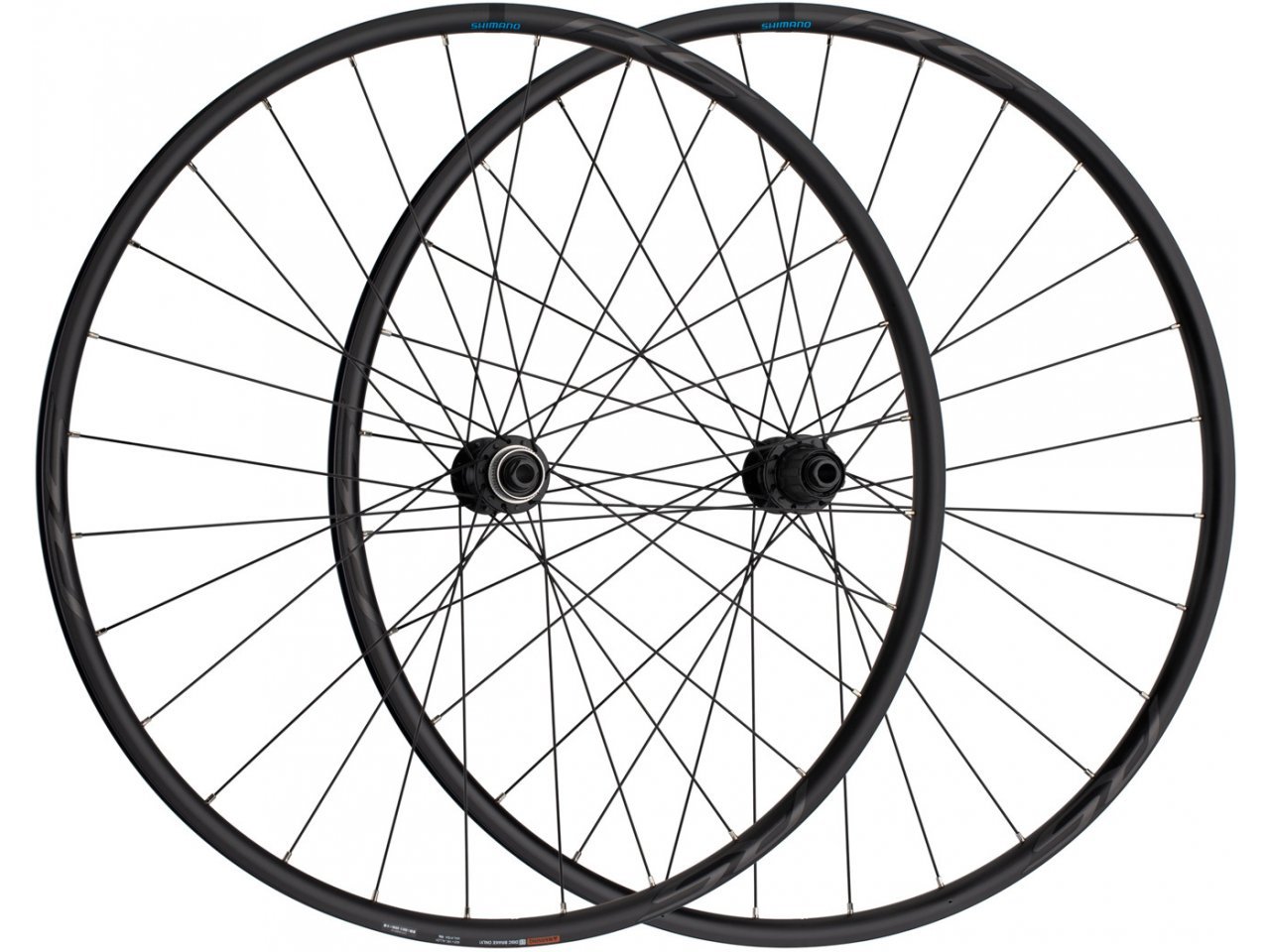

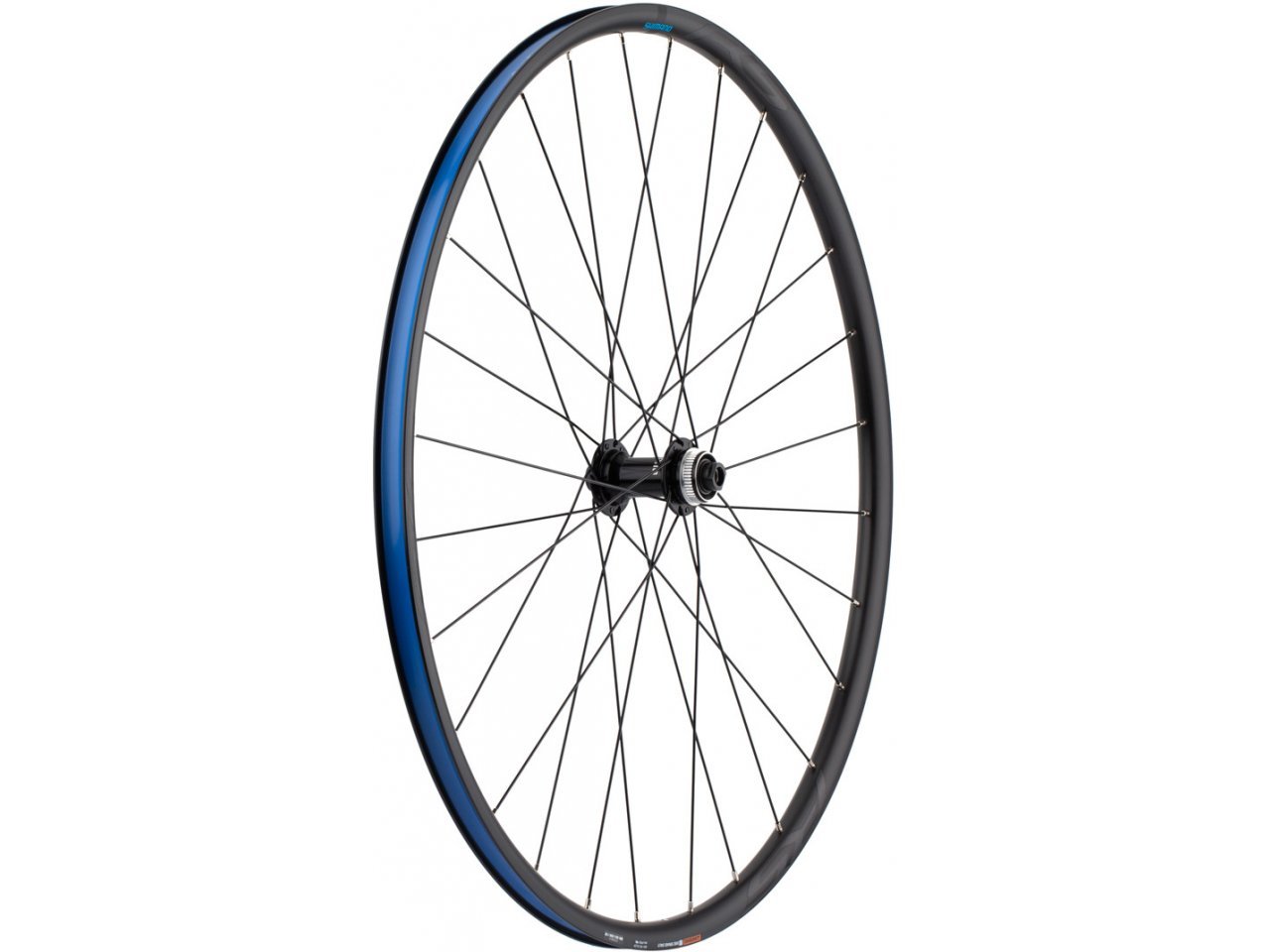

Shimano WH-RS171-CL 28" wheelset - wider and lighter

The Shimano WH-RS171-CL 700c wheelset has a wider rim profile than its WH-RS170 predecessor, but is a few grams lighter. The inner dimension is now 19 mm, which makes the wheels interesting for off-road use. Of course, the proven Shimano quality technologies have been retained.


Application: Road, Gravel, Cyclocross
Wheel Size: 28"
Tyre Type: clincher
Number of Spokes: 28
Brake Type: Center Lock disc
Tubeless System: none

Technical Information - Rim:

Dimensions (ETRTO): 19-622
Inner Width: 19 mm
Outer Width: 24.6 mm
Depth: 19 mm
Valve Hole Diameter: Presta (6.5 mm)
Rim Material: aluminium

Technical Information - Front Hub:

Over Locknut Dimension: 12 x 100 mm thru-axle
Bearings: cup & cone
Body Material: aluminium

Technical Information - Rear Hub:

Over Locknut Dimension: 12 x 142 mm thru-axle
Bearings: cup & cone
Body Material: aluminium
Freehub Body Material: steel

Technical Information - Lacing:

Front Lacing Pattern: 2-cross
Rear Lacing Pattern: 2-cross
Spoke Type: J-bend / round
Spoke Length: 290 mm (front), 290 mm/288 mm (rear l/r)
Spoke Material: stainless steel
Nipple Material: brass

Approved For:

Recommended Tyre Width: 28-622 - 42-622


- 19c rim profile for better performance with wider tyres
- over 100 g lighter than predecessor WH-RS170
- stiff 12 mm axle system front and rear
- proven Shimano quality and technologies
- sleeved rim joint
- CBN precision machined bearings, polished, with contact seal
- freehub body has contact seal
- grease retention function
- anodised and painted rim, anodised hub body
- aluminium axles
- needs rim tape


Cup and Cone Bearings
Angular contact bearings of the cup and cone type offer greater strength than sealed cartridge industrial bearings due their ability to displace lateral and vertical loads more effectively for super smooth rotation and longer durability. Angular contact bearings also allow easier maintenance, adjustability and serviceability.

The tool-less type thru-axle skewer system optimizes rigidity and weight balance and enables easy operation with a reliable internal cam mechanism. High rigidity is secured while keeping the optimum weight balance. The E-Thru axle hub system minimizes the distortion of suspension while maintaining lightweight for riding around sharp corners at high speed.

Colour Index:

- Rim: black
- Hubs: black
- Spokes: black
- Nipples: silver


28" set (front 12x100 + rear 12x142) Shimano:
- Freehub: Shimano Road
- Gearing: 8-/9-/10-/11-speed
- Note: Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.
- Manufacturer Part Number: E-WHRS171FED70B + E-WHRS171RED70B


- 1 x Shimano WH-RS171-CL-700C wheelset (front & rear)
- incl. rim tape
