Shimano Deore Hydraulic Disc Brake Set - MT410

EMT4101JLFPRA100

Sale priceRs. 4,010.00
/
Tax included. Shipping calculated at checkout.

Type

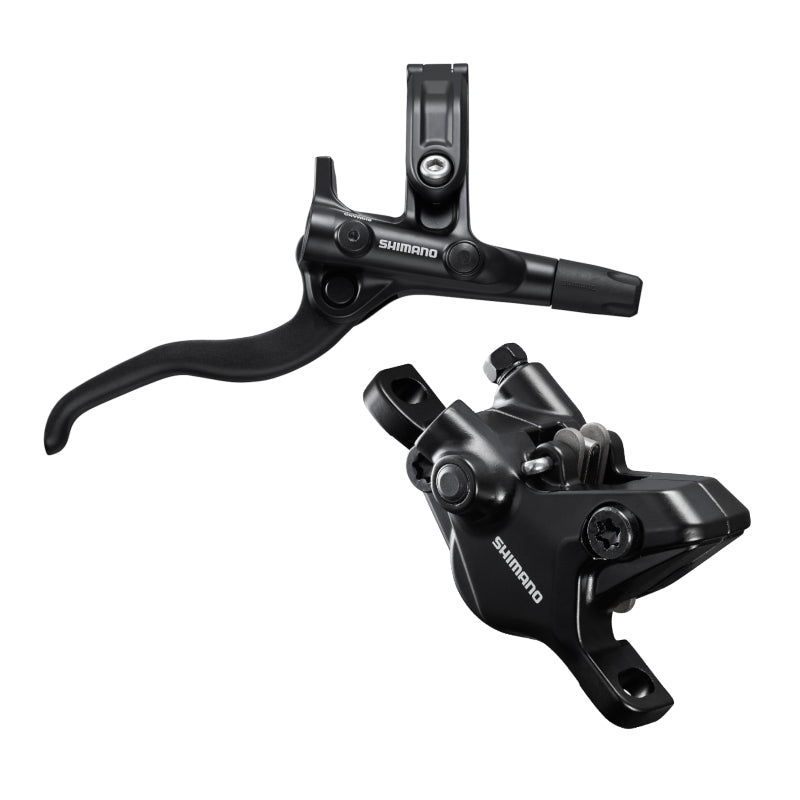

The Shimano BR-MT410 disc brake for All Mountain as well as City & Touring use consists of a 2-piston brake caliper and a reach adjustable 2-finger brake lever made of aluminium. The brake lever is mounted to the handlebars with a split clamp, which also allows the combination with a matching I-Spec EV shifter. Funnel bleeding and One-Way Bleeding technology, which prevents air bubbles from remaining in the caliper, make maintenance easier. As a J-Kit this brake is delivered in a way that you can easily mount it, even if internal brake hose routing is possible.

Technology Used

I-Spec EV
I-Spec EV describes a variant of the connection between brake lever and shifter in MTB drivetrains. This type of mounting allows the shifter to be adjusted both horizontally and vertically in relation to the brake lever, and ensures a tidy cockpit by reducing the number of clamps required. Compared to I-Spec and I-Spec II, I-Spec EV offers a much wider adjustment range. 14 mm adjustment range the longitudinal direction and up to 60° rotation allow an optimal ergonomic adjustment to your riding style, your sitting position and your anatomy.

One-Way-Bleeding
One Way Bleeding is a technique used on the brake calliper that makes it easier to bleed the brake. The hose routing has been optimised so that no air bubbles remain in the brake calliper. In combination with the funnel, the brake can be bled cleanly and easily.

J-Kit
J-Kit is a simple hose connection system for hydraulic brakes on internally routed hoses so that you can install your brake quickly and easily. The brake hose does not come connected to the brake to facilitate the routing of the hose in the frame. The brake hose is already filled with oil in the J-Kit and sealed with a thin membrane. There is a small pin in the J-Kit brake lever that pierces this diaphragm during

Specification

  • Application: All Mountain, City & Touring, Cross Country
  • Type: hydraulic, 2 pistons
  • Actuation: mineral oil
  • Hose: SM-BH59-JK-SS
  • Line Length (Front/Rear): 1000 mm/1700 mm

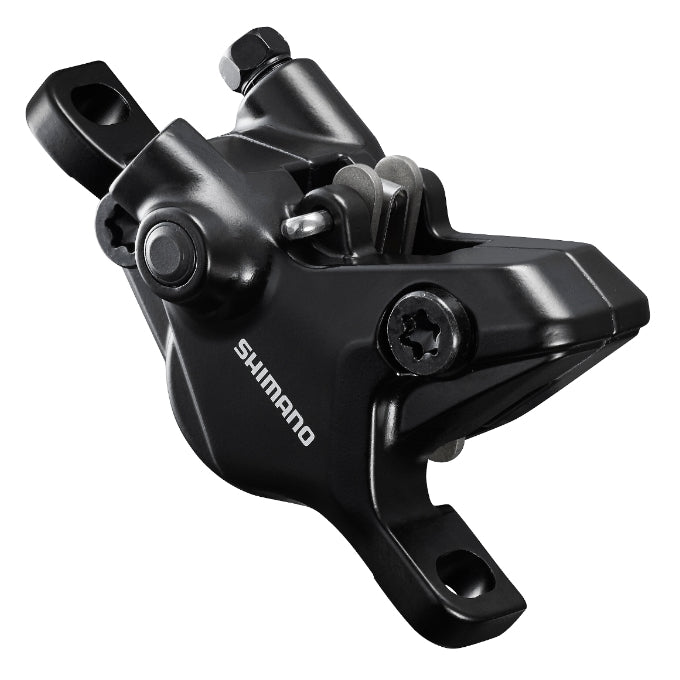

Technical Information - Calliper

  • Calliper Mount: post mount
  • Pistons: 2
  • Pads: B01S resin
  • Design: 2-piece
  • Calliper Material: aluminium
  • Hose Connection: straight

Technical Information - Lever

  • Lever Length: 2-finger
  • Adjustment Options: reach adjust (with tools)
  • Installation: clamp (split), I-Spec EV
  • Design: right (side-specific), left (side-specific)
  • Brake Lever Material: aluminium
  • Brake Lever Housing Material: aluminium
  • Hose Connection: straight

Features

  • Powerful 2-piston brake caliper
  • Superior modulation
  • IS mounting and PM non direct mounting possible with adapter
  • Resin pistons
  • Recommended brake rotor: SM-RT30SM-RT54SM-RT56
  • Funnel bleeding
  • Brake caliper painted, bolt made of steel (5 mm)

Manufacturer Part Numbers

  • Front: EMT4101JLFPRA100
  • Rear: EMT4101JRRXRA170

Contents

  • 1 x Shimano BR-MT410 + BL-M4100 disc brake, front or rear
  • 1 x Shimano SM-BH59-JK-SS brake hose, 1000 mm (front) or 1700 mm (rear)
  • 1 pair of Shimano B01S brake pads
  • 1 x inserts
  • 1 x olives
  • 2 x calliper bolts
  • 1 x Snap ring, mount ready, filled, bleeding is recommended

Warranty Information

  • 3 Years Warranty on Dura-Ace and XTR Components
  • 2 Years Warranty on all other Shimano Components
  • 1 Year Warranty on all Shimano footwear, clothing and wheels
