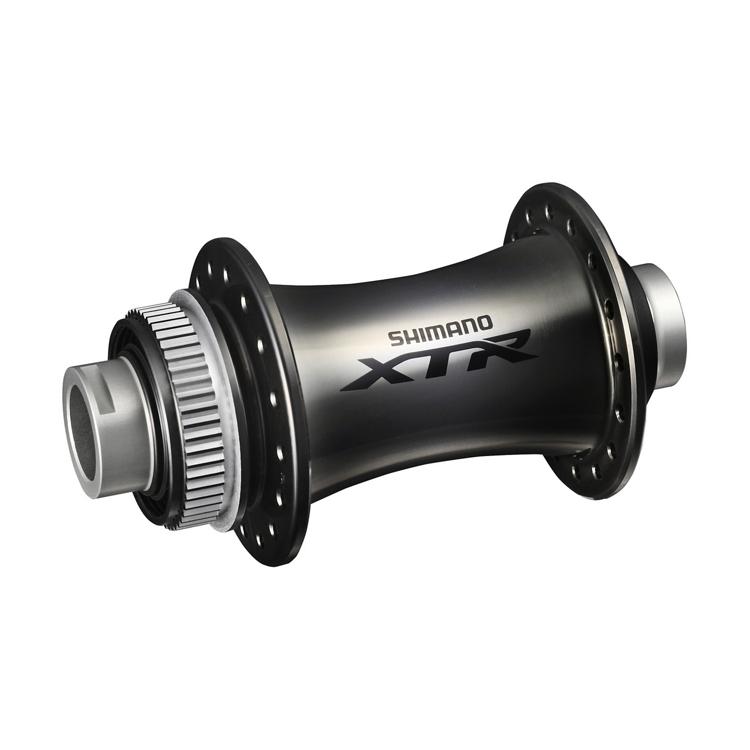

Shimano HB-M9010 XTR Front Hub for Disc Brake (15mm E-THRU Axle)
IHBM9010B
Front Hub for Disc Brake (15mm E-THRU Axle)
FEATURE- High durability Cup & Cone Bearing
- 33g lighter aluminum axle (FH-M9010)
- MTB 11/10-speed compatible freehub body
BENEFIT
- 15mm E-THRU type
- FH-M9000 quick release type
- FH-M9010 12mm E-THRU type
- Lightweight bearing and axle system
- CENTER LOCK
- Weight: 136g
PRODUCT SPECIFICATIONS
| MODEL NO | HB-M9010 |
|---|---|
| SERIES | SHIMANO XTR M9000 Series |
| Color | Series color, - |
| Average weight | 136 g |
| Bike Type | MTB |
| Thru Axle(Length x Inner diameter)_100 x 8 mm | -- |
| Bearing_Stainless ball | X |
| Disc mount_Outer serration rotor lock ring_with | X |
| Flange diameter (mm) | 60.2 |
| Flange distance (mm) | 52.8 |
| Internal grease sleeve | X |
| O.L.D. (mm) | 100 |
| Offset (mm) | 5.4 |
| Spoke holes_28H | X |
| Spoke holes_32H | X |
| Spoke Holes | 28H, 32H |
