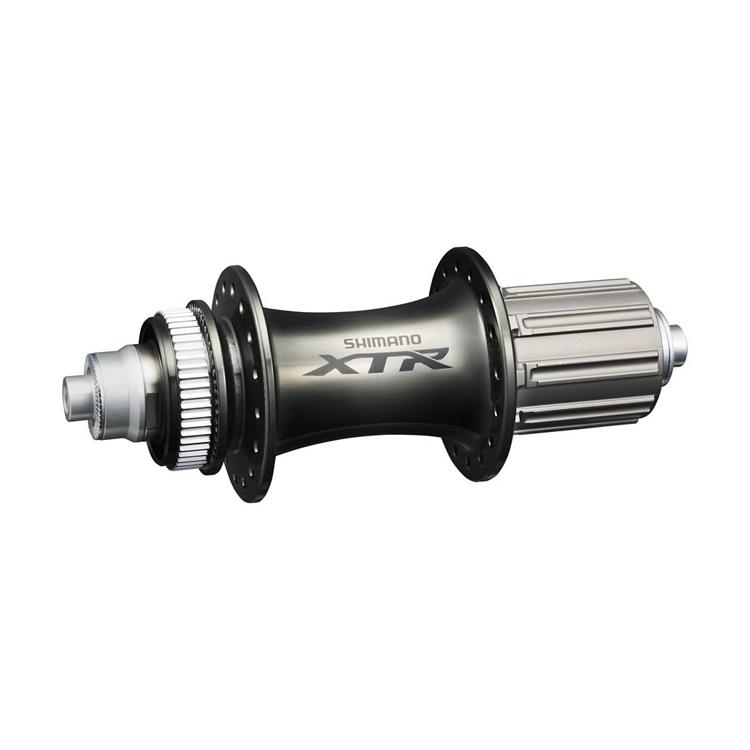

Shimano FH-M9000 XTR Centerlock Disc Brake Hub - 10/11 Speed
IFHM9000BZB
Rear FREEHUB for Disc Brake
FEATURE- High durability Cup & Cone Bearing
- 33g lighter aluminum axle (FH-M9010)
- MTB 11/10-speed compatible FREEHUB body
BENEFIT
- HB-M9010 15mm E-THRU type
- FH-M9000 quick release type
- FH-M9010 12mm E-THRU type
- Lightweight bearing and axle system
- CENTER LOCK
PRODUCT SPECIFICATIONS
| MODEL NO | FH-M9000 |
|---|---|
| SERIES | SHIMANO XTR M9000 Series |
| Color | Series color, - |
| Average weight | 271 g |
| Axle Fixing method | QR |
| Bearing_Cone | CBN |
| Bearing_Cup | Grinding |
| Bearing_Stainless ball | X |
| Brake Type | CENTER LOCK disc brake |
| Flange diameter (mm) | 52.8/53.8 |
| Flange distance (mm) | 57.4 |
| Internal grease sleeve | X |
| O.L.D. (mm) | 135 |
| Offset (mm) | 6.6 |
| P.C.D. (mm) | 44/45 |
| QR_Skewer Length_168mm | X |
| QR_Skewer Length_173mm | X |
| QR_Skewer Length | 168 mm, 173 mm |
| QR lever_Color | Series color, - |
| Quick engagement | X (36 points/360°) |
| Seal_Freehub body | Contact |
| Seal_Hub | Labyrinth & Contact |
| Speeds | 8-10 speed MTB 11-speed |
| Spoke holes_32H | X |
| Spoke Holes | 32H |
