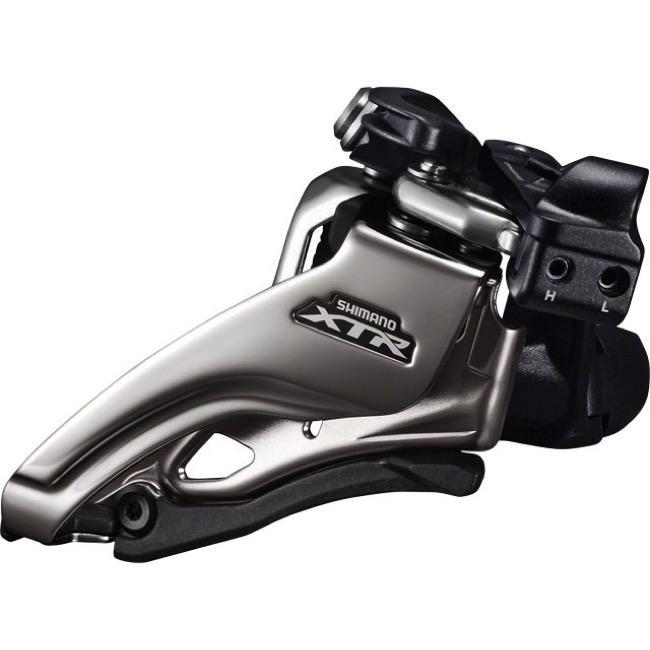

Shimano FD-M9020 XTR Front Derailleur - 11 Speed
IFDM9020LX6
IDE SWING Front Derailleur (2x11-speed)
PRODUCT SPECIFICATIONS: low clamp / side-swing / front-pull
| MODEL NO | FD-M9020-L |
|---|---|
| SERIES | SHIMANO XTR M9000 Series |
| Color | Series color, - |
| Average weight | 111 g |
| Action_Side Swing | X |
| Action | Side Swing |
| Angled clamp band design | X |
| Angled stroke adjust bolt | X |
| Cable route type_Front-Pull exclusive | X |
| Cable Route Type | Front-Pull |
| Chain line (mm) | 48.8 |
| Chain stay angle | 66-69 |
| Compatible chain | HG-X11 |
| Link bushings | 6 |
| Mount_Clamp Band_28.6mm | X (w/ S size adapter) |
| Mount_Clamp Band_31.8mm | X (w/ M size adapter) |
| Mount_Clamp Band_34.9mm | X |
| Speeds_Front | 2 |
| Speeds_Rear | 11 |
| Top gear teeth | 34-38T |
| Total capacity | 10T |
| Compatible Clamp Band Size | 28.6mm, 31.8mm, 34.9mm |
