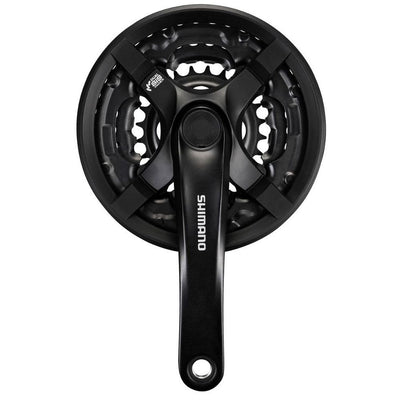

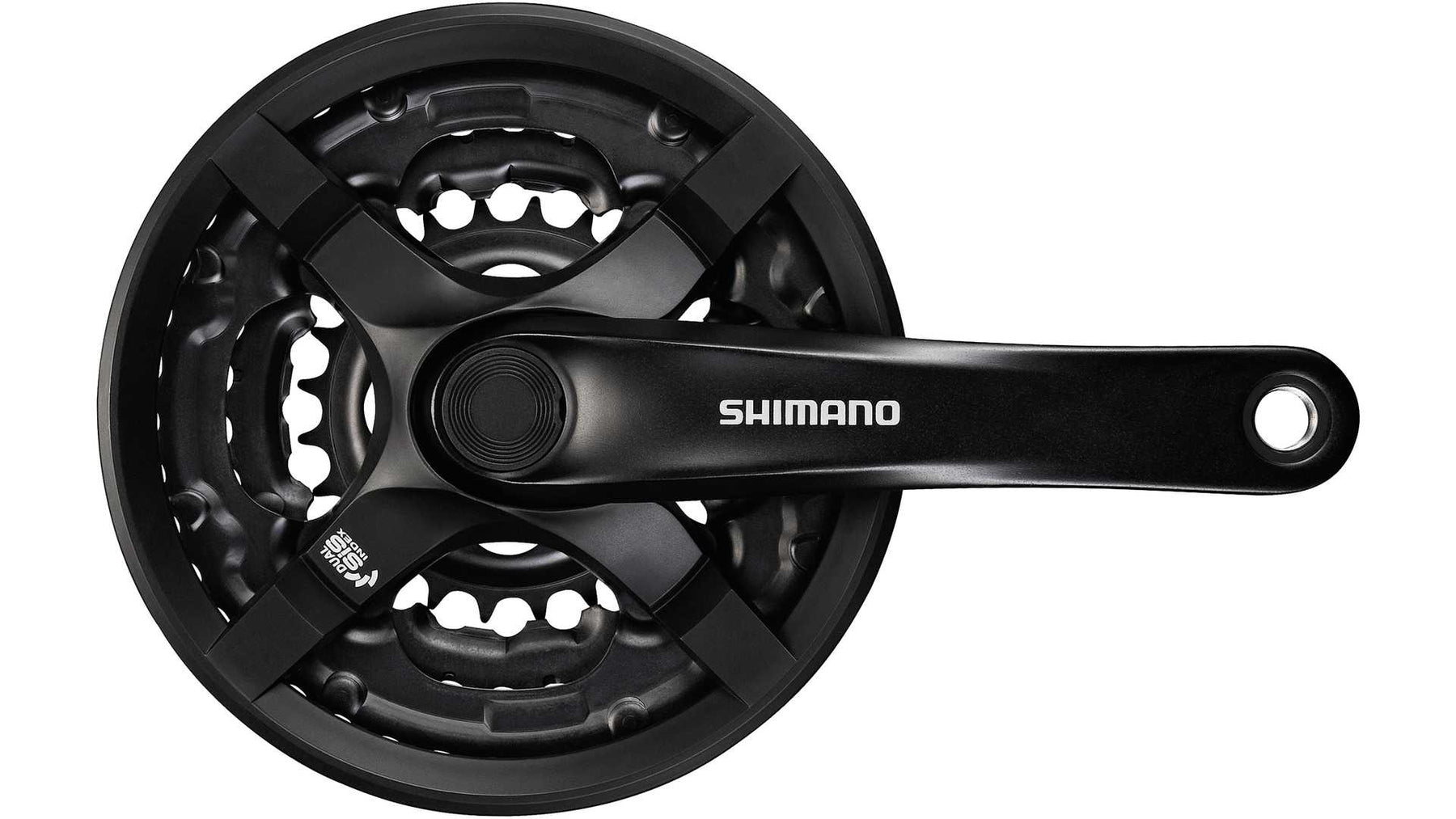

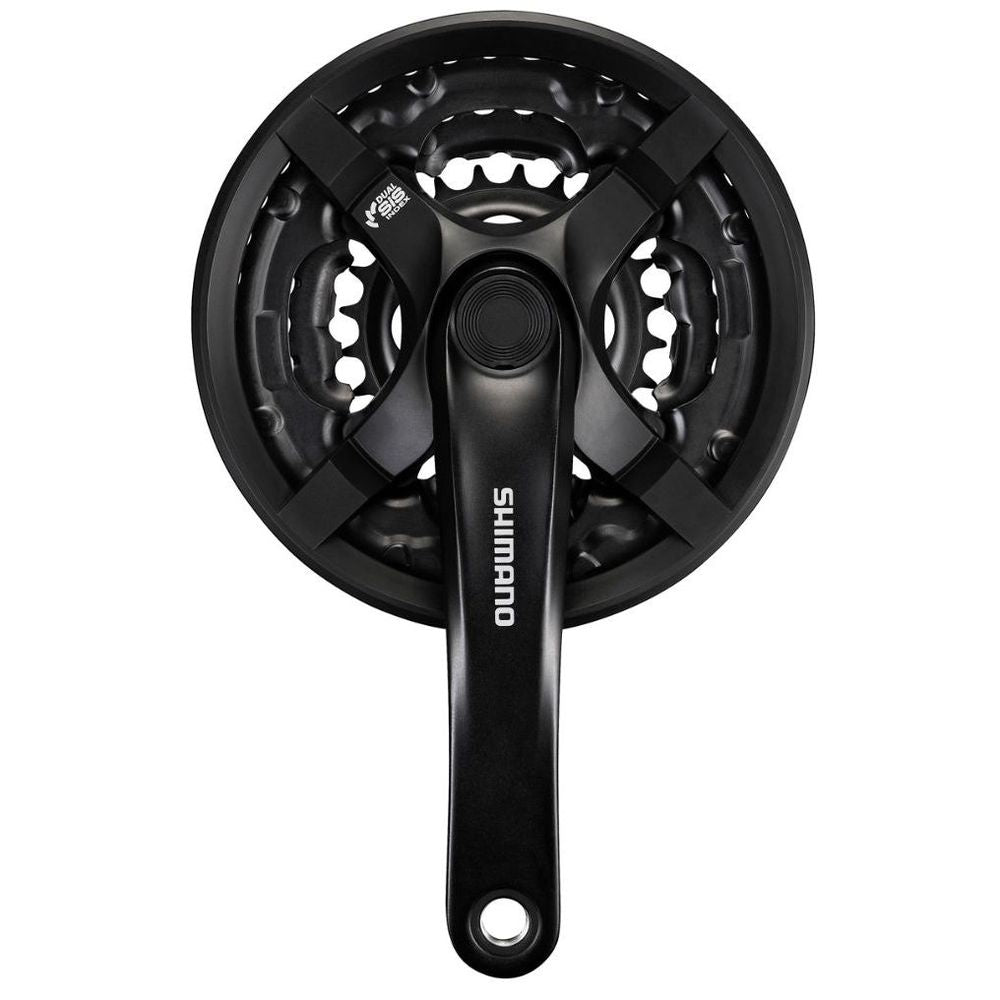

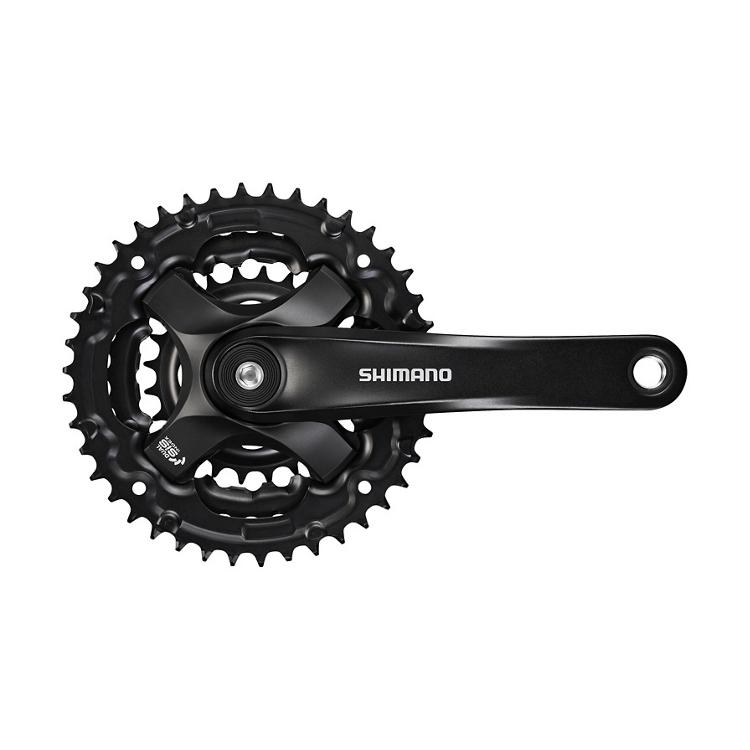

Shimano FC-TY501 Tourney Crankset - 3x6/7/8 Speed

badge
badge
badge

EFCTY501C244CLB

Regular priceRs. 1,390.00
/
Tax included. Shipping calculated at checkout.

Teeth Ratio
  • FC-TY501

    SHIMANO TOURNEY TY - MTB Crankset - 185.5 mm Q-Factor - 3x8/7/6-speed

    Compatible with a 3x8, 3x7, and 3x6 speed drivetrains, the SHIMANO TOURNEY TY crank delivers reliable, precise DUAL SIS shifting.

    • Light and reliable shifting
    • Precision indexed shifting
    • DUAL SIS
    • Versatile performance
    • Wide compatibility with multiple components
    • 8/7/6-speed compatible
    • 3 crank length specification available
    • Quick and precise assembly
    • Precise chain line control





    PRODUCT SPECIFICATIONS

    MODEL NO FC-TY501
    SERIES TOURNEY
    Color Black
    Remarks * Bottom bracket spec. for chain line 50 mm
    Axle length of BB-UN/ES (mm)_Threaded (chain case) D-NL K
    Axle length of BB-UN/ES (mm)_Threaded (normal) D-NL, *D-EL
    Chain case compatible
    Chain line (mm) 47.5/47.5 + t/50
    Chainring combination 48-38-28T | 42-34-24T
    Compatible bottom bracket type_Square
    Compatible chain HG/UG for 8/7/6-speed
    Crank fixing bolt included X (Option)
    Crank arm length (mm)_165
    Crank arm length (mm)_170
    Crank arm length (mm)_175
    Spider/Gear arms 4
    Optional chain guard_With chain guard X (integrated type)
    Optional chain guard_Without chain/bash guard
    P.C.D. (mm) Riveted
    Rear speeds 8/7/6
    Recommended bottom bracket_Threaded (chain case) BB-UN101-K, BB-UN300K
    Recommended bottom bracket_Threaded (normal) BB-UN101, BB-UN300
    Threaded bottom bracket shell width (mm)_68
    Threaded bottom bracket shell width (mm)_73
    Crank arm fixing bolt_With
    Q-factor (mm) 185.5
