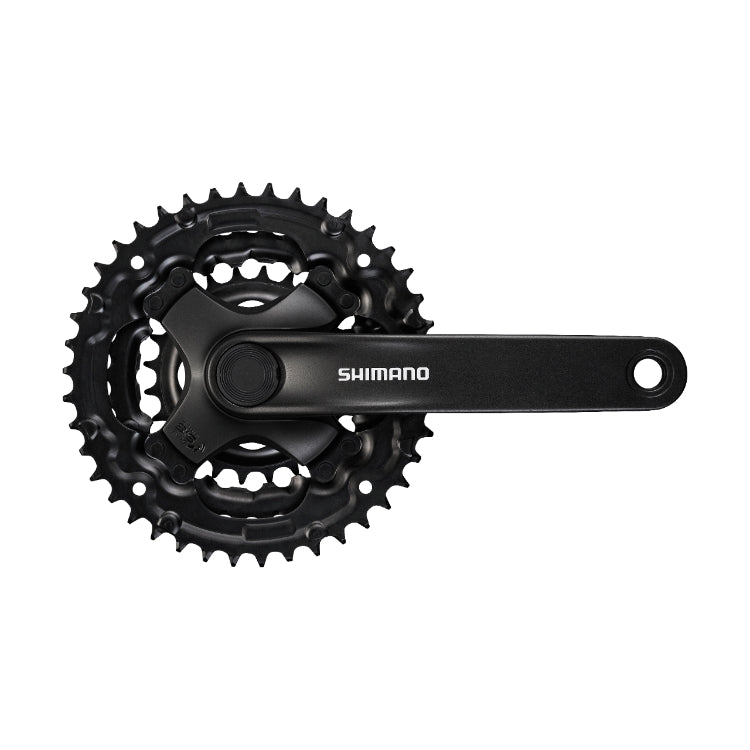

Shimano FC-TY301 Tourney Crankset - 6/7/8-Speed, 150MM
EFCTY301K244CLB
Description
Shimano Tourney TY MTB Crankset 181.5 mm Q-Factor 3x8/7/6-speed FC-TY301
Compatible with 3x8, 3x7, and 3x6 speed drivetrains, the SHIMANO TOURNEY TY crank delivers reliable, precise DUAL SIS shifting.
Features
- Light and reliable shifting
- Precision indexed shifting
- DUAL SIS
- Versatile performance
- Wide compatibility with multiple components
- Quick and precise assembly
Specifications
- Model No: FC-TY301
- Series: Tourney
- Color: Black
- Remarks: 150 mm spec. Available for 42-34-22T (Black) * Bottom bracket Spec for Chain line 50 mm
- Rear speeds: 8/7/6
- Compatible chain: HG 8/7/6-speed
- Chain line (mm): 47.5/47.5 + t/50
- O.L.D.|Thru (mm): 142
- O.L.D.|QR/Nut (mm): 135
- P.C.D. (mm): Riveted
- Spider/Gear arms: 4
- Chainring combination: 42-34-24T 48-38-28T
- Q-factor (mm): 181.5
- Crank arm length (mm)|170: ✔
- Crank arm length (mm)|175: ✔
- Optional chain guard|With chain guard: X (integrated type)
- Optional chain guard|Without chain/bash guard: ✔
- Compatible bottom bracket type|Square: ✔
- Recommended bottom bracket|Threaded (normal): BB-UN101, BB-UN300
- Recommended bottom bracket|Threaded (chain case): BB-UN101-K, BB-UN300K
- Axle length of BB-UN/ES (mm)|Threaded (normal): D-NL, *D-EL
- Axle length of BB-UN/ES (mm)|Threaded (chain case): D-NL K
- Threaded bottom bracket shell width (mm)|68: ✔
- Threaded bottom bracket shell width (mm)|73: ✔
- Chain case compatible: ✔
