Shimano Deore FC-M4100 Crankset -
Shimano Deore FC-M4100 Crankset -
Shimano Deore FC-M4100 Crankset -
Shimano Deore FC-M4100 Crankset -

Shimano Deore FC-M4100 Crankset


Regular priceRs. 4,620.00
Tax included. Shipping calculated at checkout.

Crank Arm Length

Shimano Deore FC-M4100-2 crankset - for 10-speed drivetrains

The Shimano crankset FC-M4100-2 from the Deore series are a cranks with two chainrings for 10-speed drivetrains. It is suitable for both MTB and City & Touring use. The chainrings are mounted via a conventional 4-arm spider. At 48.8 mm, the chainline, i.e. the distance from the frame to the centre between the chainrings, is in the standard range, which is why the crank is compatible with 142 mm over locknut dimensions. The 2-piece construction provides a balanced ratio of stiffness to weight.


Application: All Mountain, City & Touring
Compatibility: Shimano 2x10-speed
Chainring Mount: 96/64 mm pitch circle diameter, 4-arm asymmetrical

Technical Information:

Series: Deore M4100
Crankarm Material: aluminium
Chainring Material: steel
Axle Material: steel
Gradation: 26-36
Crankarm Length: 170.0 mm, 175.0 mm
Chainline: 48.8 mm
Q-Factor: 178.5 mm
Axle Diameter: 24 mm
Compatible BSA Shell Width: 68 mm, 73 mm
Recommended Bottom Bracket: SM-BB52 or BB-MT500-PA Pressfit Hollowtech II (not incl.)
Recommended Chain: HG-X 10-speed (e.g. CN-HG95CN-HG54)


- stiff, lightweight 2-piece cranks with efficient power transfer
- suitable for 135 and 142 mm rear over locknut dimensions
- painted crankarms and chainrings
- stainless steel hardware

Manufacturer Part Numbers:

170.0 mm: EFCM41002CX66
175.0 mm: EFCM41002EX66

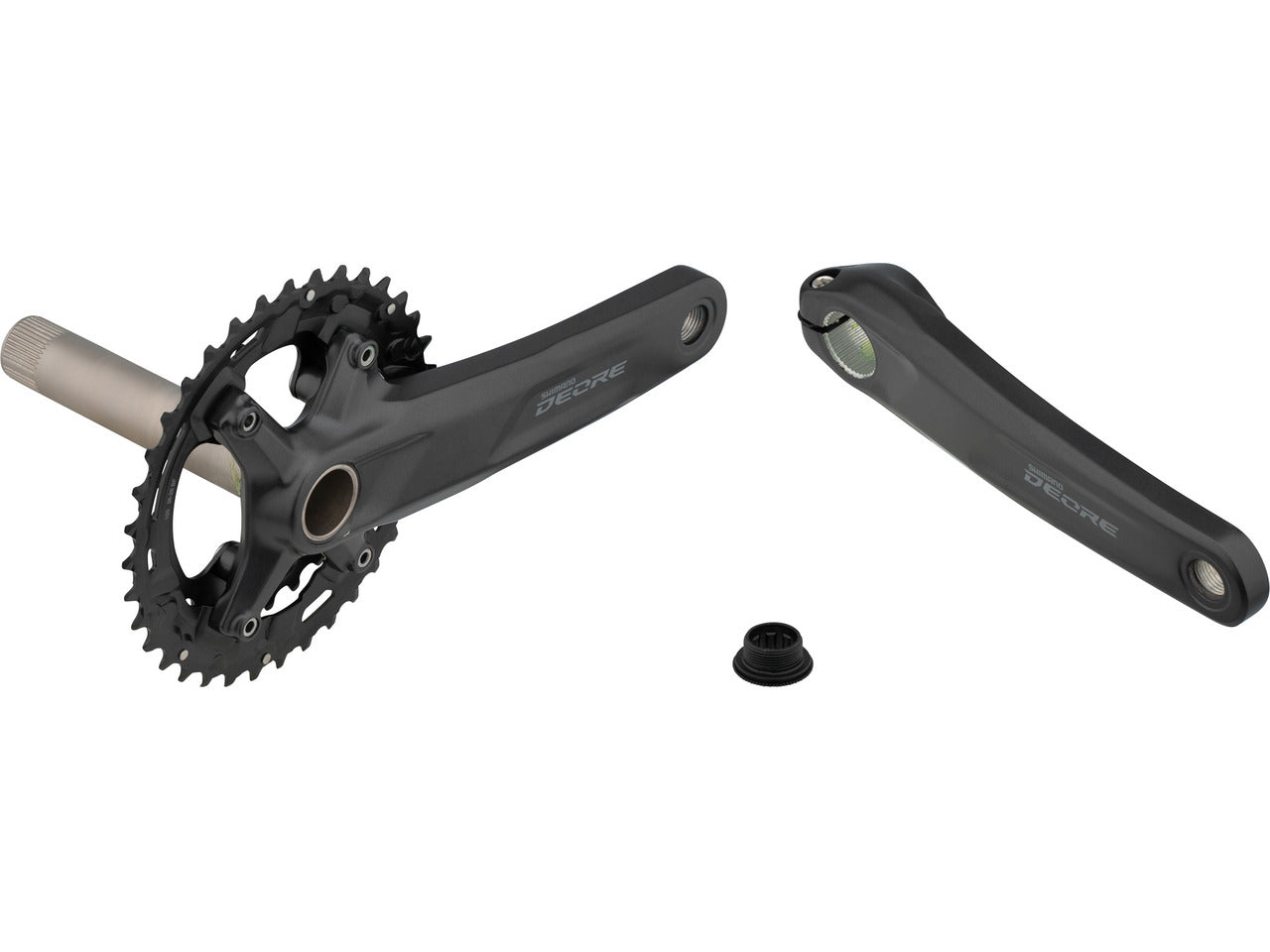

- 1 x Shimano Deore FC-M4100-2 crankset (26-36 tooth)
- 1 x Shimano crank bolt

Customer Reviews

Based on 6 reviews
Cycle Sport

Shimano Deore FC-M4100 Crankset

Taher Rassiwala
Performed just as what I expected!

The Crank is just natural, awestruck with its performance.

Lou Banday
Great crank !

The chank build quality and paint job is really good and thick , it has 36 and 26 teeth chain rings, the crank is solid and makes you feel connected with the bike,also compatible with prowheel hollowtech bb, only a bit on the heavier side .

Karan Kapoor
Be specific b4 installation

I have these as a upgrade to lighten my bike,crank is gud ,no doubt about it,,but the bb keep getting broken,every month i have to change my bb,the creech sound came after 15-20 days ,i tried regreasing but that didnt help. , no idea what is wrong as this crank supports sm bb 500,which keeps on failing

gautam shetty

Shimano Deore FC-M4100 Crankset

Sahil Satuny

Shimano Deore FC-M4100 Crankset
