Shimano Alivio FD-M3100 3-speed Front Derailleur


Regular priceRs. 1,500.00
Tax included. Shipping calculated at checkout.

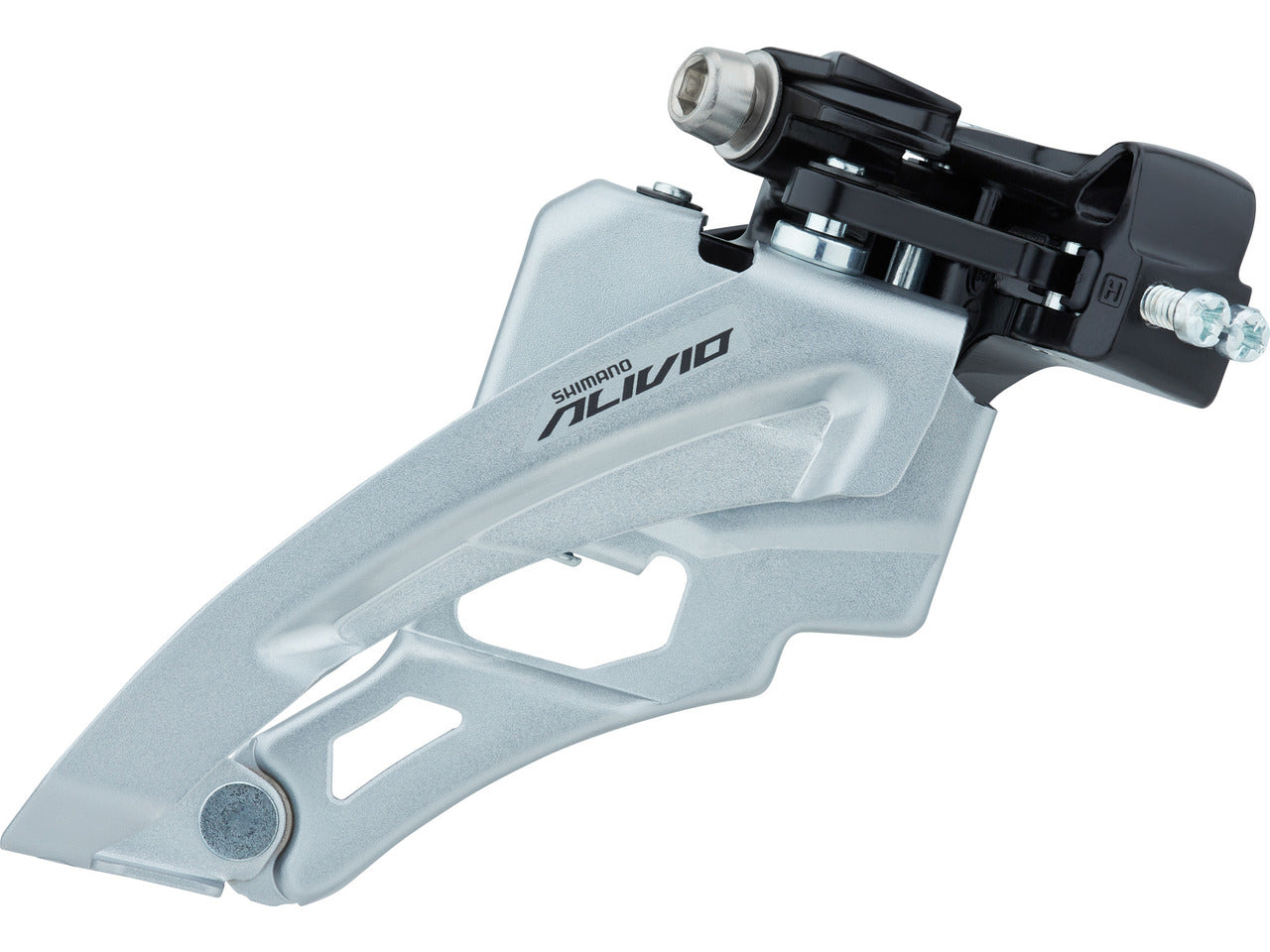

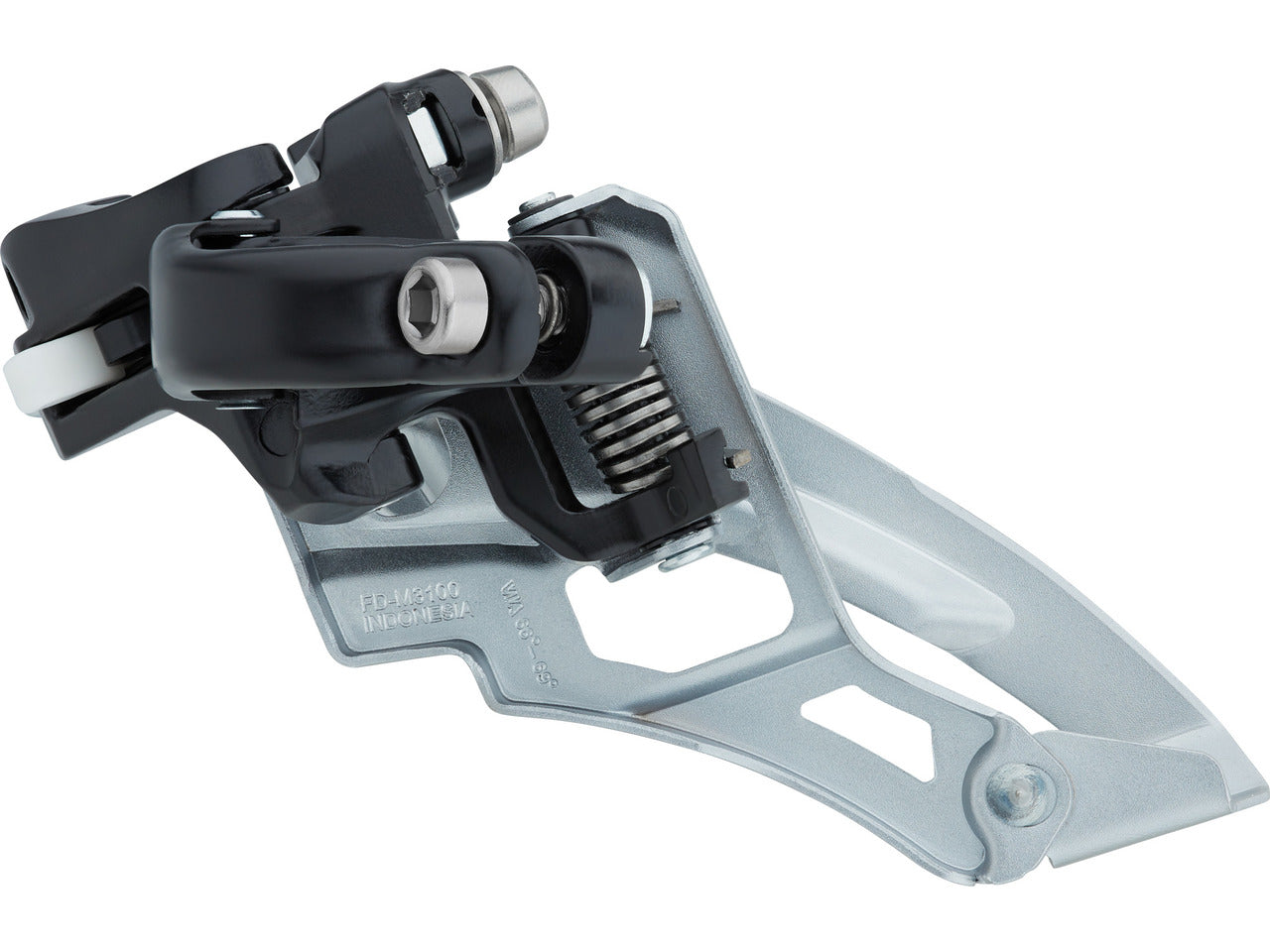

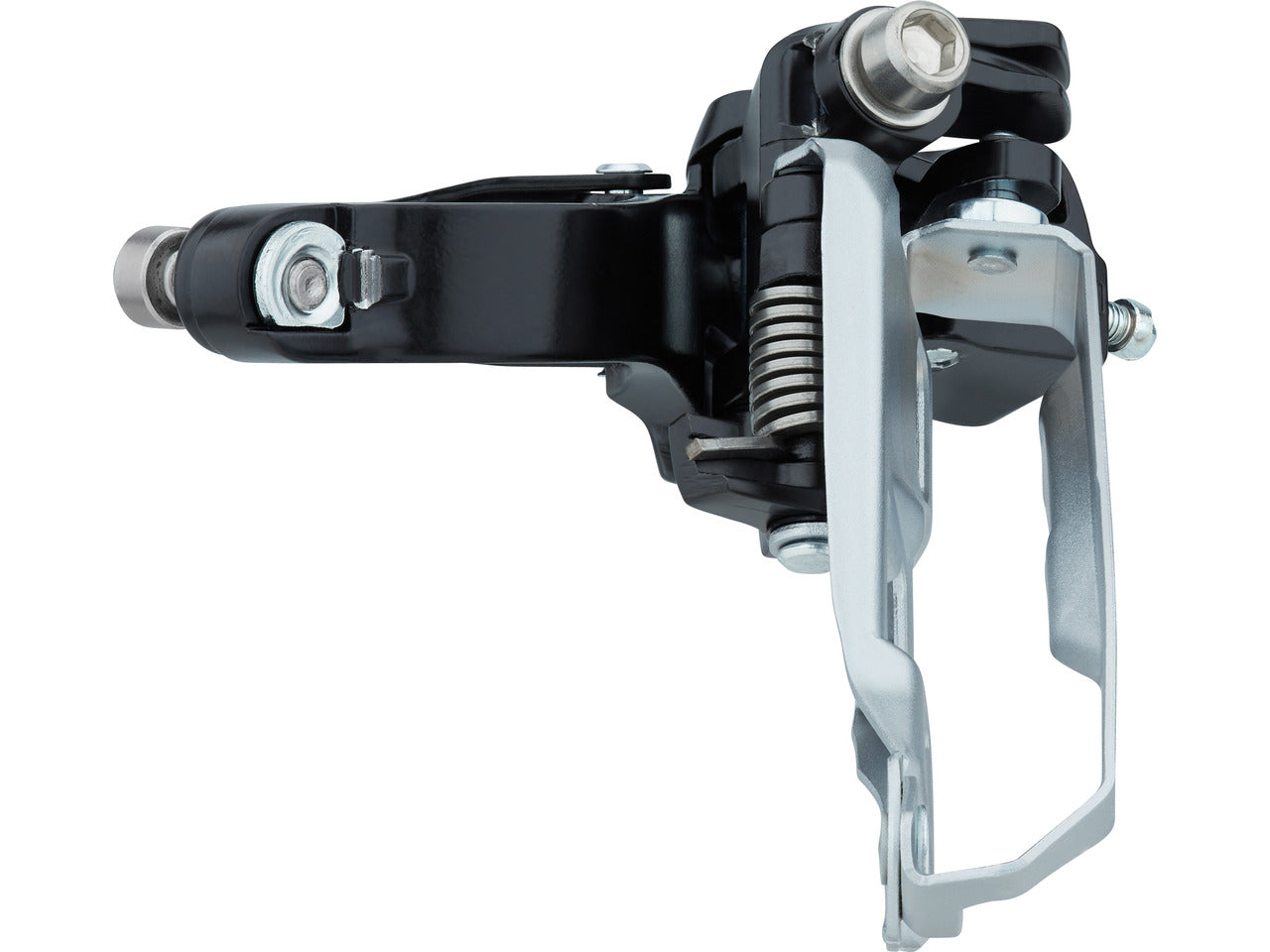

The Alivio Front Derailleur FD-M3100 by Shimano - Side-Swing for 3x9-speed

Shimano FD-M3100 is a front derailleur from the Alivio series for mountain bikes with 3x9-speed drivetrain. It has been equipped with the Side-Swing construction, which provides improved cable routing and smooth shifting performance with lower operating forces. In addition, there is the increased capacity of 18 teeth, which allows large chainrings with 40 teeth, and the increased clearance, which makes this front derailleur suitable for modern bikes with wide tyres, full suspension and short chainstays. FD-M3100 is made of steel and weight-saving aluminium and is attached to the frame via a medium-height clamp.


Series: Alivio M3100
Application: All Mountain, Cross Country
Gearing: 3x (combined w/ 9-speed)
Chainstay Angle: 66 - 69°
Chainline: 50 mm
Chainring Size (max.): 40 teeth
Capacity: 18 teeth
Difference Between Large & Middle Chainring: 10 teeth
Cable Routing: front pull
Movement: Side-Swing
Attachment: Mid Clamp
Clamp Diameter: 34.9 mm w/ adapter 31.8 mm / 28.6 mm
Compatibility: 9-speed chains (e.g. CN-HG53)

Technical Information:

Outer Body Material: steel
Inner Body Material: aluminium
Cage Material: steel


MTB 3x9-speed:
Shifter: SL-M590-L, SL-M4000-L, SL-M3100-L, SL-M3000-L, SL-M2010-L, SL-M2000-L, SL-M370-L, ST-M4050-L, ST-M3050-L, ST-M4000-L, ST-T4000-L, ST-T3000-L, ST-M370-L, ST-EF65-L2, ST-EF65-L4, ST-EF510-L2A, ST-EF500-L2A, ST-EF500-L4A, ST-EF505-L
Cranks: FC-M4050, FC-MT300, FC-MT210-3, FC-MT101, FC-M4000, FC-M3000-8, FC-M3000, FC-M2000, FC-MT100 (22-30-40 t)
Chain: CN-HG93, CN-HG53
Tyre Width: up to 2.3"


- improved cable routing, smooth running and problem-free operation thanks to Side-Swing
- extra large capacity for 3-speed cranksets with 22-30-40 t
- smooth, quiet, powerful shifting
- greater clearance reduces chain dragging on full-suspension bikes
- compatible with wide rims and tyres
- 4 joint bushings
- varnished parallelogram, lightly chrome-plated

Manufacturer Number:



- 1 x Shimano Alivio FD-M3100 front derailleur
