Specifications:
Application: Cross Country, All MountainWheel Size: 27.5" (650B)
Suspension Type: air
Travel: 100 mm, 120 mm
Steerer Tube: 1 1/8"
Axle Type: quick release (9 x 100 mm)
Brake Mount: disc PM6 (direct mount 160 mm)
Technical Information:
Offset: 42 mmSteerer Tube Length: 265 mm
Steerer Tube Diameter (Stem): 28.6 mm
Steerer Tube Diameter (Crown Race): 30 mm
Axle to Crown: 490 mm (100 mm), 510 mm (120 mm)
Over Locknut Dimension: 100 mm
Stanchion Tube Diameter: 30 mm
Steerer Tube Material: aluminium
Crown Material: aluminium
Stanchion Tube Material: steel
Lower Tube Material: magnesium
Adjustment Options:
Compression: yesRebound: yes
Suspension Stiffness: air pressure adjust
Remote: yes (PopLoc)
Travel Adjustment: no
Approved For:
Tyre Size (max.): 27.5 x 2.5"Note: For individual tyres, the tyre clearance must be checked with the fork fully compressed. It should be at least 6 mm measured from the fork crown.
Rotor Size (max.): 185 mm
Features:
- TurnKey lockout damping- external rebound adjustment
- right PopLoc remote
Technology:
TurnKey™:This exclusive technology acts as your personal bodyguard. When you ride over a large rock with a locked suspension fork, TurnKey™'s patented blow-off design absorbs the unexpected blow in an instant. That's pretty honourable, when you think about it. Compatible with PushLoc and PopLoc remote controls.
Solo Air™:
Solo Air™ is like a Buddhist monk. The enlightened design allows the positive and negative air chambers of your suspension fork to be filled with air at the same time using only one Schrader valve. So there is a perfect balance between them, like Yin and Yang. For a comfortable and predictable ride, you can adjust the easiest suspension fork on the market in seconds.
Models:
100 mm / 1 1/8 / 9 x 100 mm / 42 mm:Travel: 100 mm
Steerer Tube: 1 1/8"
Steerer Tube Diameter (Stem): 28.6 mm
Offset: 42 mm
Brake Mount: disc PM6 (direct mount 160 mm)
Axle Type: quick release (9 x 100 mm)
Manufacturer Number: 00.4020.555.012
120 mm / 1 1/8 / 9 x 100 mm / 42 mm:
Travel: 120 mm
Steerer Tube: 1 1/8"
Steerer Tube Diameter (Stem): 28.6 mm
Offset: 42 mm
Brake Mount: disc PM6 (direct mount 160 mm)
Axle Type: quick release (9 x 100 mm)
Manufacturer Number: 00.4020.555.013
Contents:

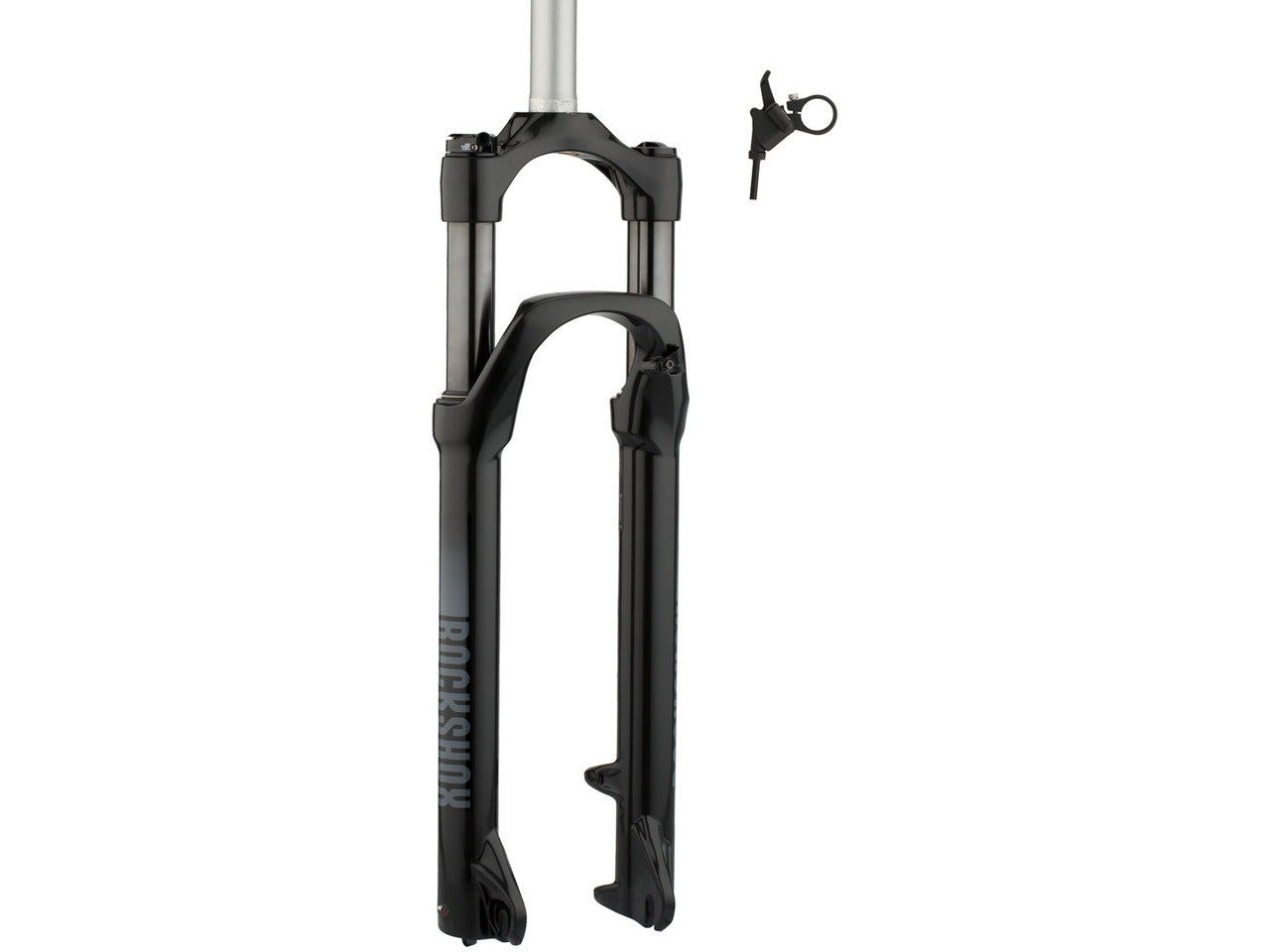

- 1 x RockShox Judy Silver TK Solo Air suspension fork- 1 x RockShox PopLoc handlebar remote (right)
- 1 x star nut
