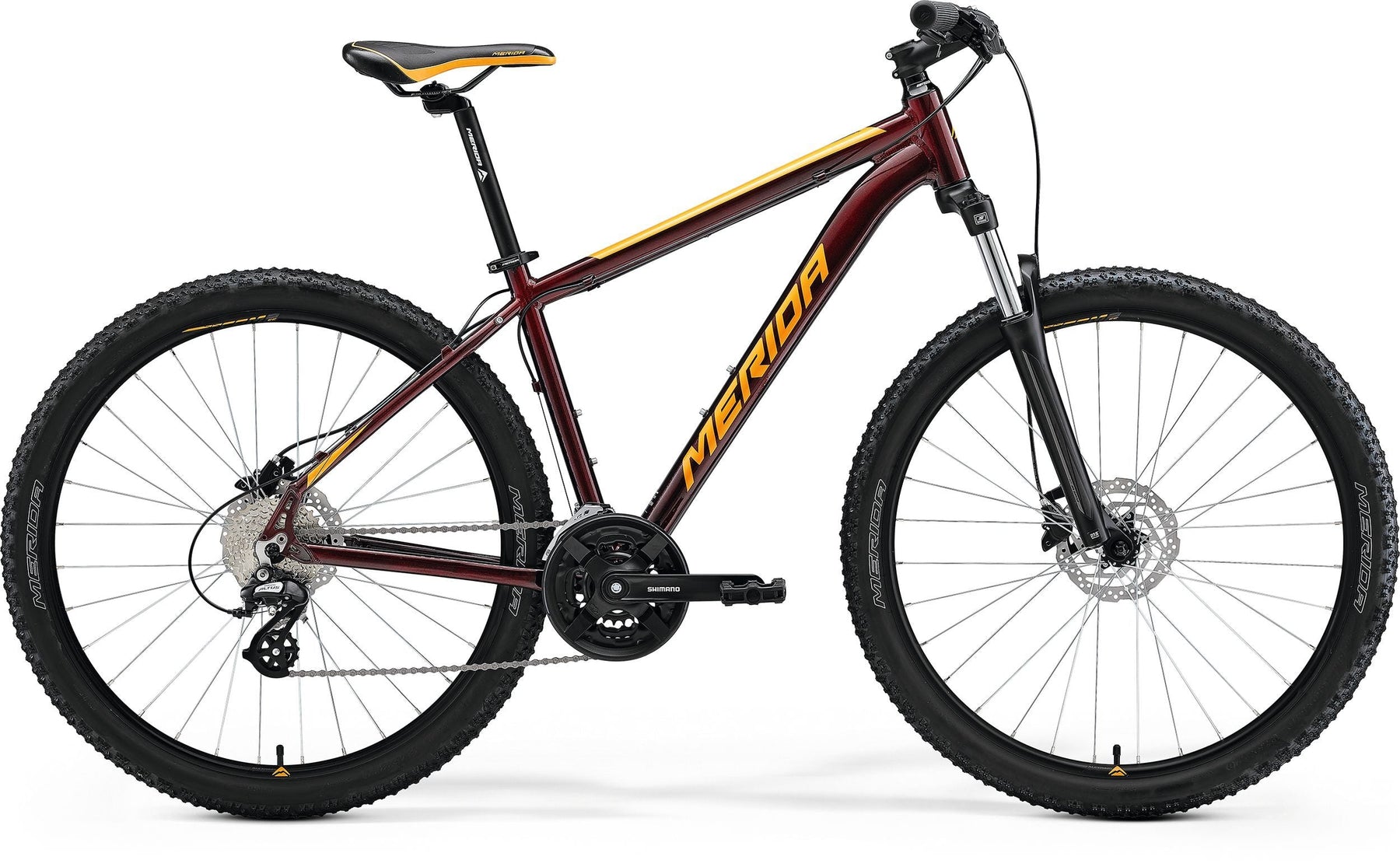

Merida Big Seven 15 Bike
A62211A01562
Product Description
Our start into the world of 27.5" hardtails. The larger wheels combined with the 100 mm suspension fork offer additional comfort and control, and the chosen components help tackle your next off-road adventure.
Entry-level 27.5" wheeled hardtail built around our double butted aluminium frame with a more comfort inspired geometry. The 27.5" wheels help to cover ground efficiently and in perfect control and impress with easy acceleration and nimble riding characteristics. The SR Suntour fork helps to improve the comfort even further, and the broad gear range of the triple chainring Shimano drivetrain let you conquer even the steepest hills with ease.
The alternative to our BIG.NINE 29er hardtails for riders who prefer the smaller 27.5"" wheels. The latest aluminium frame generation of our BIG.SEVEN TFS and SPEED mountain bikes featuring slim tube shapes create a new look and a more relaxed geometry. A shorter top tube and a higher head tube offering a more upright riding position and enhanced trail visibility. Similarly to our 29er wheeled BIG.NINE range, our classic BIG.SEVEN hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we could gain in almost half a century of bike production and manufacturing. They symbolise the symbiosis between modern frame technology, attention to detail and craftsmanship 'Made in Taiwan'.
- Double butted aluminium frame with 27.5" wheels
- Less aggressive and more upright geometry for maximum control and comfort
- SR Suntour 100 mm travel suspension fork
- Shimano 8-speed drivetrain with triple chainring setup
- Hydraulic disc brakes
SPECIFICATIONS
FRAME BIG.SEVEN SPEED
- material: aluminium
- 27.5x2.25" max. wheelsize
- 135x9mm axle standard
- BSA bottom bracket standard
FRAME SIZE XS, S, M, L COLOR MATT DARK SILVER (SILVER) FORK SR Suntour XCT30
- Coil
- 100mm suspension travel
- 27.5x2.25" max. wheelsize
BRAKES Power DS100
- 2 piston
- hydraulic disc brake
ROTORS Shimano RT10
- 160 mm
HEADSET FSA NO.10 HANDLEBAR MERIDA CC
- material: aluminium
- 690mm width
- 15mm rise
HANDLEBAR STEM MERIDA CC
- material: aluminium
- 31.8mm diameter
- 6° stem angle
- 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL
GRIP MERIDA EC DERAILLEUR (F) Shimano FD-TY700 DERAILLEUR (R) Shimano RD-M310 SHIFTERS Micro Shift TS39-L / Micro Shift TS39-8R SEAT POST MERIDA CC
- material: aluminium
- 30.9mm diameter
- 15mm setback
SEAT CLAMP MERIDA COMP QR SADDLE MERIDA SPORT COMFORT PEDAL VP VPE-891 CHAIN SUNRACE M84 CRANK Shimano TY301
- 42-34-24 teeth
- 170 mm-S, 175 mm-M/XXL
FREEWHEEL SUNRACE CSM668
- 11-32 teeth
- 8 speed
BOTTOM BRAKET FSA TH-7420ST-W, CARTRIDGE BEARING HUBS Shimano TX505
- 100x9mm width front hub
- 32 spoke holes
- Centerlock
- 135x9mm width rear hub
- 32 spoke holes
- Centerlock
RIM MERIDA CC
- 17mm inner width
- material: aluminium
TYRE FRONT MERIDA K1080
- 27.5x2.2"
- wire
TYRE REAR MERIDA K1080
- 27.5x2.2"
- wire
SPOKES Black steel MAX. WEIGHT 135 kg
GEOMETRIES
| FRAME SIZE | XS | S | M | L |
| TYRE SIZES | 27.5" | 27.5" | 27.5" | 27.5" |
| ST SEAT TUBE [MM] | 343 | 381 | 432 | 470 |
| TT TOP TUBE [MM] | 550 | 560 | 575 | 585 |
| CS CHAIN STAY LENGTH [MM] | 430 | 430 | 430 | 430 |
| HTA HEAD TUBE ANGLE [°] | 70 | 70 | 70.5 | 70.5 |
| STA SEAT TUBE ANGLE [°] | 73.5 | 73.5 | 73 | 73 |
| BD BOTTOM BRACKED DROP [MM] | 53 | 53 | 53 | 53 |
| HT HEAD TUBE [MM] | 100 | 105 | 115 | 125 |
| FL FORK LENGTH [MM] | 490 | 490 | 490 | 490 |
| R REACH [MM] | 374 | 383 | 389 | 396 |
| S STACK [MM] | 593 | 598 | 609 | 619 |
| WB WHEEL BASE [MM] | 1042 | 1053 | 1057 | 1068 |
| SH STAND OVER HEIGHT [MM] | 650 | 686 | 731 | 764 |
TECHNOLOGIES
RACELITE 61 ALUMINIUM
We use a minimum of 6061 aluminium. The pay back is that it’s possible to make lighter and more advanced frames. We use an additional heat treatment and double-butted wall thicknesses to produce light and stiff frames.
TFS - TECHNO FORMING SYSTEM
Technoforming is a mechanical forming process, shaping the tubes by using negative moulds, at times combined with an internal metal core.
F-MOUNT
‘F-Mount’ equipped bikes have integrated fittings for mud guards (some bikes require model specific mud guards), making fitting fast and simple.
K-MOUNT
Integrated mount on the chainstay to fit a MERIDA kickstand (or any commercial kickstand).
C-MOUNT
‘C-Mount’ equipped bikes have the fixing points for a rear rack already integrated (some bikes require model specific rear rack), making fitting fast, simple and reliable.
