Marin DSX 2 Bicycle - Brown
732423002
Product Description
LONG DISTANCE MIXED SURFACE COMMUTING
GRAVEL RIDING
ADVENTURE ON AND OFF-ROAD RIDING

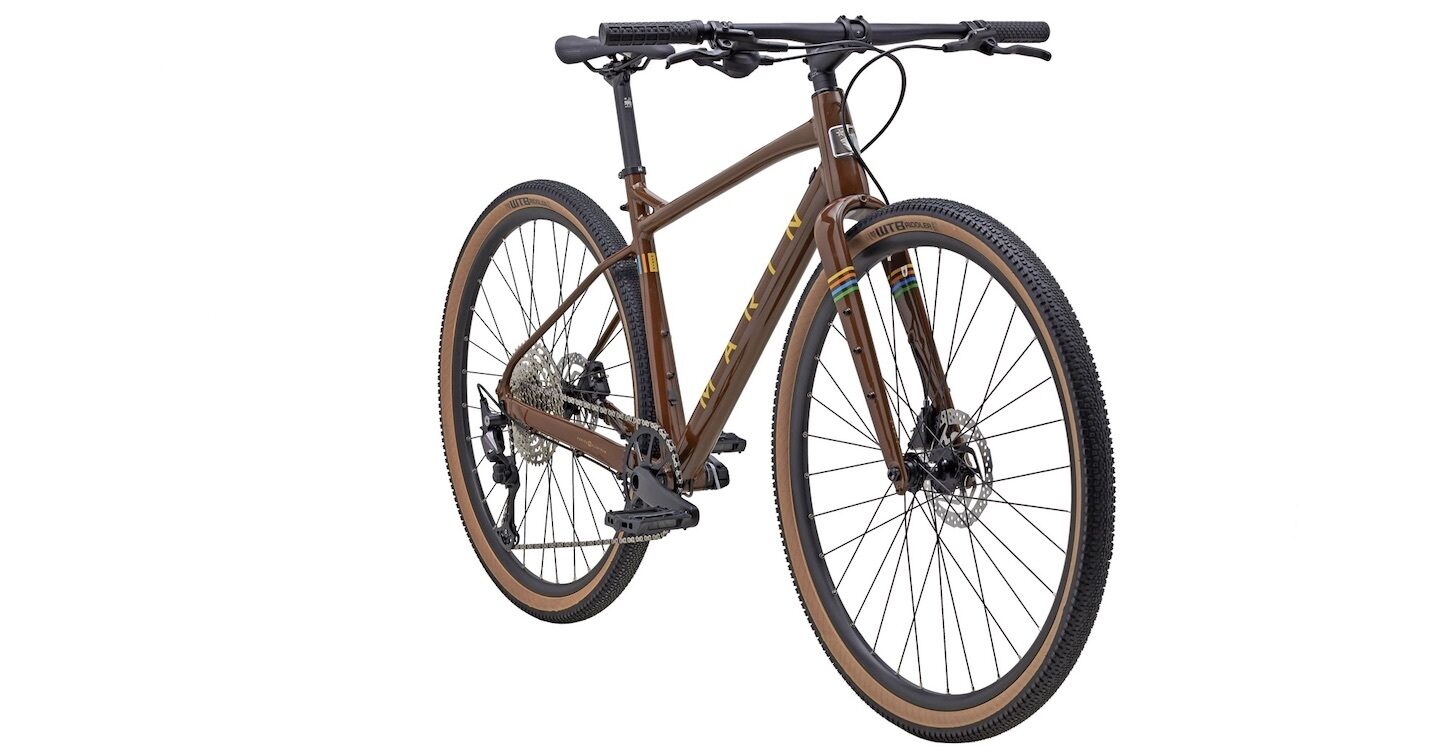

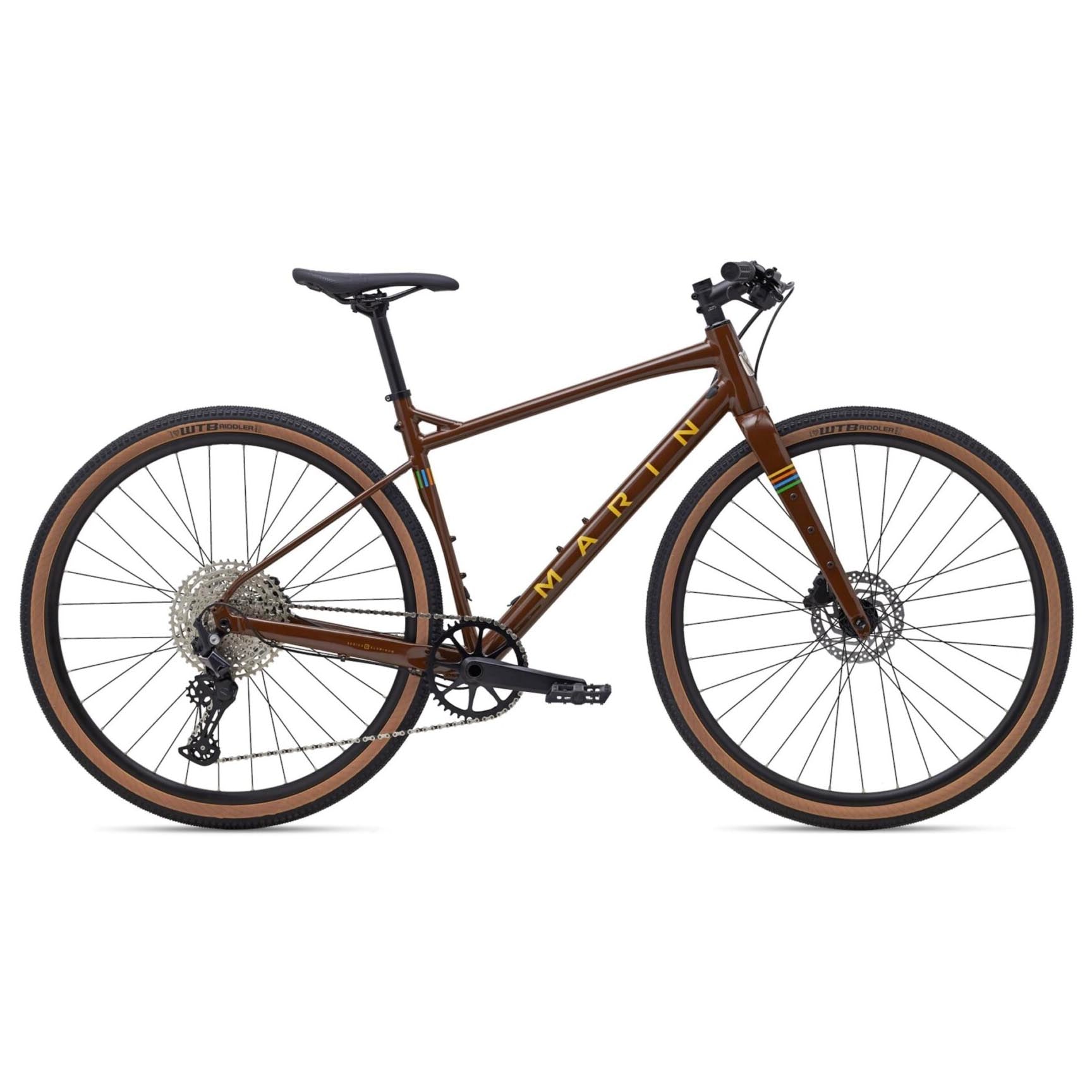

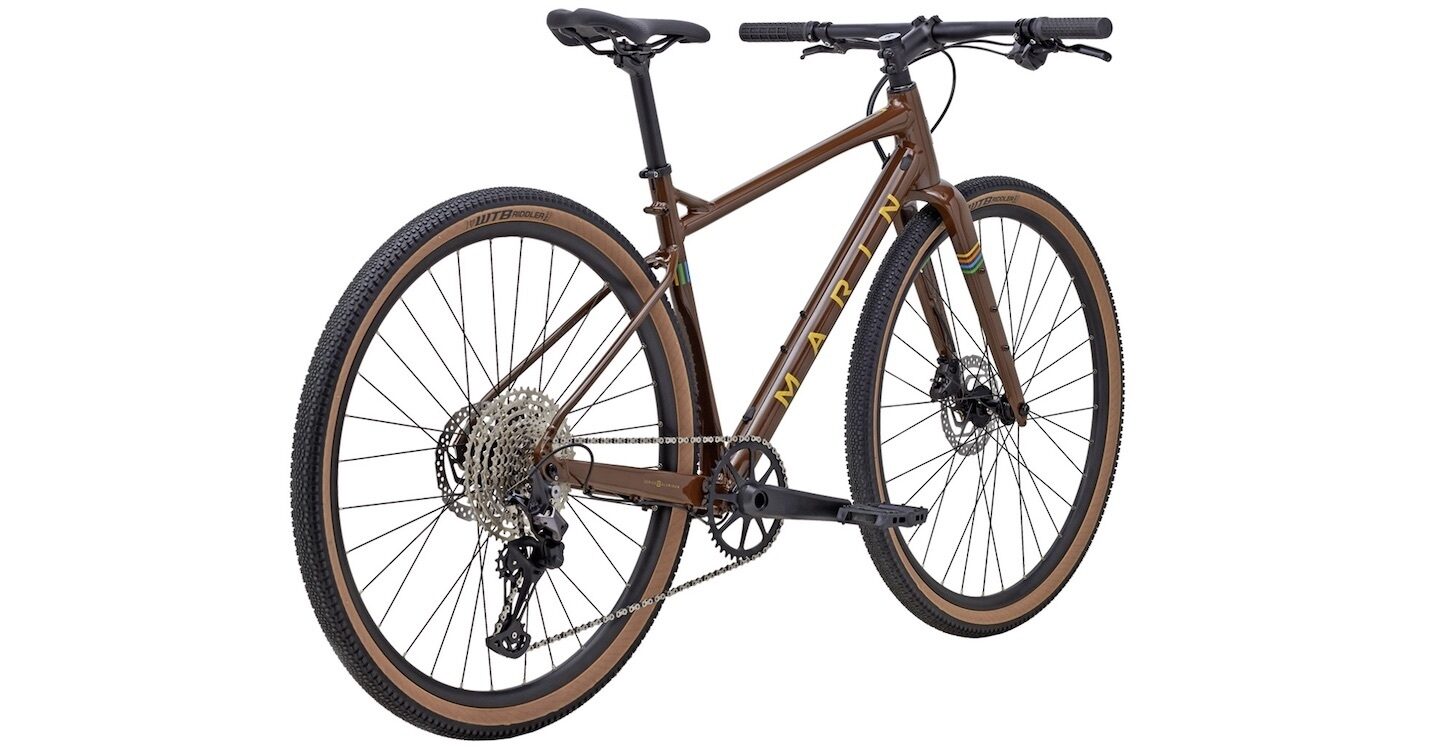

The Marin DSX 2 is the top-dog of the rigid-forked DSX pack, built around a Series 3 aluminum frame and a lightweight, carbon fork that’s packed with mounting points for bikepacking gear. There’s also a 12-speed 1X Shimano Deore drivetrain, WTB Riddler tires, Shimano hydraulic brakes and plenty of reliable Marin components.
Key upgrades over the DSX 1:
- Shimano Deore 6100 1x12 drivetrain
- Shimano hydraulic disc brakes
SPECIFICATIONS
-
FRAME

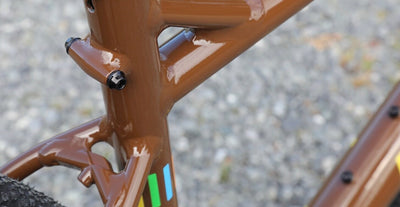

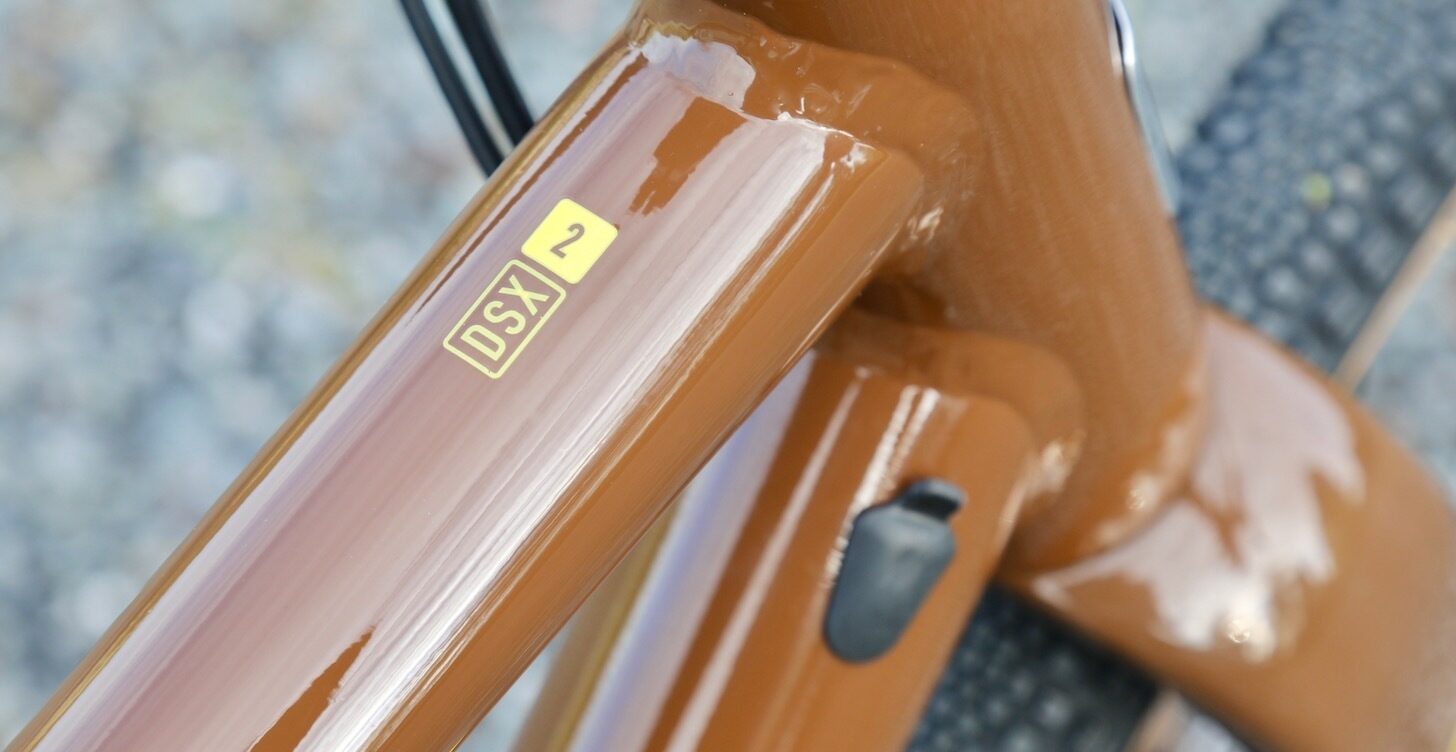

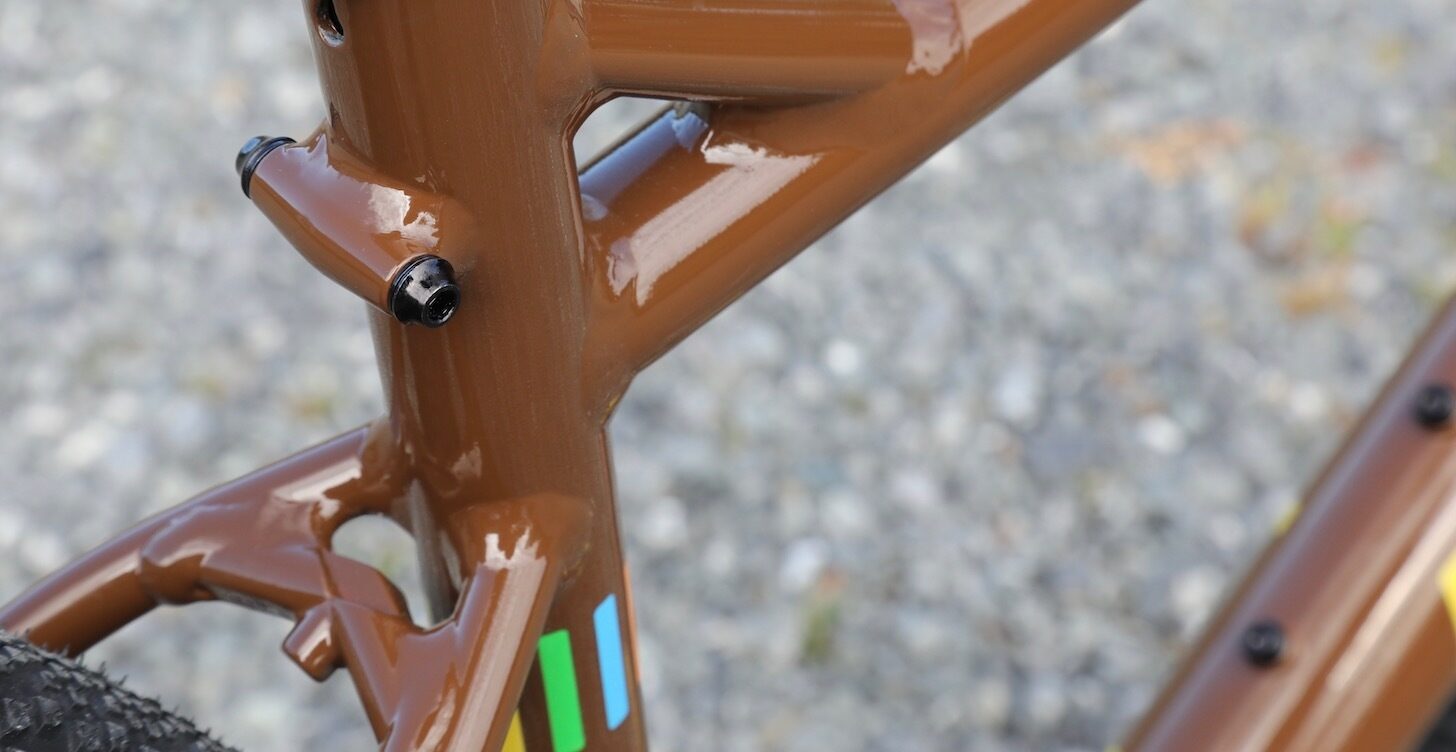

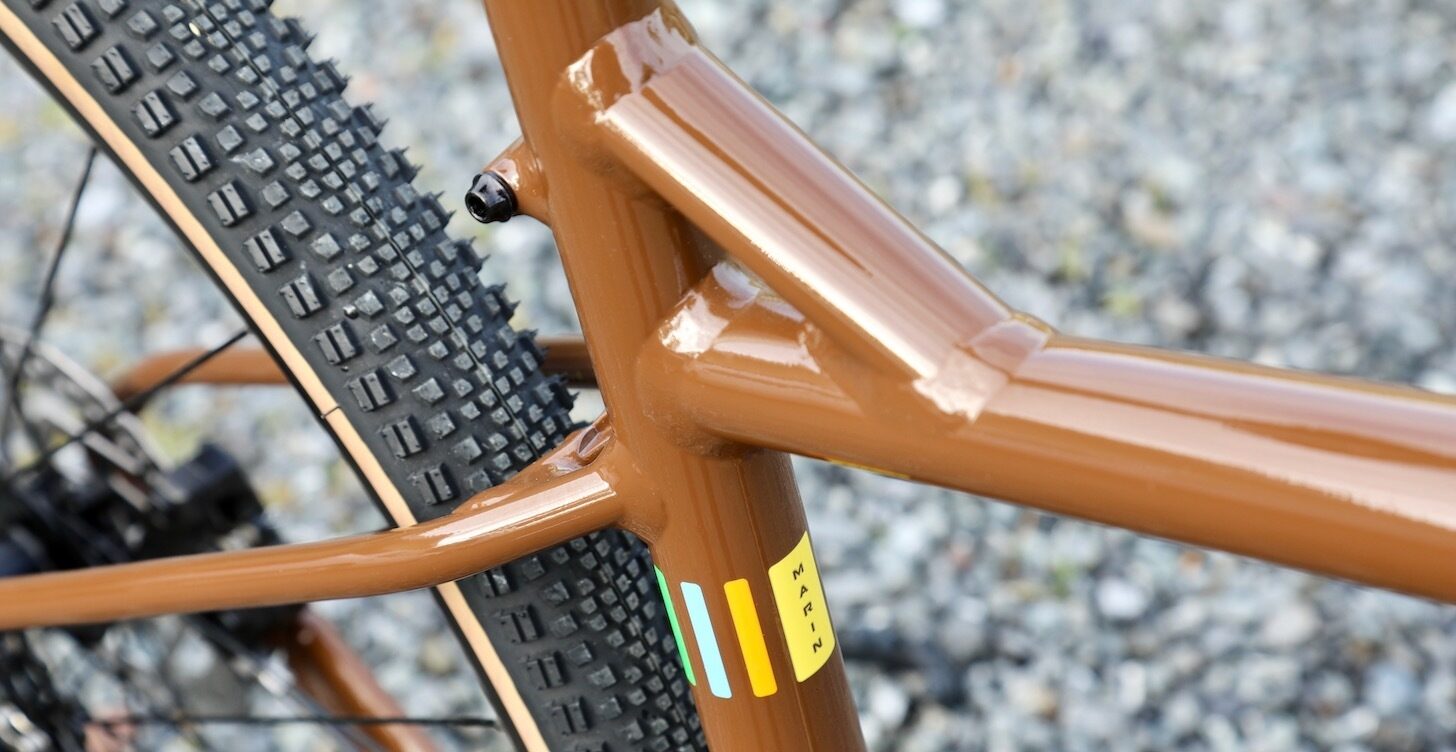

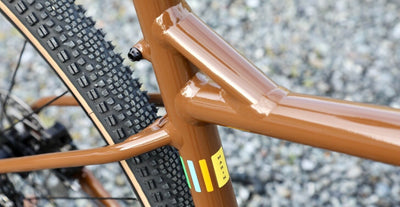

Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
-
FORK

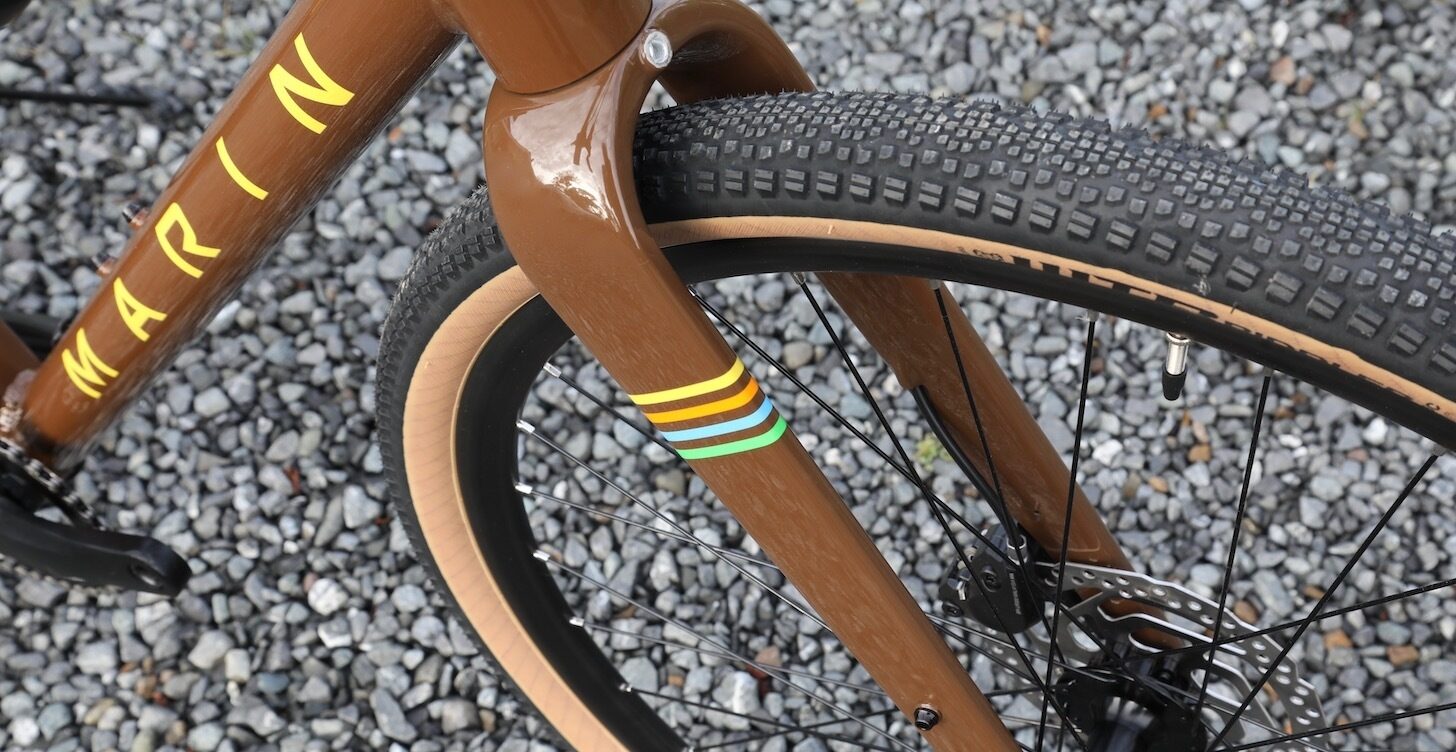

Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
-
RIMS
Marin Aluminum Double Wall, 21mm Inner, Disc Specific
-
HUB, REAR
Forged Aluminum, 142x12mm, Centerlock Disc, 32H
-
HUB, FRONT
Forged Aluminum, 100x12mm, Centerlock, 32H
-
SPOKE, NIPPLES
14g Black Stainless Steel
-
TIRES
WTB Riddler, 700Cx45mm
-
DERAILLEUR, REAR
Shimano Deore 12-Speed
-
DERAILLEUR, FRONT
-
-
SHIFT LEVER
Shimano Deore 12-Speed
-
CRANKSET
Forged Aluminum, 42T Steel Narrow Wide Chainring
-
BOTTOM BRACKET
Sealed Outboard Bearing
-
CHAIN
KMC X12
-
CASSETTE
SunRace 12-speed, 11-51
-
BRAKE, FRONT
Shimano MT201/UR300 Flat Mount Hydraulic Disc, 160mm Rotor
-

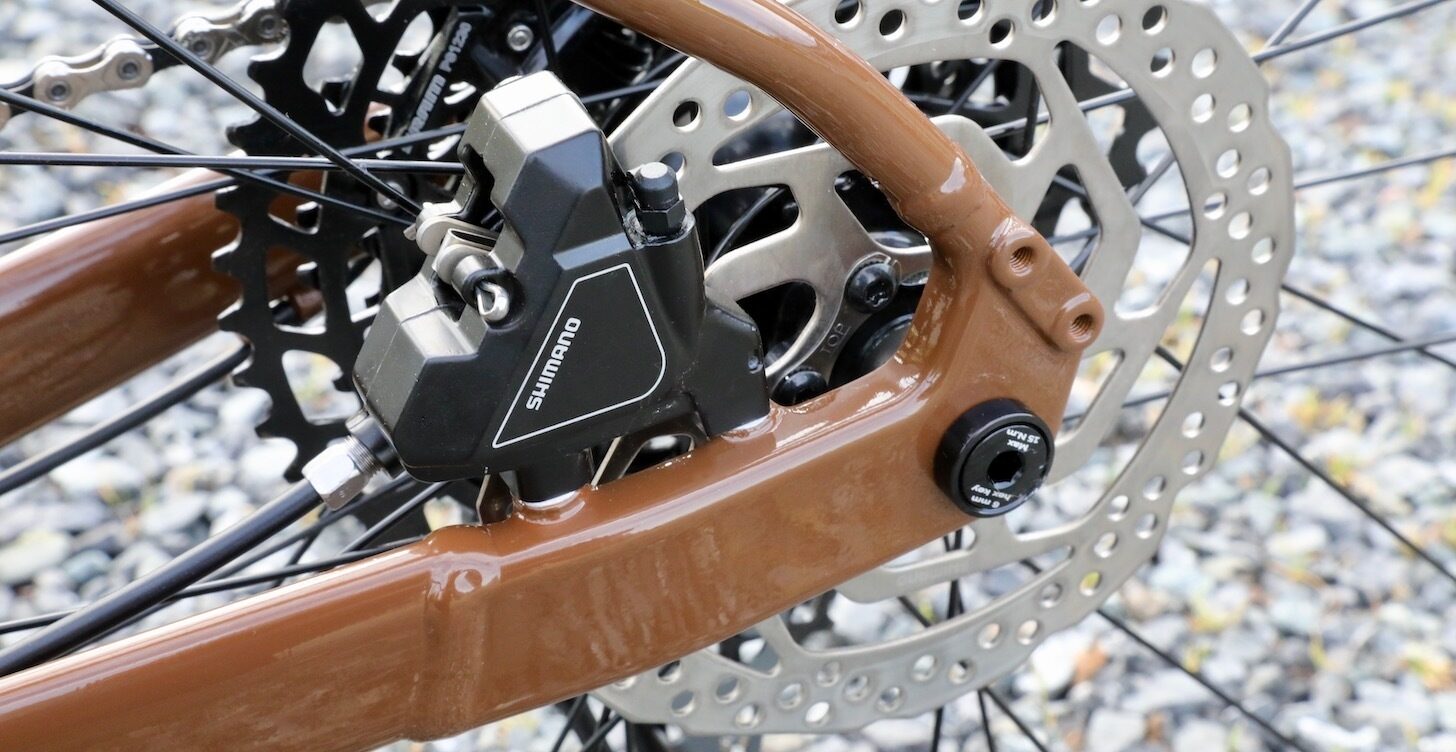

BRAKE, REAR
Shimano MT201/UR300 Flat Mount Hydraulic Disc, 160mm Rotor
-
BRAKE LEVERS
Shimano Hydraulic
-
HANDLEBAR
Marin MiniRiser
-
STEM
Marin 3D Forged Alloy
-
GRIPS
Marin MTB
-
HEADSET
FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
-
SEATPOST
Marin Alloy
-
SADDLE
Marin DSX
-
PEDALS
Commute Platform
-
EXTRAS
Bolt-On Thru-Axles F and R
Specifications, pricing, and availability are subject to change without notice.

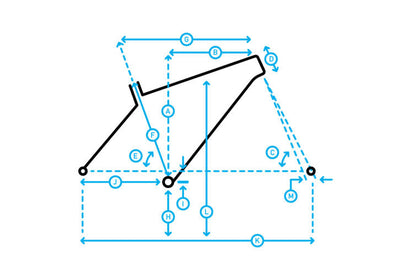

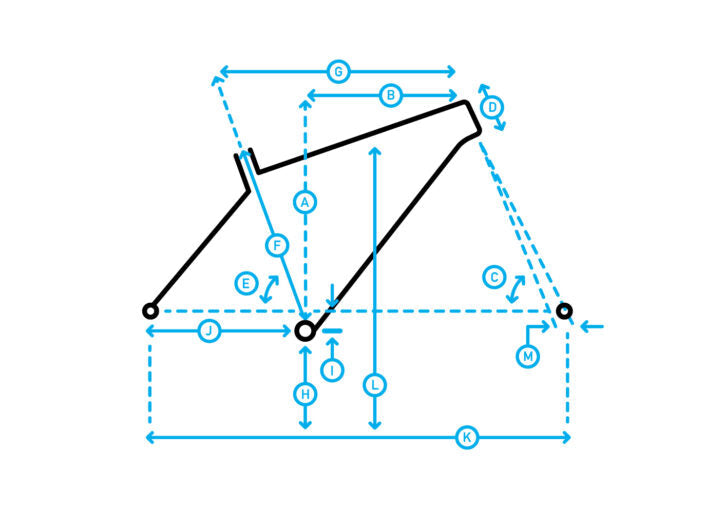

| - | S | M | L | XL |
|---|---|---|---|---|
| ASTACK | 544.4 | 572.5 | 600.6 | 628.7 |
| BREACH | 380 | 405 | 420 | 435 |
| CHEADTUBE ANGLE | 69.5° | 69.5° | 69.5° | 69.5° |
| DHEAD TUBE LENGTH (MM) | 120 | 150 | 180 | 210 |
| ESEATTUBE ANGLE | 74° | 74° | 74° | 74° |
| FSEAT TUBE LENGTH (MM) | 430 | 480 | 520 | 558 |
| GTOP TUBE EFFECTIVE (MM) | 536.1 | 569.2 | 592.2 | 615.3 |
| HBB HEIGHT | 279.5 | 279.5 | 279.5 | 279.5 |
| IBB DROP | 80 | 80 | 80 | 80 |
| JCHAIN STAY (MM) | 425 | 425 | 425 | 425 |
| KWHEELBASE | 1024.42 | 1060 | 1085.4 | 1110.9 |
| LSTANDOVER HEIGHT | 658.76 | 700.51 | 730.39 | 758.5 |
| MFORK OFFSET (MM) | 50 | 50 | 50 | 50 |
| SEATPOST DIAMETER | 27.2 | 27.2 | 27.2 | 27.2 |
| HANDLEBAR WIDTH (MM) | 640 | 680 | 680 | 680 |
| STEM LENGTH (MM) | 70 | 70 | 70 | 70 |
| CRANK LENGTH | 170 | 175 | 175 | 175 |
All lengths in millimeters
