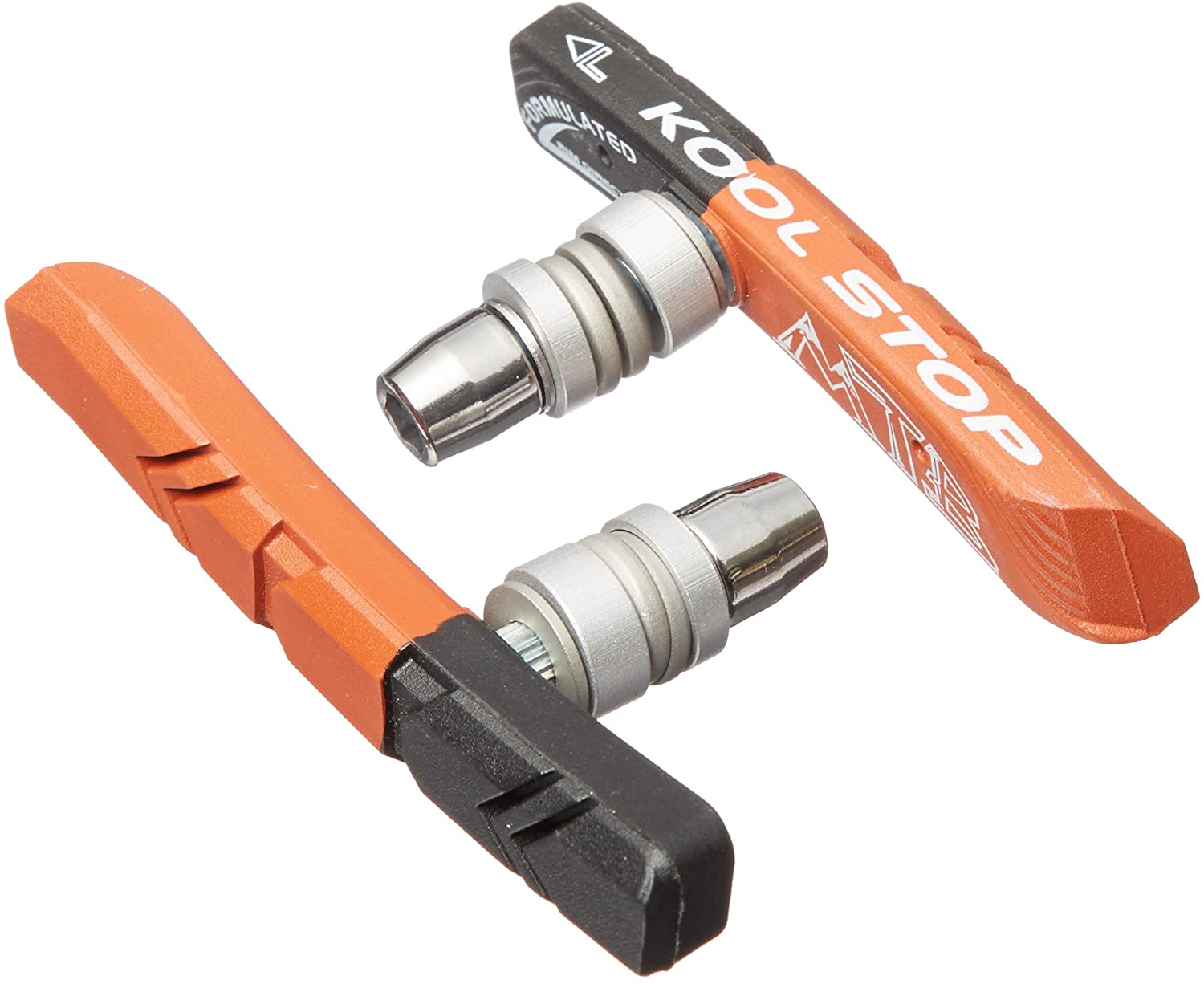

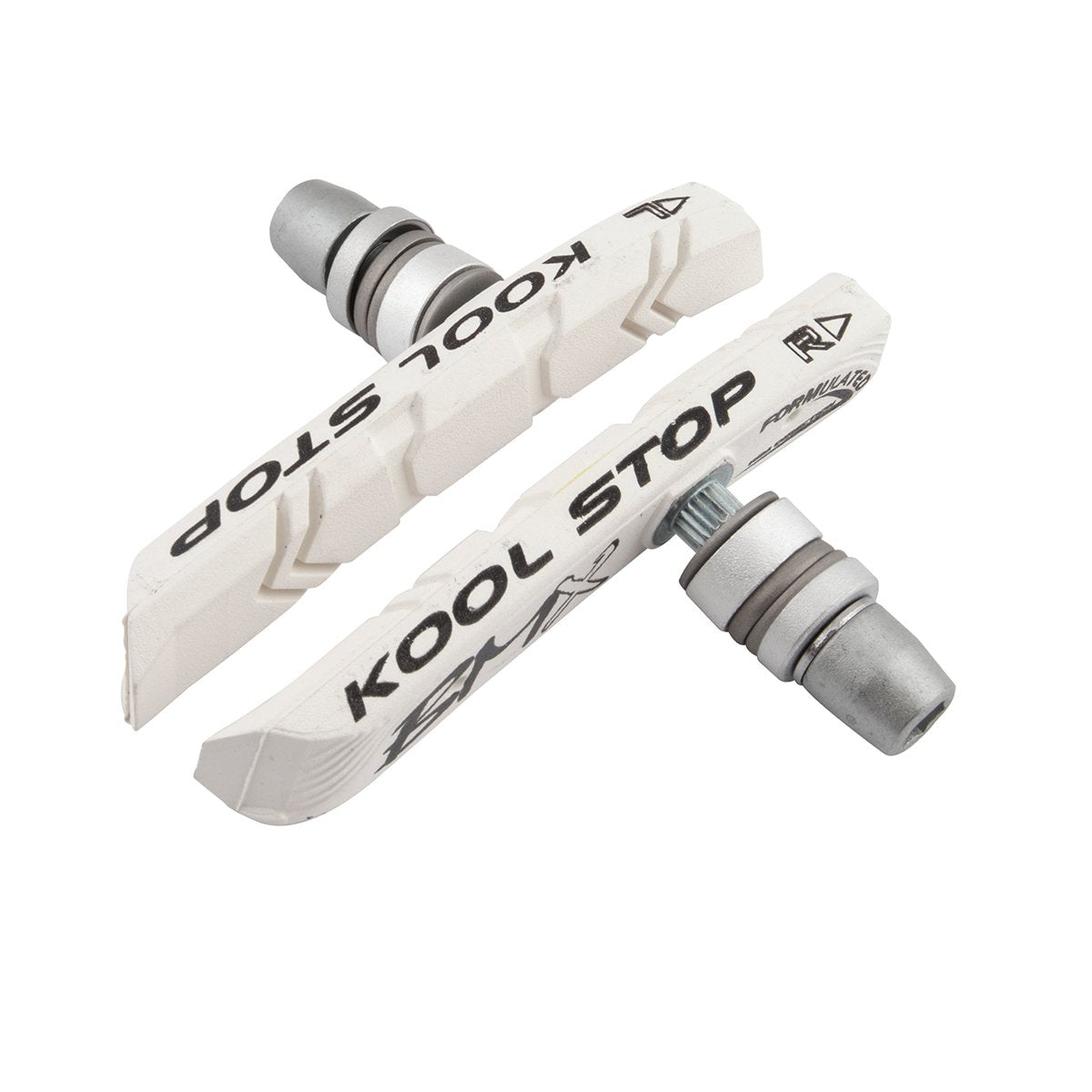

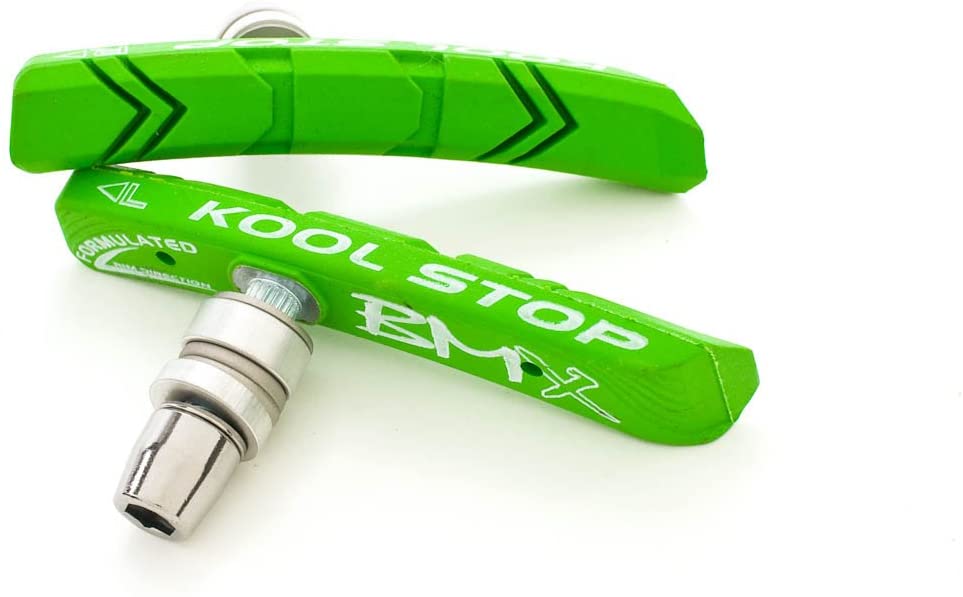

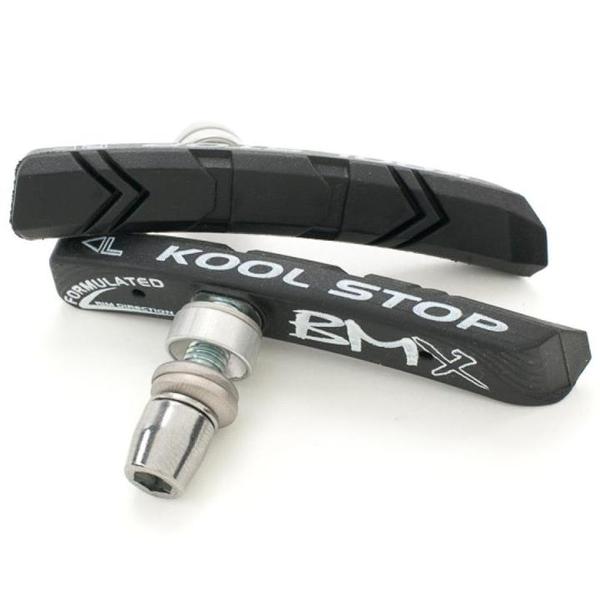

Kool-Stop BMX Threaded Brake Shoe
KS-BMXLG
The BMX Pad is a top choice for BMX bikes direct pull brakes. The curved design allows this longer more rigid pad to contour the rim for better brake performance.
Features
- Hardened and Plated reinforced steel backbone
- Patented Angled tip plow
- Water grooves
- Knurl-lock™ washer system
- Available only in Threaded
Specifications
- Weight per pair: 61.7 grams
- Overall length: 78.5 mm
- Pad contact width: 8.5 mm
Installation Instructions
- Clean the rim surface before installing new pads
- Place the new Kool Stop pads into the brake caliper arms and finger tighten the nuts
- Squeeze brake lever to allow correct pad to rim alignment; tighten the nuts. Do not over tighten
- Break In Pads. Full stopping power may not develop until after several braking applications have conditioned the rim surface. Proper "toe in" alignment prevents brake chatter
- Check the pad and rim alignment after the pads are broken in and after every ride
- Important: Do not ride the bike until the brakes are checked and functioning properly. Designed for bicycle use only. All Kool Stop Pads meet or exceed C.P.S.C and D.I.N bicycle standards
