Jamis Durango A2 29er MTB Bike (2021)
DURANGOGALAXY17
PUSHING THE BOUNDS OF "ENTRY LEVEL"
These may be the most affordable 29’ers in our stable, but there’s nothing entry-level about the performance of these bikes. We’ve taken all new frame styling and married it to our proven XC geometry. Best-in-class performance and big hoops doesn’t have to mean big bucks, and the Durangos prove it.
FRAME DESIGN DETAILS
The Durango frame features a sloping top tube that optimizes stand-over clearance while at the same time adding great looks. The over-sized down tube and head tube also offer plenty of strength, stiffness, and fork crown clearance.

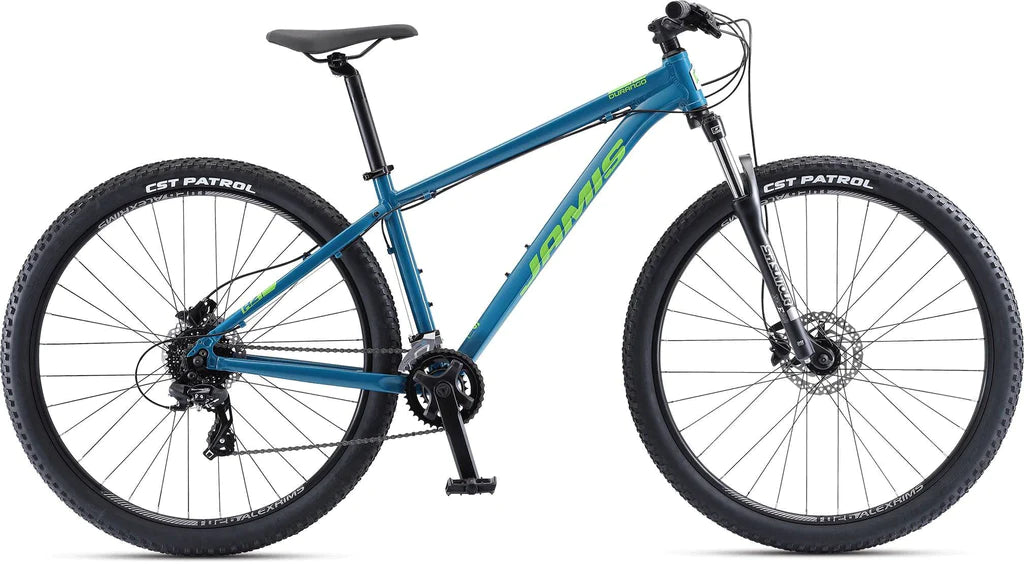

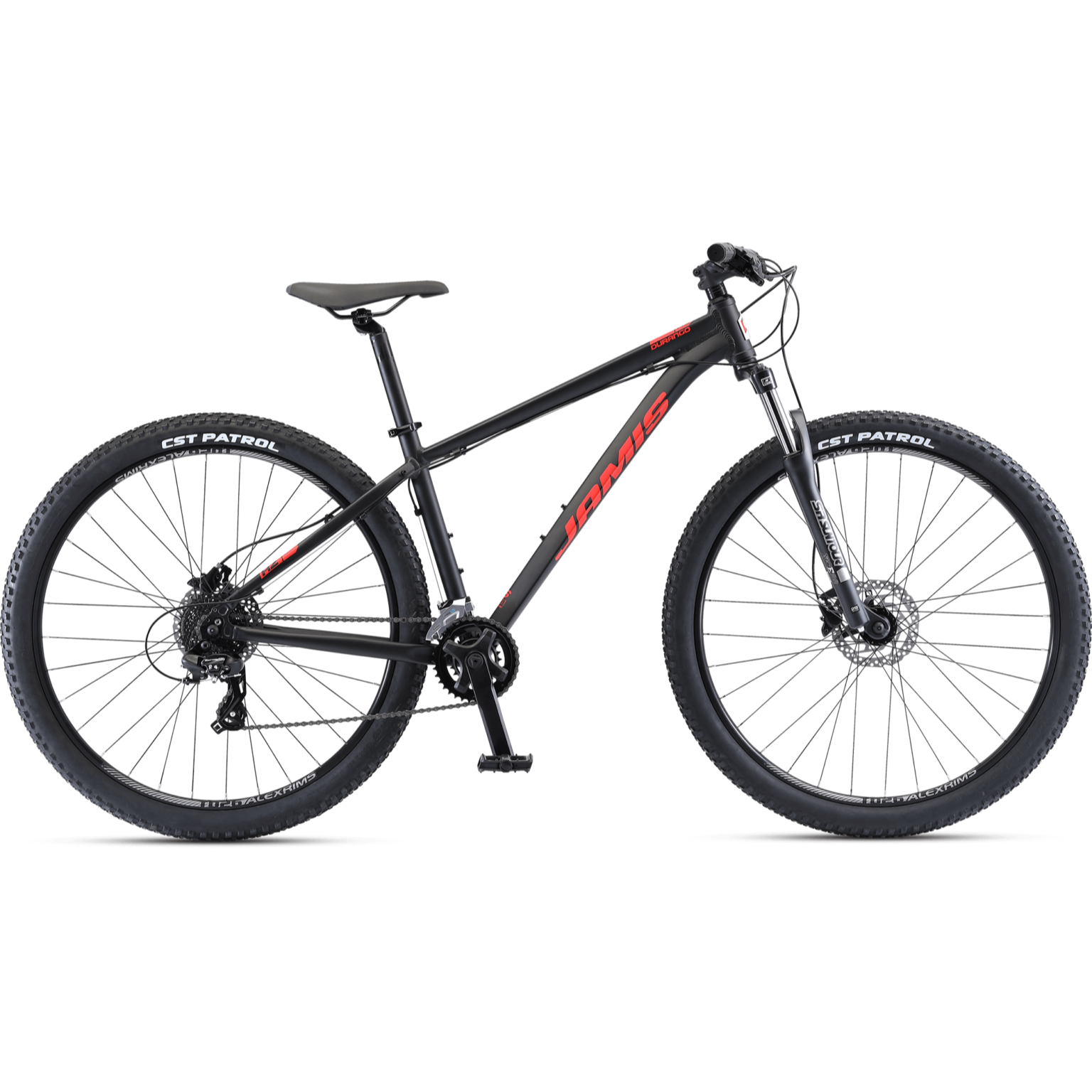

DURANGO A2
- 6061 aluminum main tubes
- SR Suntour XCE 28 29”, coil spring, external preload adjustor
- Alex TD26 29” rims, 32H, alloy disc hubs
- Shimano, 8-speed drivetrain
- Sealed cartridge bottom bracket
- Shimano MT200 hydraulic disc brakes
- Jamis XC alloy handlebar and stem
- Jamis ATB Sport Saddle
Call on 8591220335 to talk to a bike expert.
Specification
| DURANGO | A2 |
|---|---|
| Frame | 6061 aluminum main tubes, over-sized seat tube, zero-stack head tube, over-sized stays, replaceable derailleur hanger |
| Fork | SR Suntour XCE 28 29”, coil spring, external preload adjustor, 28mm stanchions, aluminum lowers, 100mm travel |
| Headset | Zero-stack internal cup, 8mm cone spacer |
| Wheels | Alex TD26 29” rims, 32H, alloy disc hubs, 14G nickel- plated spokes |
| Tires | CST Patrol, 29 x 2.25” |
| Derailleurs | Microshift 2-Speed and 8 Speed |
| Shift levers | Microshift 2x8-Speed |
| Chain | KMC Z8.3, 8-speed |
| Cassette | Shimano HG31, 8-speed, 11-32T |
| Crankset | Forged Alloy, 36/22T |
| BB Set | Sealed cartridge |
| Pedals | MTB platform, hi-impact resin |
| Brakeset | Shimano MT200 hydraulic disc, Shimano RT26 160mm rotors |
| Handlebar | Jamis XC alloy riser, 31.8 x 20mm rise x 740mm |
| Stem | Jamis XC alloy threadless, 31.8 x 3 ? rise x 60mm |
| Grips | Kraton |
| Seat Post | Jamis alloy micro-adjust, 31.6 x 400mm |
| Saddle | Jamis ATB Sport |
| Sizes | 15”, 17”, 19”, 21” |
| Color | Ano Black or Galaxy Blue |
| Weight | 32.5 lbs |
FIT & SIZING
| MODEL | SIZE | TT EFFECTIVE | HT ANGLE | ST ANGLE | CHAINSTAY | WHEELBASE | BB DROP | HEADTUBE | STANDOVER |
|---|---|---|---|---|---|---|---|---|---|
| A2 | S/15.5″ | 23.0 / 585 | 69° | 74° | 17.7 / 450 | 44 / 1116 | 2.4 / 60 | 3.7 / 95 | 29.5 / 749 |
| A2 | M/17″ | 24.0 / 610 | 69° | 74° | 17.7 / 450 | 45 / 1142 | 2.4 / 60 | 4.1 / 105 | 30.6 / 779 |
| A2 | L/19″ | 25.0 / 635 | 69° | 74° | 17.7 / 450 | 46 / 1168 | 2.4 / 60 | 4.5 / 115 | 32.1 / 815 |
| A2 | XL/21″ | 26.0 / 660 | 69° | 74° | 17.7 / 450 | 47 / 1193 | 2.4 / 60 | 4.9 / 125 | 33.2 / 845 |
