Chapter2 TOA Race Disc Brake Frameset - Glossy Black

badge
badge
badge

118082FSZZZ01_XS

Regular priceRs. 263,900.00
/
Tax included. Shipping calculated at checkout.

Size

About the Frame:

2-½ years in development with every detail carefully considered and meticulously executed, the TOA is the culmination of all the CHAPTER2 frames that have come before it. TOA which means “to be victorious, win” in Maori delivers an all-out, no-compromise carbon fibre race-ready frame platform designed, engineered, and manufactured to the most exacting standards.

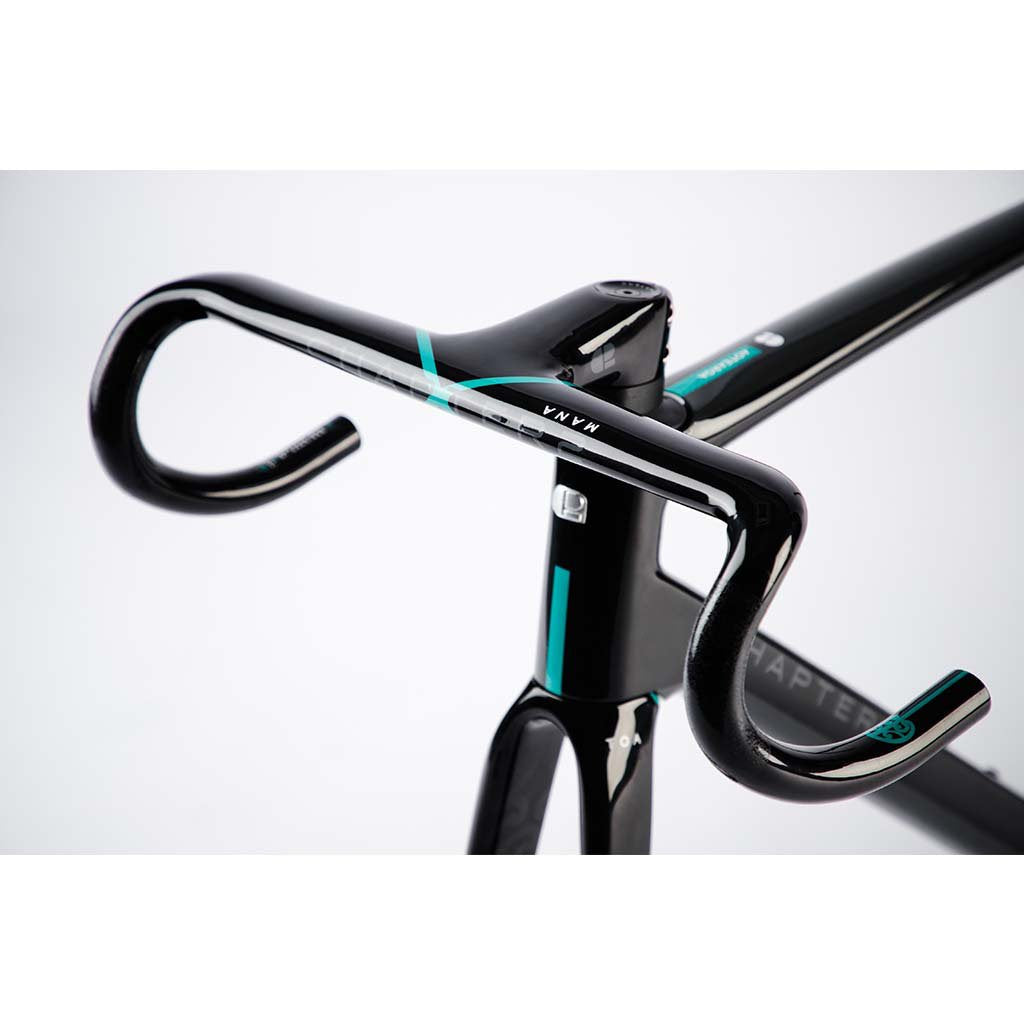

Inspired by the TERE’s Performance All-Road DNA and the AO’s versatility, the TOA has all its cables/hoses tucked away from sight and the wind, creating an aerodynamically seamless transition between the MANA Bar and the TOA’s Kamm-Tail chassis.

Sporting a T47 Bottom Bracket for easy maintenance, the aluminium BB Shell works in unison with the high-tensile carbon carefully laid into the BB area to increase stiffness by up to 8% over the TERE. Additionally, the use of a Latex mandrel for the whole front triangle has increased the Headtube stiffness by 34% over the TERE for that out of the saddle and power to the pedals moment.

Other enhancements such as the bundled MANA Bar, Quick-Fit headset spacers, up to 32mm of tire clearance, vibration dampening Seatstays and Seatpost makes for a package that ticks all the right boxes.

Model Benefits:

  • Stiff Racing Frame: Improved Power Transfer & Precise Steering
  • Cable Integration: Improved Aerodynamics & Clean Aesthetics
  • Compact Kamm-Tail: Aerodynamic & Stiffness where Needed
  • Up to 32mm Tire Clearance: Increased Tire Options
  • Dropped Stays: Improved Compliance for Endurance Rides
  • T47 BB: Noise-free & Easy to Service
  • Disc Brakes Only: Improved Braking & Modulation
  • Frameset Only: Bespoke & Personal
  • Limited Edition: Exclusivity

What you Get:

  • Frame
  • Fork
  • Integrated Headset & Headset Cover
  • Seatpost
  • MANA Bar (allocated by frame size)
  • Thru-Axles
  • Quick-Fit Spacer Kit (3x5mm & 3x10mm)
  • Wheels not included

Mana Bar Size (Stem x width) mm:

  • XS Frame (80 x 400)
  • S Frame (90 x 400)
  • M Frame (100 x 420)
  • L Frame (110 x 420)
  • XL Frame (120 x 440)

Sizing Information

Note: All dimensions are in mm unless otherwise mentioned

Ref Size XS S M L XL
A Top Tube Length 510 526 539 558 575
B Head Tube Length 95 115 135 160 186
C Seat Tube Angle 74 74 74 74 74
D Head Tube Angle 71 72 73 74 74
E Seat Tube 458 483 508 533 560
F BB Drop 73 73 73 73 73
G Rear Centre 408 408 408 408 408
H Wheelbase 973 975 973 986 1002
I Front Centre 576 578 576 589 605
K Seatpost Setback 10 10 10 10 10
Stack 493 518 543 568 593
Reach 366 375 384 393 402
Standover Height 735 760 786 811 837
Rider Height (cm) <170 165-175 170-180 175-185 >180
