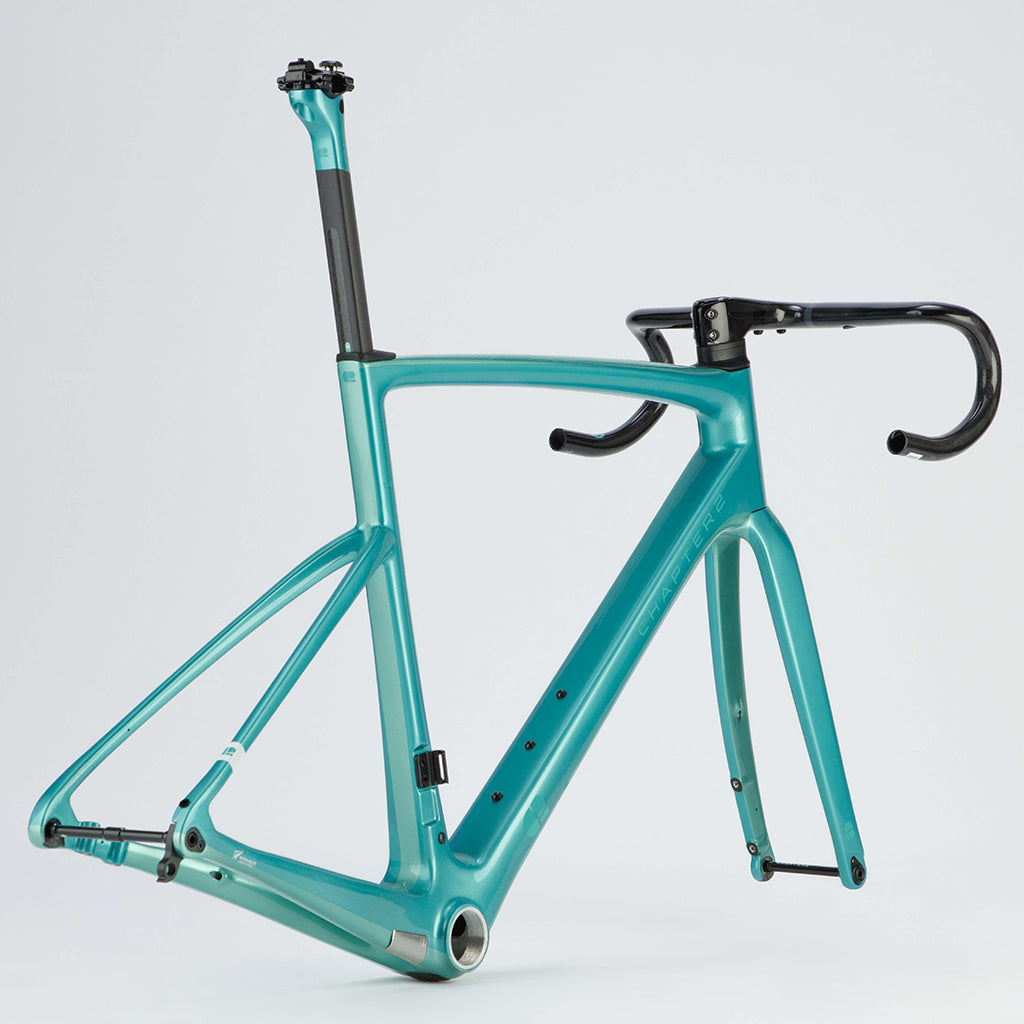

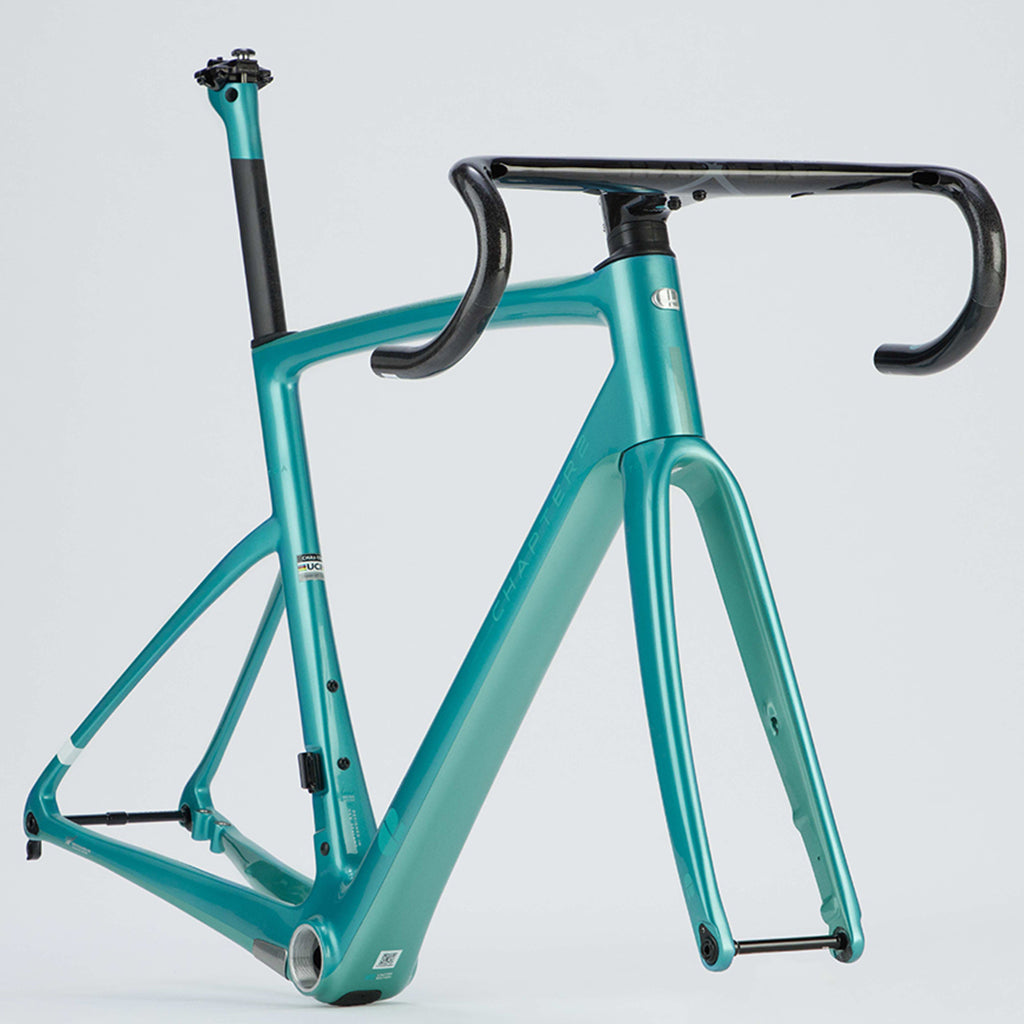

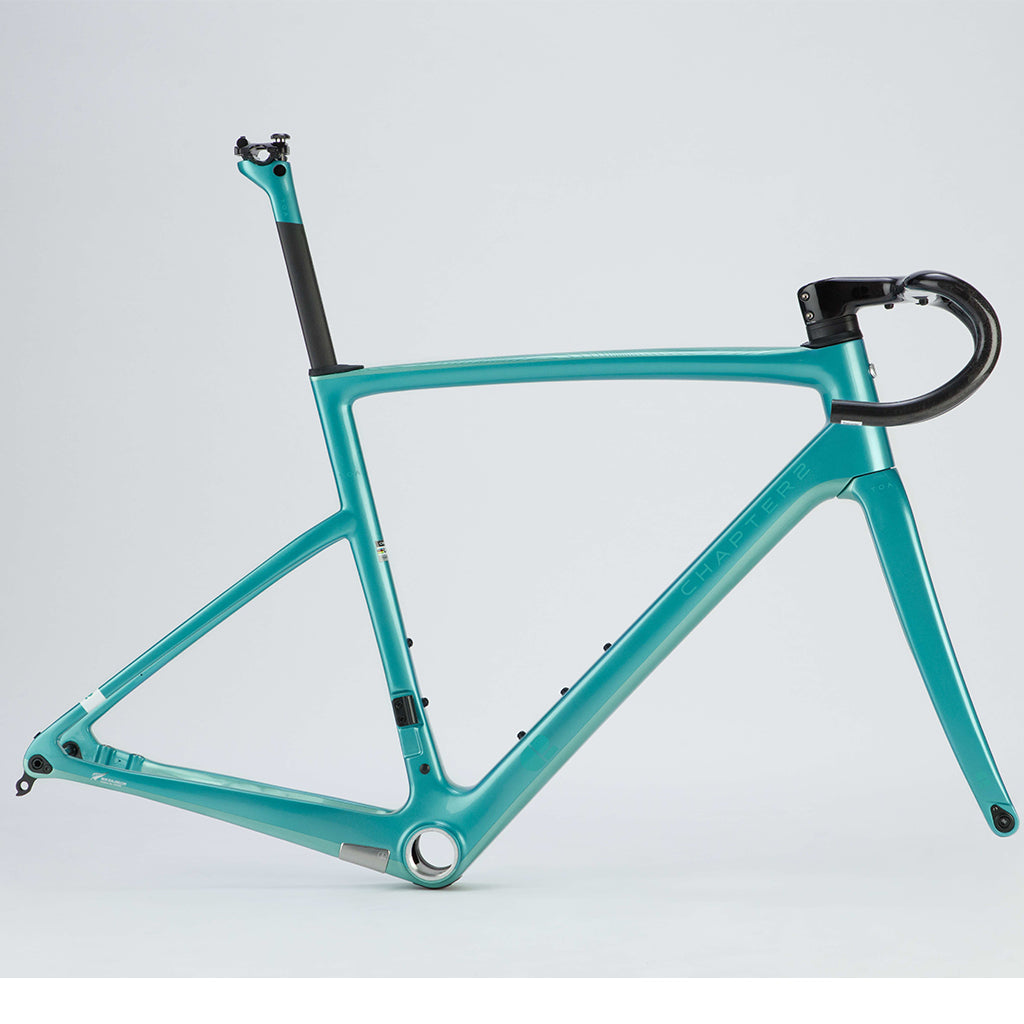

Chapter2 TOA Race Disc Brake Frameset - Aqua Blue


Sale priceRs. 297,900.00
Tax included. Shipping calculated at checkout.


Product Description

About the Frame:

2-½ years in development with every detail carefully considered and meticulously executed, the TOA is the culmination of all the CHAPTER2 frames that have come before it. TOA which means “to be victorious, win” in Maori delivers an all-out, no-compromise carbon fibre race-ready frame platform designed, engineered, and manufactured to the most exacting standards.

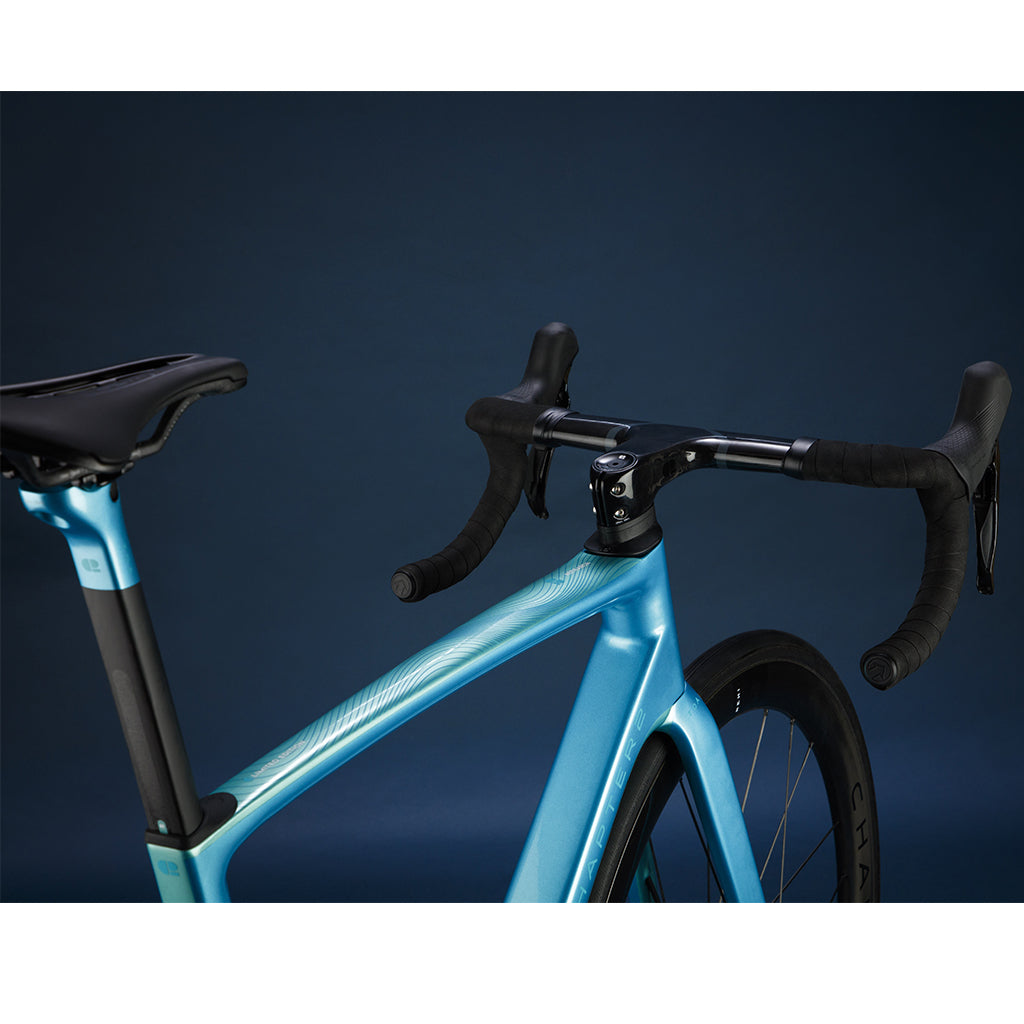

Inspired by the TERE’s Performance All-Road DNA and the AO’s versatility, the TOA has all its cables/hoses tucked away from sight and the wind, creating an aerodynamically seamless transition between the MANA Bar and the TOA’s Kamm-Tail chassis.

Sporting a T47 Bottom Bracket for easy maintenance, the aluminium BB Shell works in unison with the high-tensile carbon carefully laid into the BB area to increase stiffness by up to 8% over the TERE. Additionally, the use of a Latex mandrel for the whole front triangle has increased the Headtube stiffness by 34% over the TERE for that out of the saddle and power to the pedals moment.

Other enhancements such as optional MANA Bar, Quick-Fit headset spacers, up to 32mm of tire clearance, vibration dampening Seatstays and Seatpost makes for a package that ticks all the right boxes.

Model Benefits:

  • Stiff Racing Frame: Improved Power Transfer & Precise Steering
  • Cable Integration: Improved Aerodynamics & Clean Aesthetics
  • Compact Kamm-Tail: Aerodynamic & Stiffness where Needed
  • Up to 32mm Tire Clearance: Increased Tire Options
  • Dropped Stays: Improved Compliance for Endurance Rides
  • T47 BB: Noise-free & Easy to Service
  • Disc Brakes Only: Improved Braking & Modulation
  • Frameset Only: Bespoke & Personal
  • Limited Edition: Exclusivity

What you Get:

  • Frame
  • Fork
  • Integrated Headset & Headset Cover
  • Seatpost
  • MANA Bar (to be ordered separately)
  • Thru-Axles
  • Quick-Fit Spacer Kit (3x5mm & 3x10mm)

Mana Bar Size Recommendation (Stem x width) mm:

  • XS Frame (80 x 400)
  • S Frame (90 x 400)
  • M Frame (100 x 420)
  • L Frame (110 x 420)
  • XL Frame (120 x 440)

Sizing Information

Note: All dimensions are in mm unless otherwise mentioned

Ref Size XS S M L XL
A Top Tube Length 509 528 547 567 587
B Head Tube Length 105 130 155 179 209
C Seat Tube Angle 73 73 73 73 73
D Head Tube Angle 69 70 71 72 72
E Seat Tube Length 460 480 500 530 560
F BB Drop 74 74 74 74 74
G Chainstay Length 420 420 420 420 420
H Wheelbase 998 1010 1021 1026 1046
I Front Centre 589 601 612 617 638
J Fork Offset (2 Forks) 55 55 55 50 50
K Seatpost Setback 15 15 15 15 15
- Stack 521 548 576 605 634
- Reach 355 366 377 388 399
- Stem 80 90 100 110 120
- Standover Height 756 778 800 823 846
- Rider Height (cm) <170 165-175 170-180 175-185 >180

Frame Specs:

  • Carbon: 100% Made in Japan by Toray®
  • Frame 5 Sizes: XS, S, M, L & XL
  • Fork 2 Sizes: XS, S (53mm offset) and M, L, XL (43mm offset)
  • Frame Weight: 1105g (Disc) Size M +/- 3%
  • Fork Weight: 425g (Disc) Uncut +/- 3%
  • Seatpost Weight: 135g Uncut +/- 3%
  • Handlebar/Stem (MANA): 395g (100-420mm) +/- 3%
  • Headset: 1.5” C2 Integrated System
  • Gear Shifting Type: Mechanical & Electronic Shifting
  • Electronic Shifting: SHIMANO® Di2, SRAM® eTAP & Campagnolo® EPS compatible
  • Battery Type: Di2 SM-BTR-2 & EPS V3 Battery compatible
  • Tire Clearance: 30mm (ISO) & 32mm Practical
  • Brake Type: Disc Only
  • Bottom Bracket: T47 Internal 47mm diameter x 68.5mm Shell
  • Thru-Axle: Flat Mount FR 12x100mm, RR 12x142mm, E-Thru M12x1.5mm
  • Safety Standard: EN ISO 4210:2014
  • UCI Accreditation: UCI Approved

Note-MANA Handlebar is Optional and Not Included with Frameset

Torque Specs:

  • Saddle Rail: 6Nm
  • Integrated Seatclamp: 8-10Nm
  • Front Derailleur Hanger: 3-4Nm
  • Rear Derailleur Hanger: 2-3Nm
  • BB Cable Guide Cover: 1-2Nm
  • Water Bottle Cage Bolts: 2-3Nm
  • MANA: 6Nm

Chapter2 Lifetime Warranty Policy:

All CHAPTER2 framesets (frame, forks, seatpost, and other parts provided with frame at time of purchase) and MANA Bar and associated parts are covered under our global lifetime warranty program. Your warranty period begins from the time of purchase.

CHAPTER2 warrants that your frame, fork, and/or seatpost and other parts supplied with the frame are free of any manufacturer’s defects and are only applicable to the original purchaser and may not be assigned.

This warranty only applies to CHAPTER2 products purchased from our website or from an authorised dealer or online store. This warranty commences from the date of purchase, is offered only to the original retail purchaser, and is not transferable.


Consumable parts/accessories such as hangers, cable stops, seatclamps, saddle clamps, etc. are not covered under this warranty.

The paint and decals on your CHAPTER2 frame, fork, and/or seatpost and other CHAPTER2 branded parts/accessories are only covered for a period of 2 years from the time of purchase.

The warranty excludes damage whilst the frame, fork, and/or seatpost are being used on a stationary trainer.

Damage caused by abuse, misuse, improper assembly, rental, improper or insufficient maintenance, accident, impact, corrosion, use of aggressive cleaners, use with non-compatible components, improper repairs, and wear and tear is not covered under this warranty.
