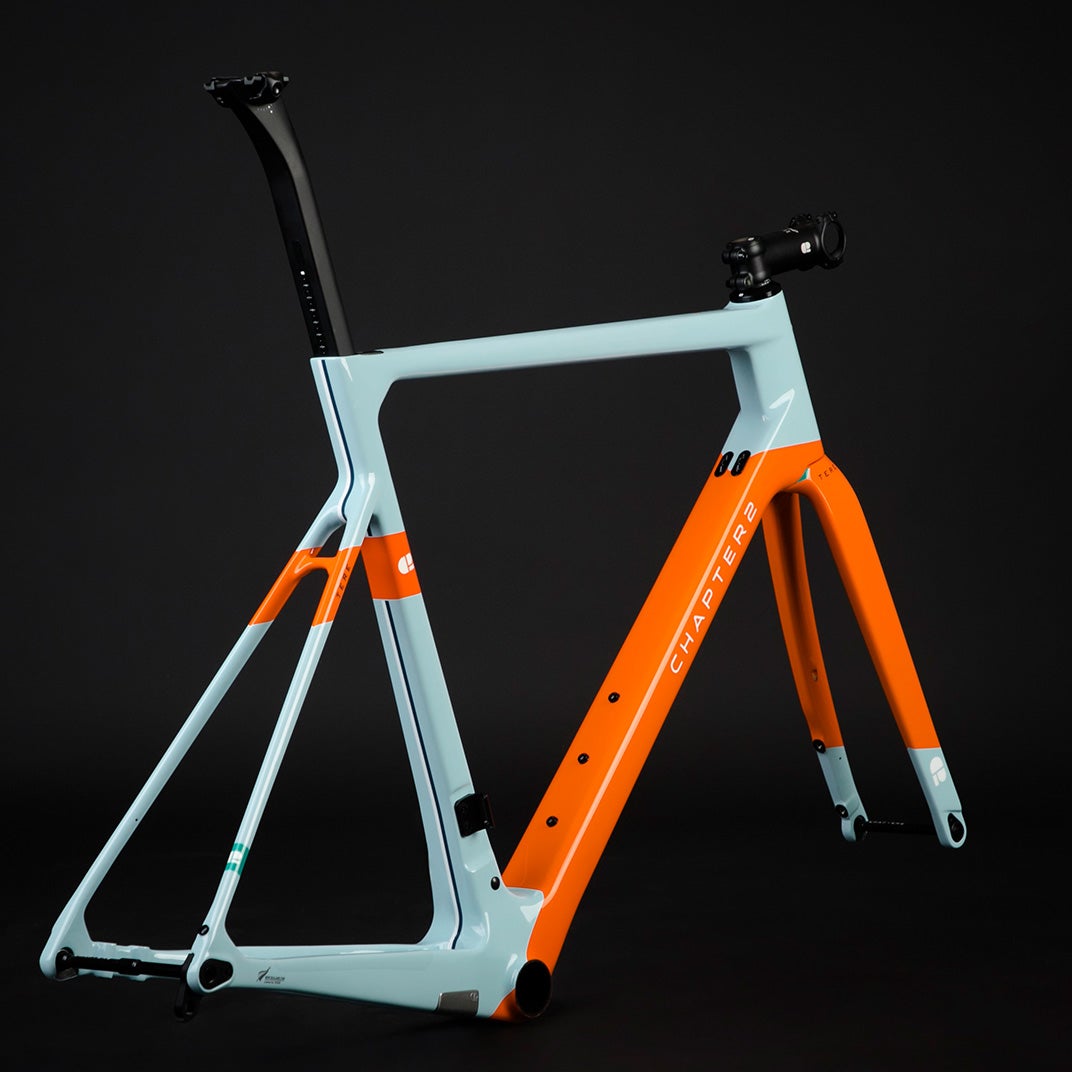

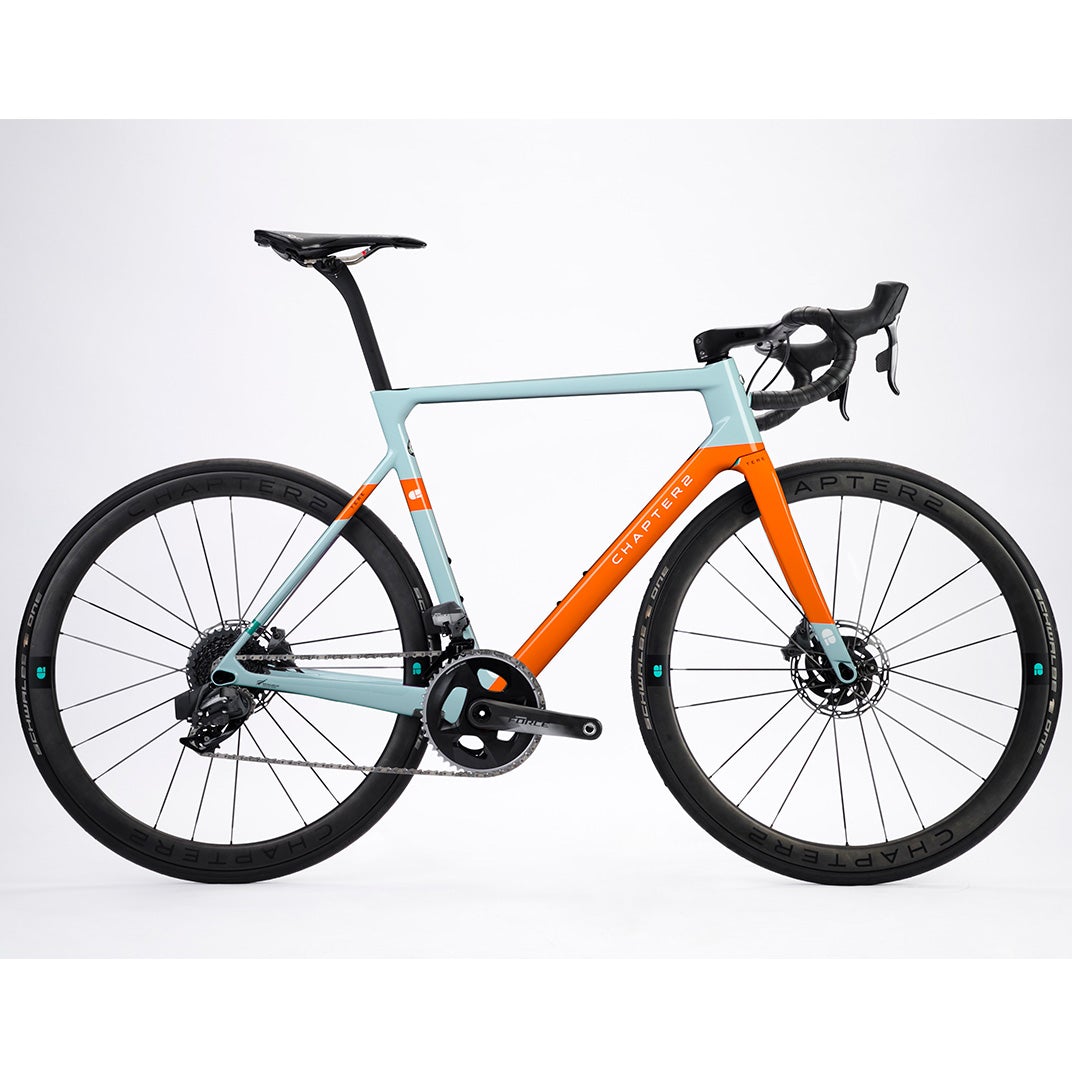

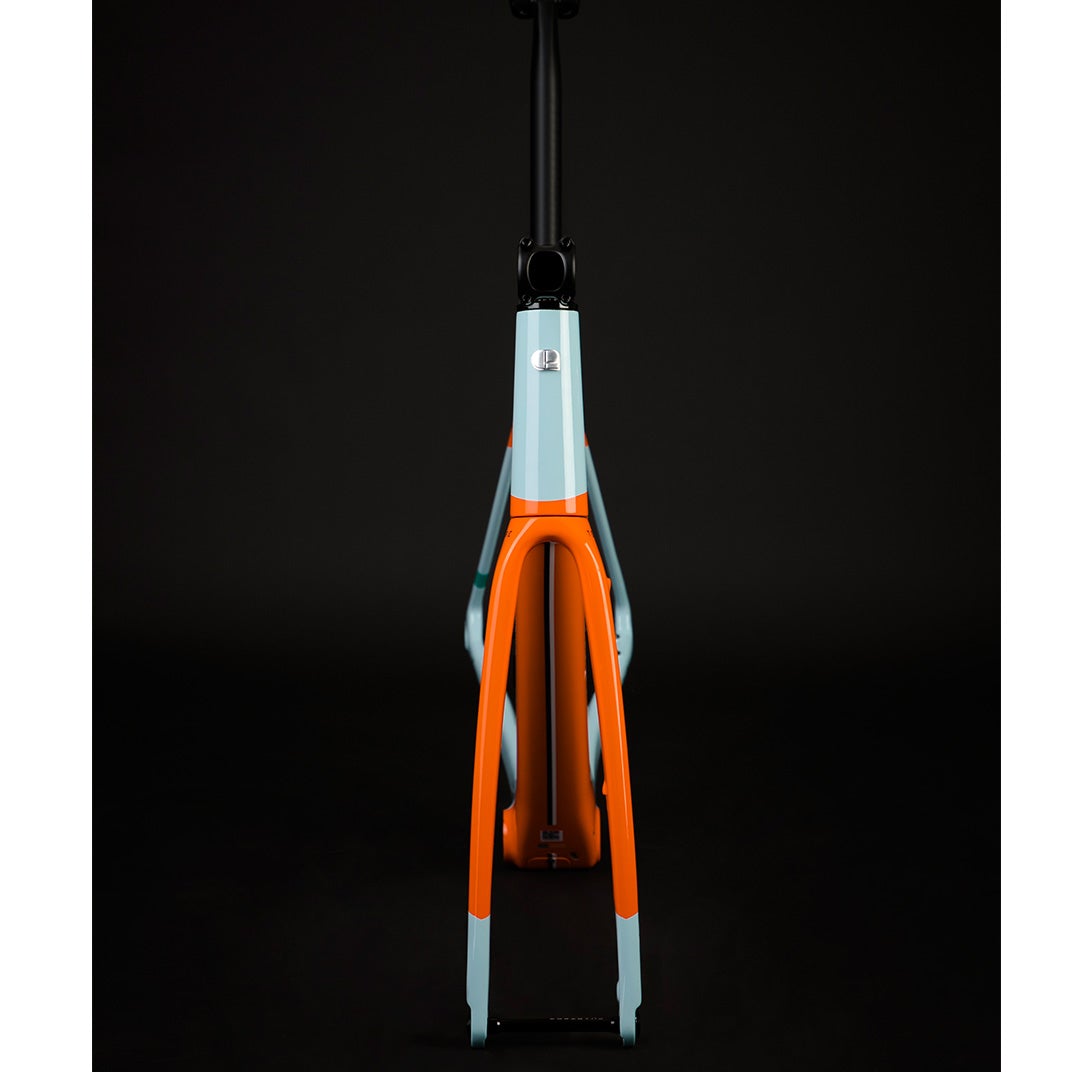

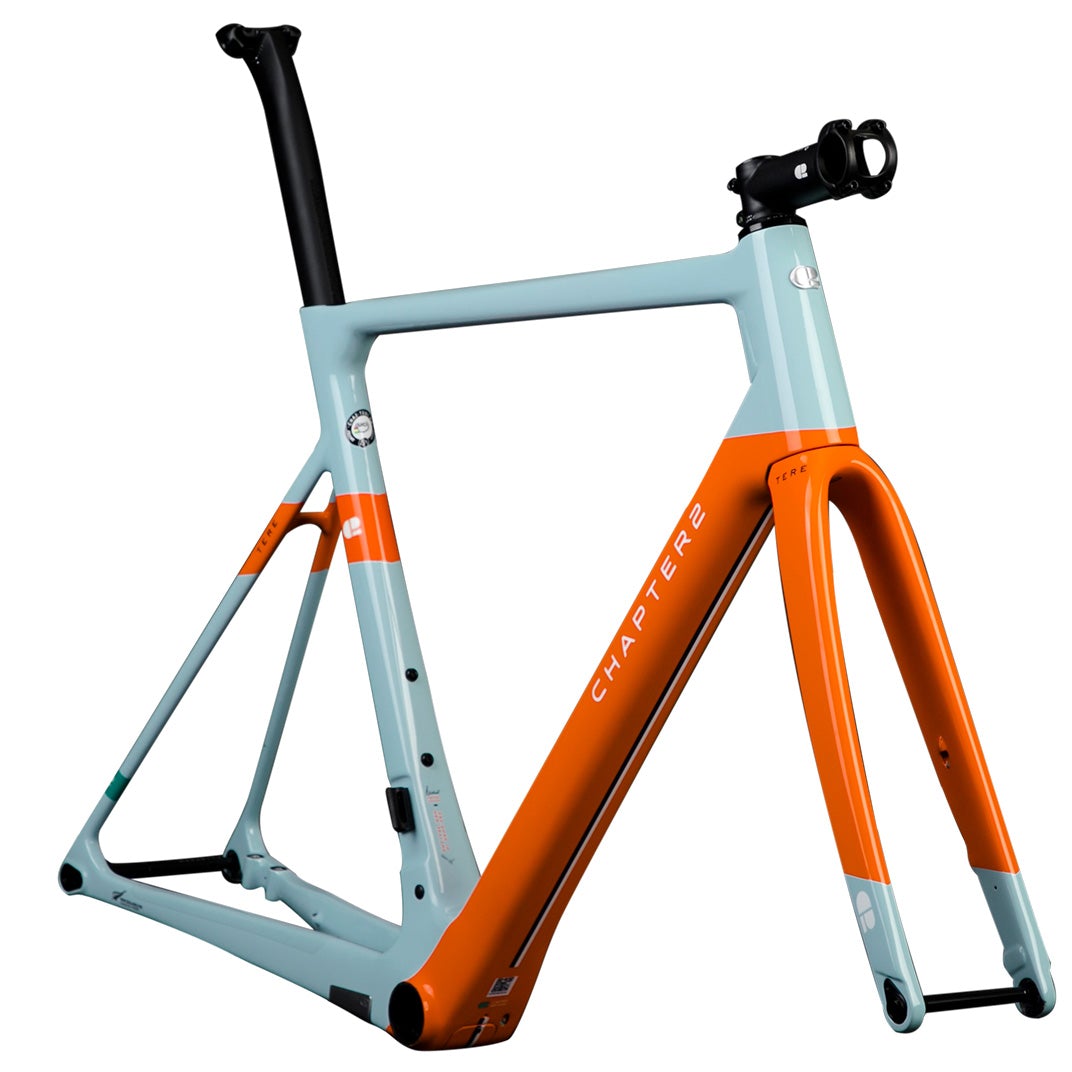

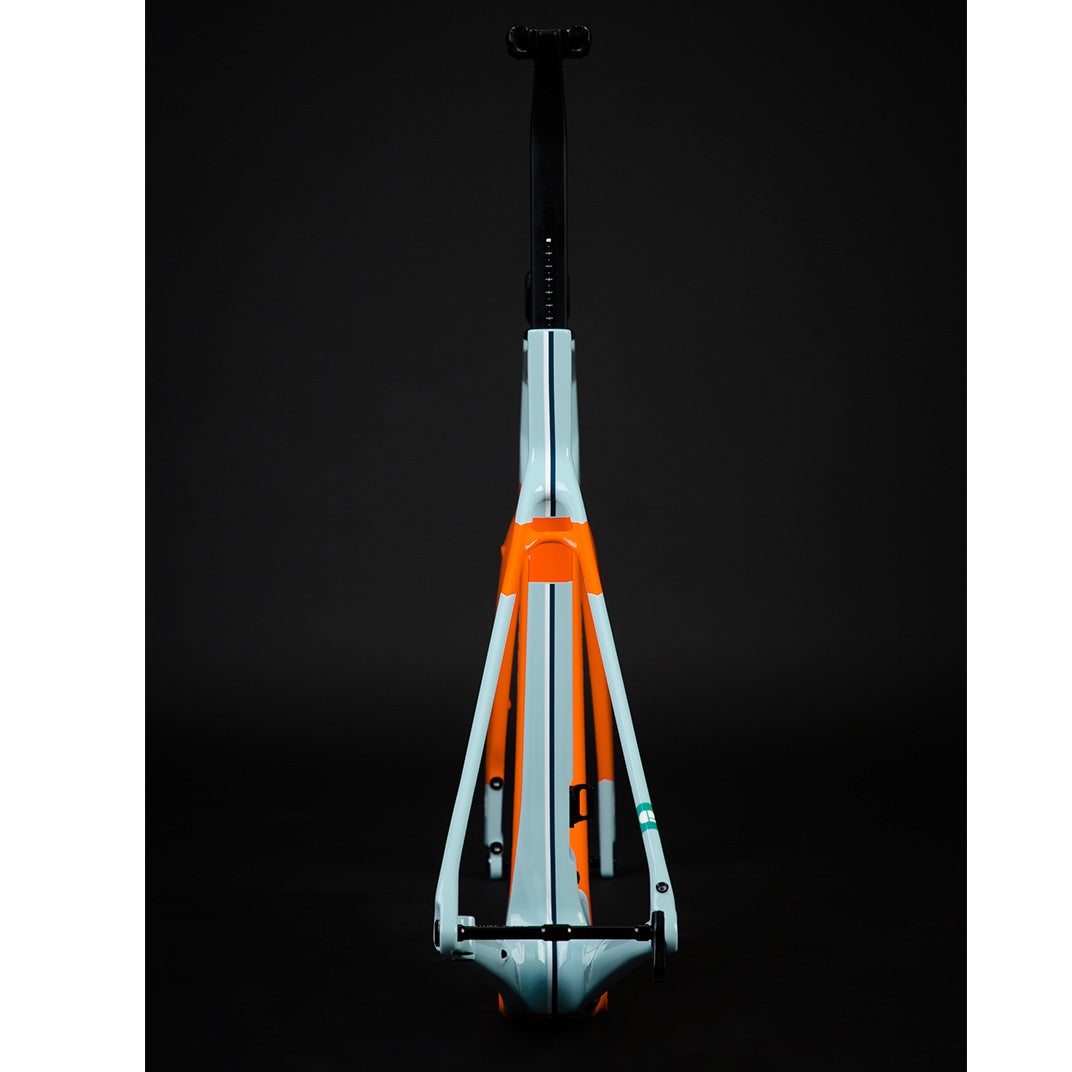

Chapter2 TERE All-Road Disc Brake Frameset - Classic GT40

badge
badge
badge

117012FSZZZ32_XS

Regular price Rs. 280,400.00 Sale priceRs. 210,300.00 Save 25%
/
Tax included. Shipping calculated at checkout.

Size

About the Frame:

The TERE is the quintessential Performance All-Road frame designed to excel in all conditions whether you fit into the weekend warrior or a seasoned pro genre. The word TERE means “be quick, swift and fast” in Maori and the TERE delivers on that promise on every occasion.

The TERE sits in our All-Road category of frame platforms. Its unique silhouette has been carefully engineered to ensure that its stiffness to weight ratio is perfectly dialled for unrivalled performance whether you are racing your local crit, climbing the most epic mountain or just out for your local coffee shop ride.

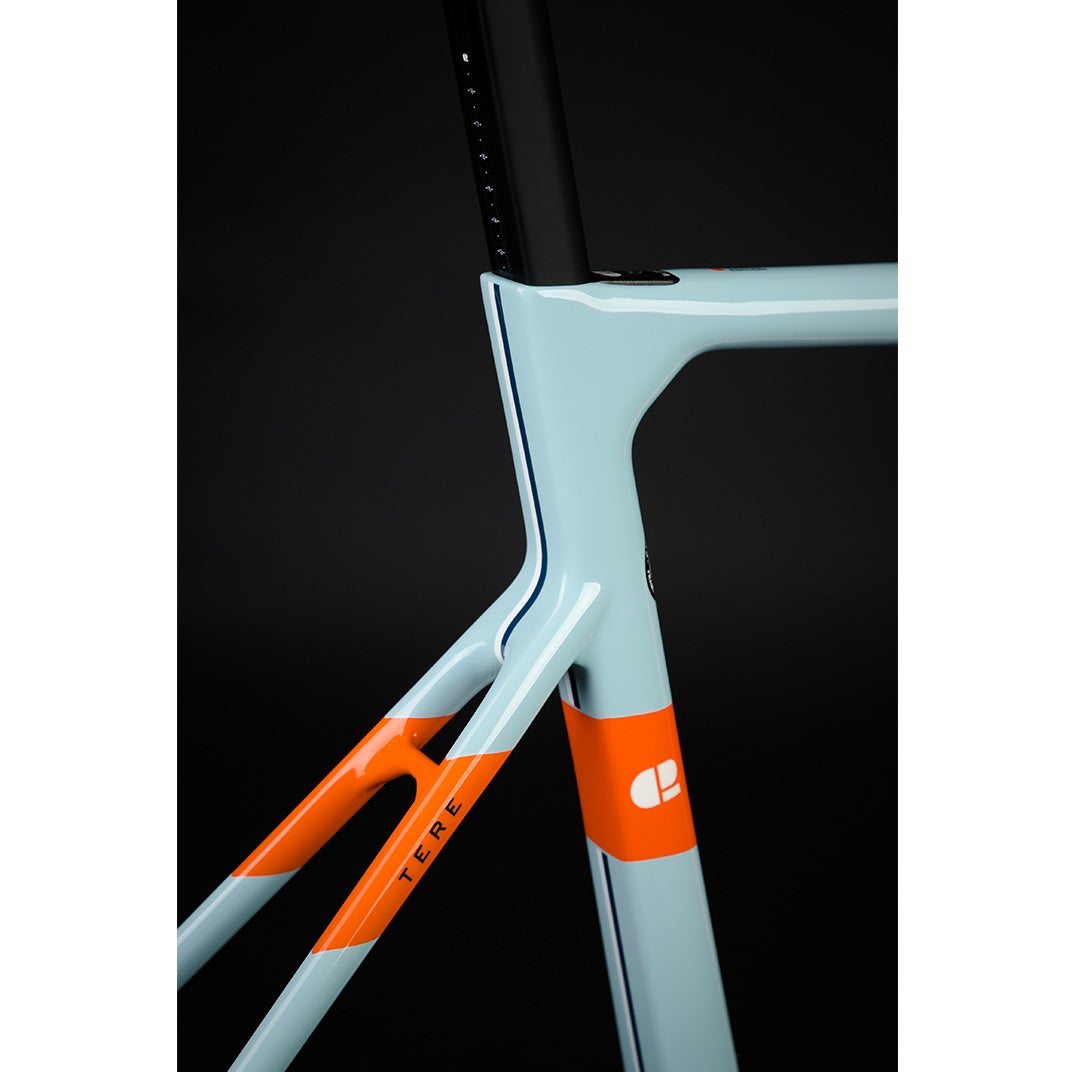

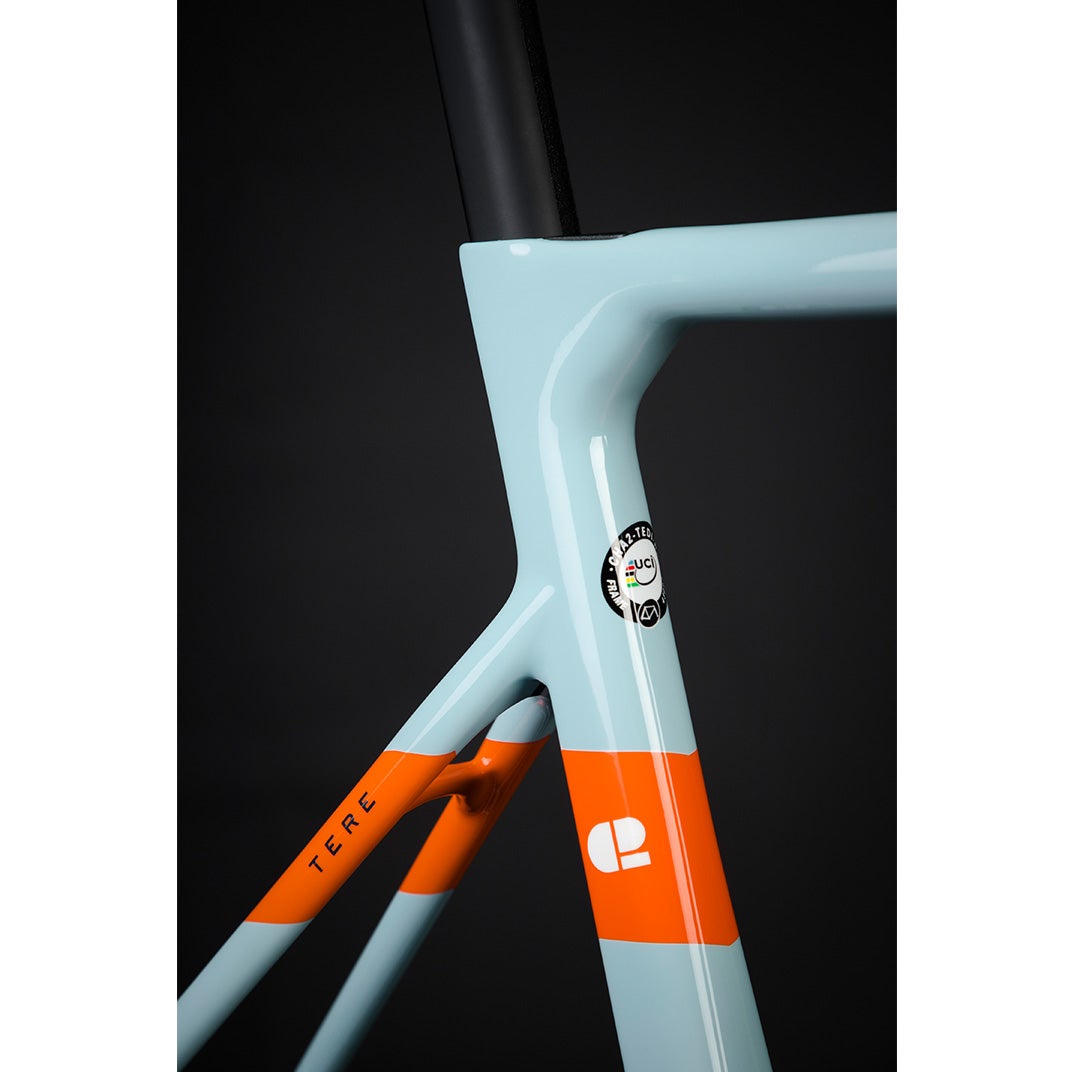

With sunrise to sunset riding in variable conditions in mind, the TERE’s vibration dampening Seatstays and Seatpost combined with its more upright stance will mean that you’ll be able to give it everything, all-day long.

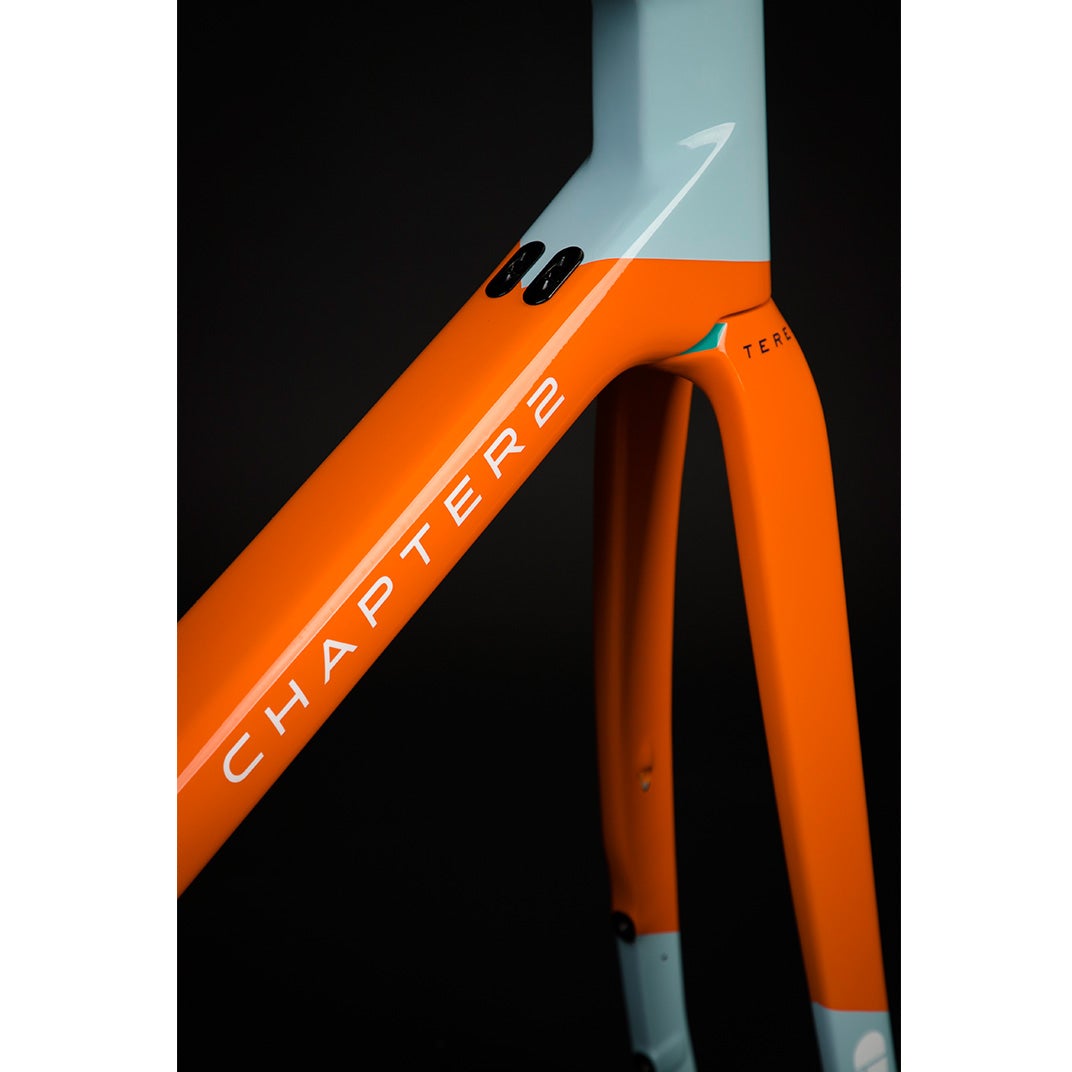

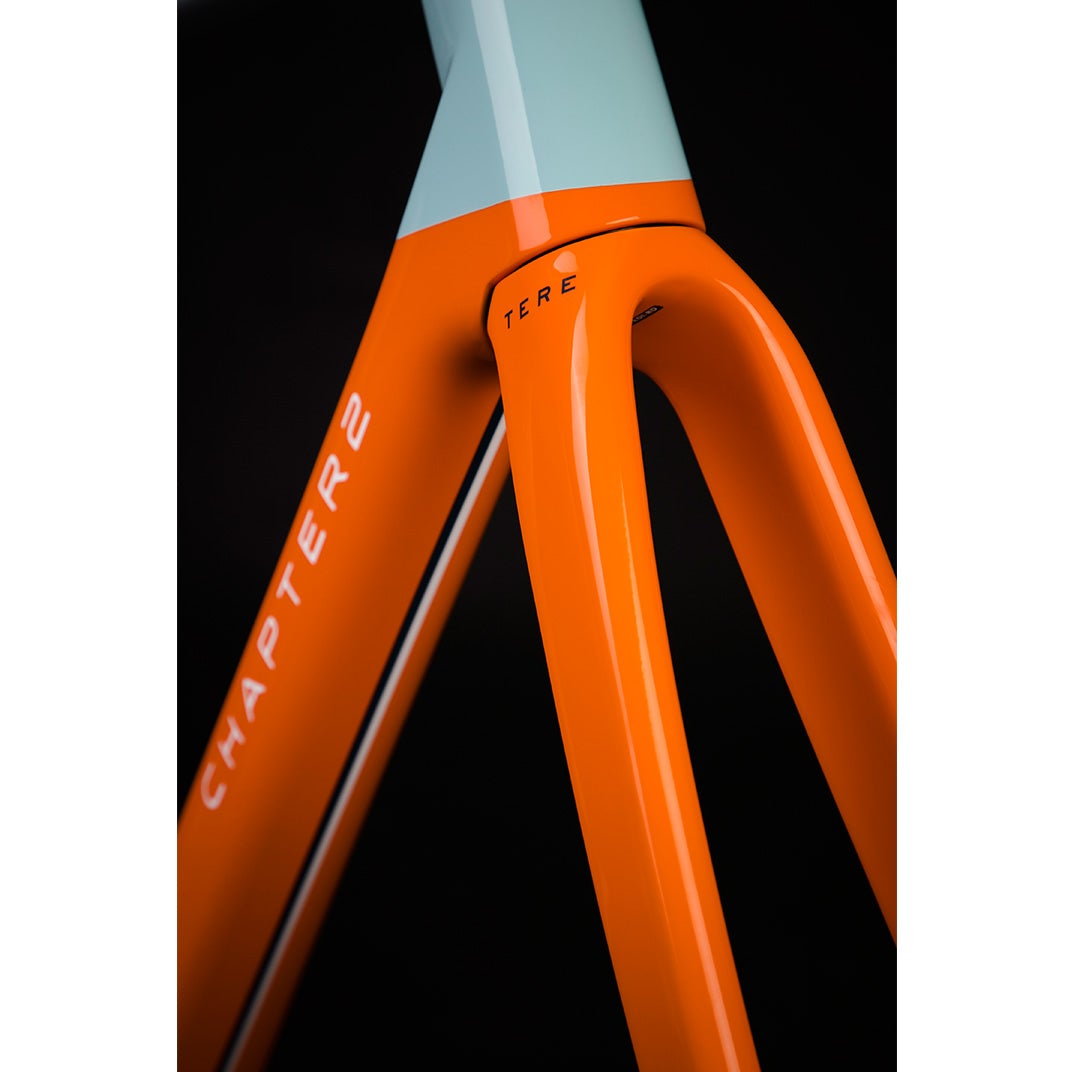

Available in both Rim and Disc versions with subtle yet effective Kamm-Tail profiles tested at Auckland University’s Wind Tunnel, the use of high tensile directional carbon fibre in the Headtube will mean that you can throw the TERE into any tight corner knowing it will track true and confidently every time.

Model Benefits:

  • Stiff Racing Frame: Improved Power Transfer & Precise Steering
  • Compact Kamm-Tail: Aerodynamic & Stiffness where Needed
  • High Modulas Carbon (Headtube): Increased Cornering Performance
  • High Modulas Carbon (BB): Increased Power Transfer
  • Dropped Stays: Improved Compliance for Endurance Rides
  • Rim & Disc Options: Only Disc Brake Option available in this colour
  • Frameset Only: Bespoke & Personal
  • Limited Edition: Exclusivity

What you Get:

  • Frame
  • Fork
  • C2 fork expansion bolt
  • Headset
  • Headset spacer kit
  • Seatpost
  • Thru Axles

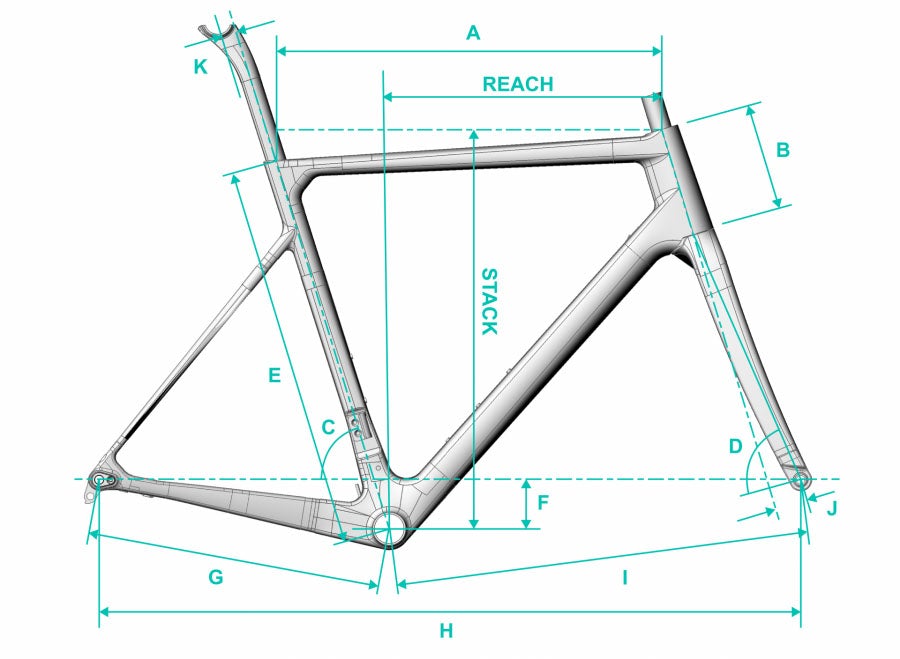

Sizing Information

Note: All dimensions are in mm unless otherwise mentioned

Ref Size XS S M L XL
A Top Tube Length 514 531 548 564 581
B Head Tube Length 113 133 153 178 204
C Seat Tube Angle 73 73 73 73 73
D Head Tube Angle 70 72 73 73 73
E Seat Tube Length 495 515 535 555 575
F BB Drop 68 68 68 68 68
G Chainstay Length 405 405 405 405 405
H Wheelbase 970 972 970 982 999
I Front Centre 575 577 575 587 604
J Fork Offset (2 Forks) 53 53 43 43 43
K Seatpost Setback 20 20 20 20 20
Stack 505 530 555 580 605
Reach 360 368 378 387 396
Standover Height 756 778 800 823 846

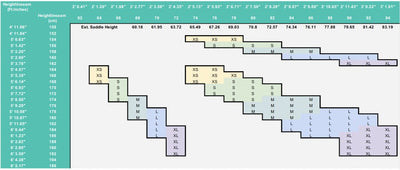

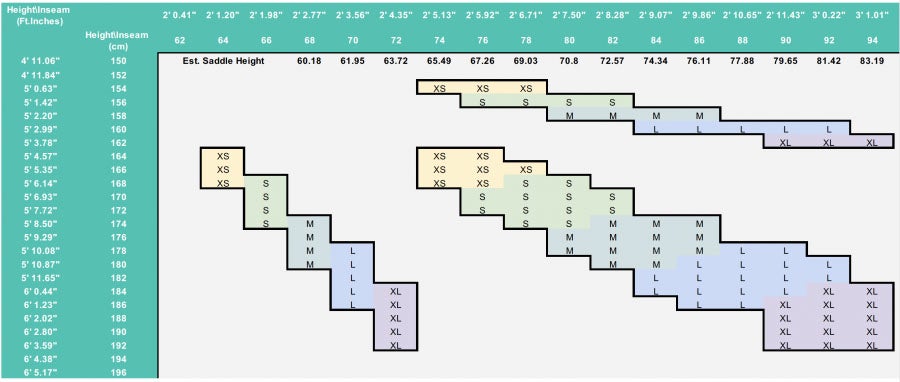

Rider Height (cm) <170 165-175 170-180 175-185 >180

Frame Specs:

  • Carbon: Toray® T700, T800 & 3K Directional Carbon
  • Frame 5 Sizes: XS, S, M, L & XL
  • Fork 2 Sizes: XS, S (53mm offset) and M, L, XL (43mm offset)
  • Frame Weight: 950g (Rim) & 1015g (Disc) Size M +/- 3%
  • Fork: 390g (Rim) & 425g (Disc) Uncut +/- 3%
  • Seatpost: 198g +/- 3%
  • Stem: 80mm, 90mm, 100mm, 110mm and 120mm (+/-7°)
  • Headset: CHAPTER2 Tapered 1-1/8” – 1.5”
  • BB: Press Fit BB86.5
  • Electronic Shifting: SHIMANO® Di2, SRAM® eTAP & Campagnolo® EPS compatible
  • Battery Type: Di2 SM-BTR-2 and EPS V3 Battery compatible
  • Tire Clearance: 25mm (Rim) & 28mm (Disc)
  • Saddle Rail: 7mm Round & 7x9mm Oval
  • Disc Thru-Axle Spec: Flat Mount FR 12x100mm, RR 12x142mm, E-Thru M12x1.5mm
  • Safety Standard: EN ISO 4210:2014
  • UCI Accreditation: UCI Approved

Torque Specs:

  • Saddle Rail: 12Nm
  • Integrated Seatclamp: 10-12Nm
  • Stem (Steerer): 6Nm
  • Stem (Handlebar): 6Nm
  • Front Derailleur Hanger: 3Nm
  • Rear Derailleur Hanger: 2Nm
  • BB Cable Guide Cover: 1Nm
  • Water Bottle Cage Bolts: 3Nm
