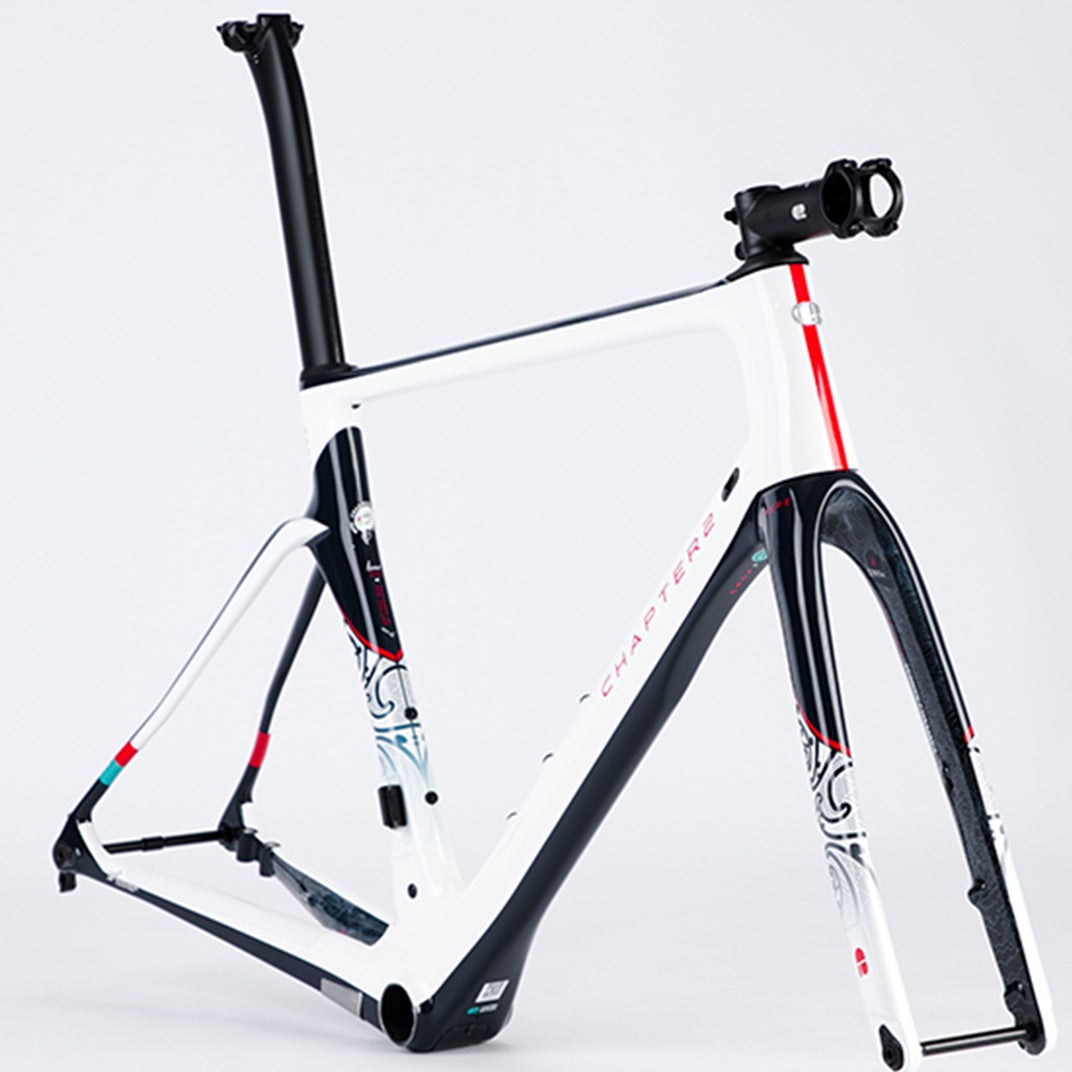

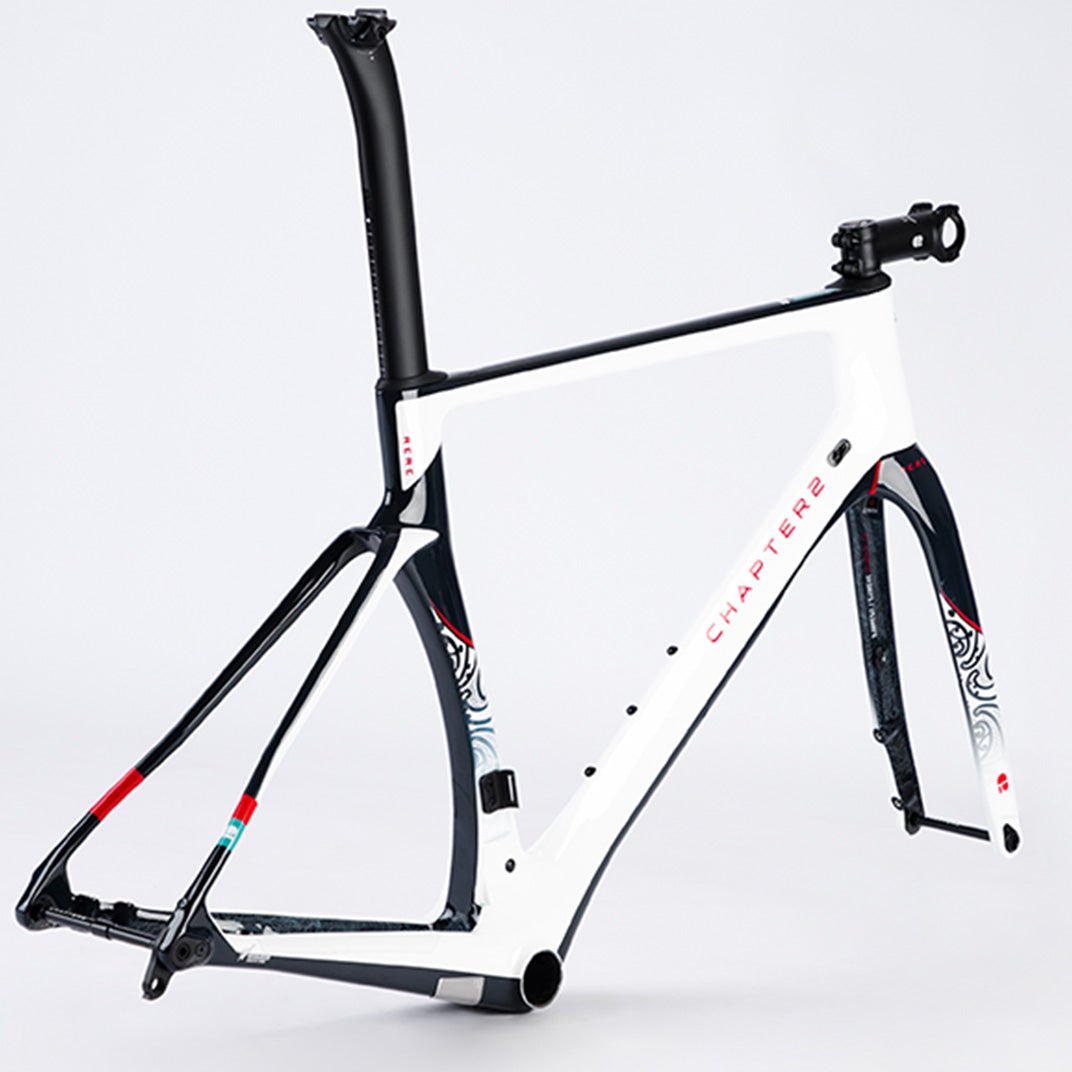

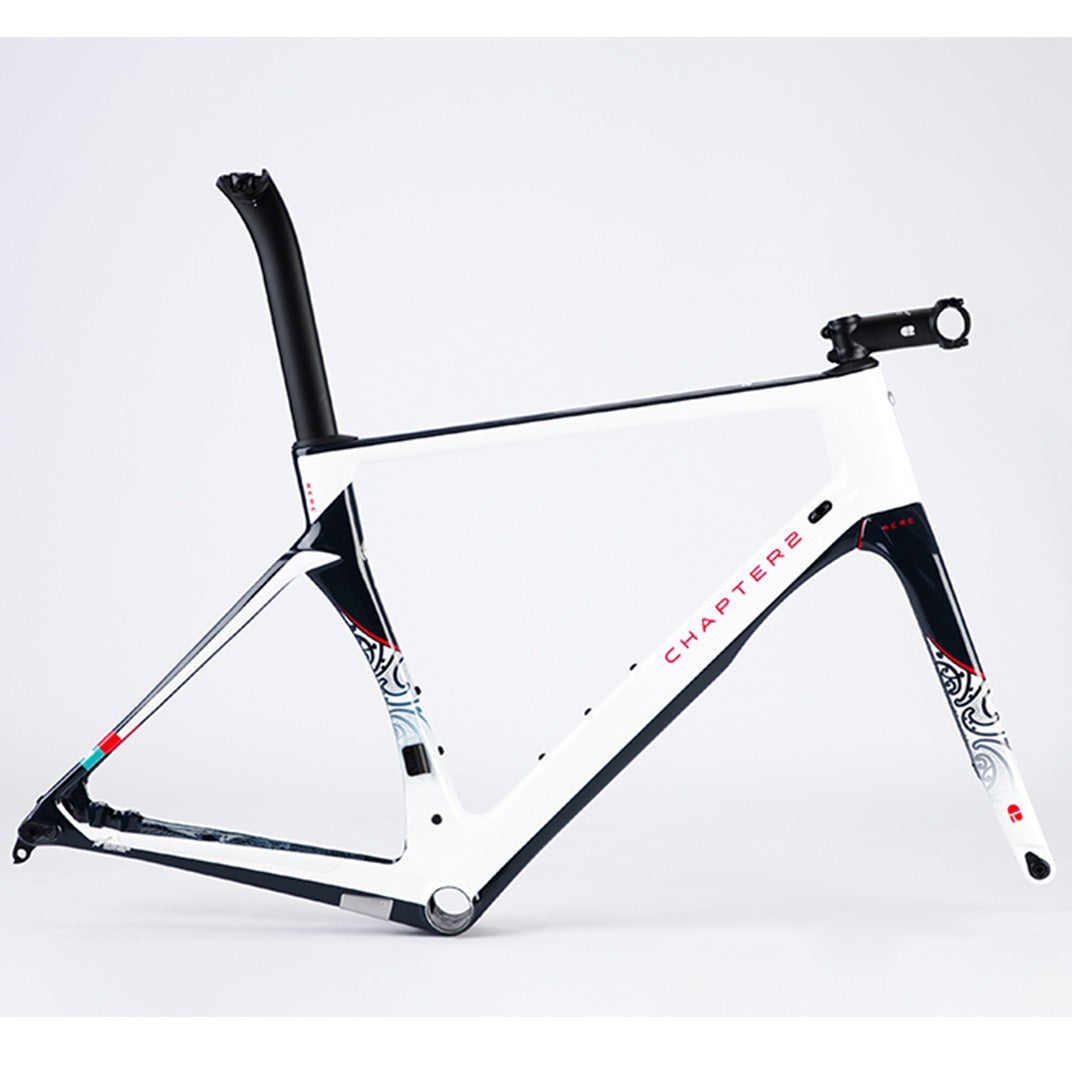

Chapter2 RERE Aero Road Disc Brake Frameset - Blue and White

118052FSZZZ16_XS

Sale priceRs. 273,500.00
/
Tax included. Shipping calculated at checkout.

Size

About the Frame:

If raw speed is what you’re all about, the RERE has been designed with you in mind. RERE means “Flow” in Maori which perfectly defines its aerodynamic credentials. The RERE has been the weapon of choice for anybody looking for a performance edge.

The RERE is positioned in our Aero Road category of frame platforms. Whilst most manufacturers have been extolling the virtues of Kamm-Tail aero frames, we went against the grain and developed a pure Aerofoil frame that slices through the air, yet still delivers that silky smooth ride quality.

Developed in the Auckland University Wind Tunnel, the RERE is the perfect combination of aerodynamic sculpting to deliver pure speed yet has compliance features seamlessly fused into its tube profiles, such as the narrow and slightly kinked Seatstays that dampens any rough road conditions.

The RERE is available in both Rim (Direct Mount) and Disc versions to provide stopping power and tire clearance expected of a frame platform design for those long breakaway moments. Both the Headtube and Bottom Bracket areas have been carefully reinforced with high-tensile directional carbon fibre to ensure the RERE tracks like it’s on rails and to converts every Watt you produce into forward motion.

Model Benefits:

  • Pure Aero (Not Kamm-Tail): Developed at Auckland University’s Wind Tunnel
  • Rear Wheel Cut-Out: Improved Aerodynamics
  • Kinked Seatstays: Improved Compliance
  • High Modulas Carbon (Headtube): Increased Cornering Performance
  • High Modulas Carbon (BB): Increased Power Transfer
  • Reversible Seatpost: Saddle Forward by 34mm for TT/Tri
  • Rim & Disc Options: Only Disc Brake Option available in this colour
  • Sloping Toptube: Stiffer Front Triangle & Increased Standover Height
  • Frameset Only: Bespoke & Personal
  • Limited Edition: Exclusivity

What you Get:

  • Frame
  • Fork
  • Stem
  • C2 fork expansion bolt
  • Headset
  • Headset spacer kit
  • Seatpost
  • Thru Axles

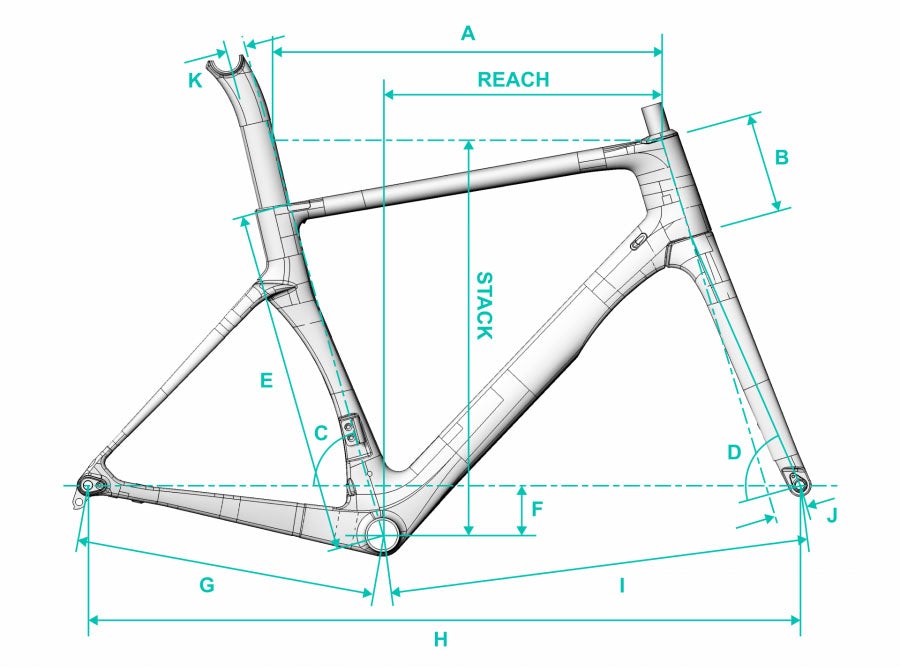

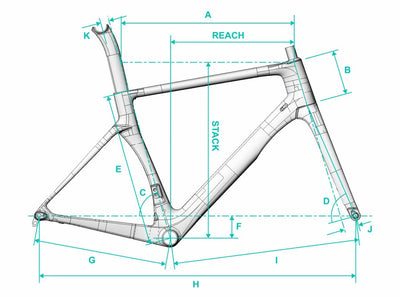

Sizing Information

Note: All dimensions are in mm unless otherwise mentioned

Ref Size XS S M L XL
A Top Tube Length 516 530 548 564 582
B Head Tube Length 98 118 138 163 189
C Seat Tube Angle 73 73 73 73 73
D Head Tube Angle 70 72 73 73 73
E Seat Tube Length 427 447 472 497 521
F BB Drop 68 68 68 68 68
G Chainstay Length 405 405 405 405 405
H Wheelbase 970 970 970 982 999
J Fork Offset (2 Forks) 53 53 43 43 43
K Seatpost Setback 15 15 15 15 15
Stack 490 514 541 566 591
Reach 365 372 382 391 400
Stem 80 90 100 110 120
Standover Height 756 778 800 823 846

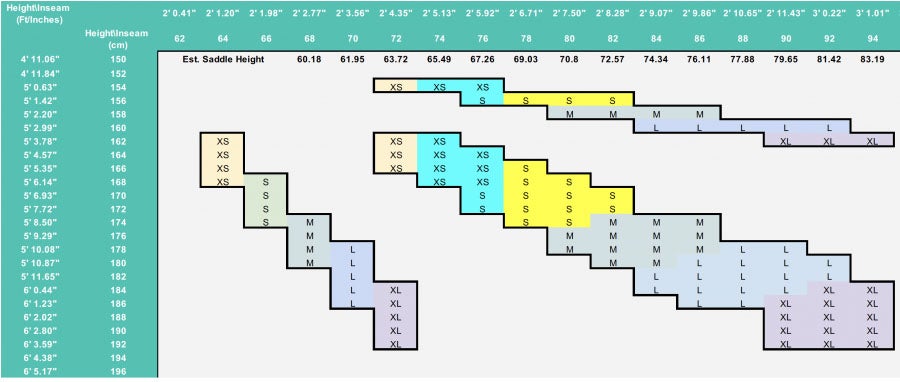

Rider Height (cm) <170 165-175 170-180 175-185 >180

Frame Specs:

  • Carbon: Toray® T700, T800 & 3K Directional Carbon
  • Frame 5 Sizes: XS, S, M, L & XL
  • Fork 2 Sizes: XS, S (53mm offset) and M, L, XL (43mm offset)
  • Frame Weight: 998g (Rim) Size M & 1050g (Disc) Size M +/- 3%
  • Fork: 390g (Rim) & 425g (Disc) Uncut +/- 3%
  • Seatpost: Reversible Seatpost 198g +/- 3%
  • Stem: 80mm, 90mm, 100mm, 110mm and 120mm (+/-7°)
  • Headset: CHAPTER2 Tapered 1-1/8” – 1.5”
  • BB: Press Fit BB86.5
  • Electronic Shifting: SHIMANO® Di2, SRAM® eTAP & Campagnolo® EPS compatible
  • Battery Type: Di2 SM-BTR-2 and EPS V3 Battery compatible
  • Tire Clearance: 28mm
  • Saddle Rail: 7mm Round & 7x9mm Oval
  • Disc Thru-Axle Spec: Flat Mount, FR 12x100mm, RR 12x142mm,E-Thru M12x1.5mm
  • Safety Standard: EN ISO 4210:2014
  • UCI Accreditation: UCI Approved

Torque Specs:

  • Saddle Rail: 12Nm
  • Integrated Seatclamp: 7-9Nm
  • Stem (Steerer): 6Nm
  • Stem (Handlebar): 6Nm
  • Front Derailleur Hanger: 3Nm
  • Rear Derailleur Hanger: 2Nm
  • BB Cable Guide Cover: 1Nm
  • Water Bottle Cage Bolts: 3Nm
