In the never-ending search for more speed via optimised Aerodynamics, CHAPTER2 introduces the MANA which means “power” in Maori.

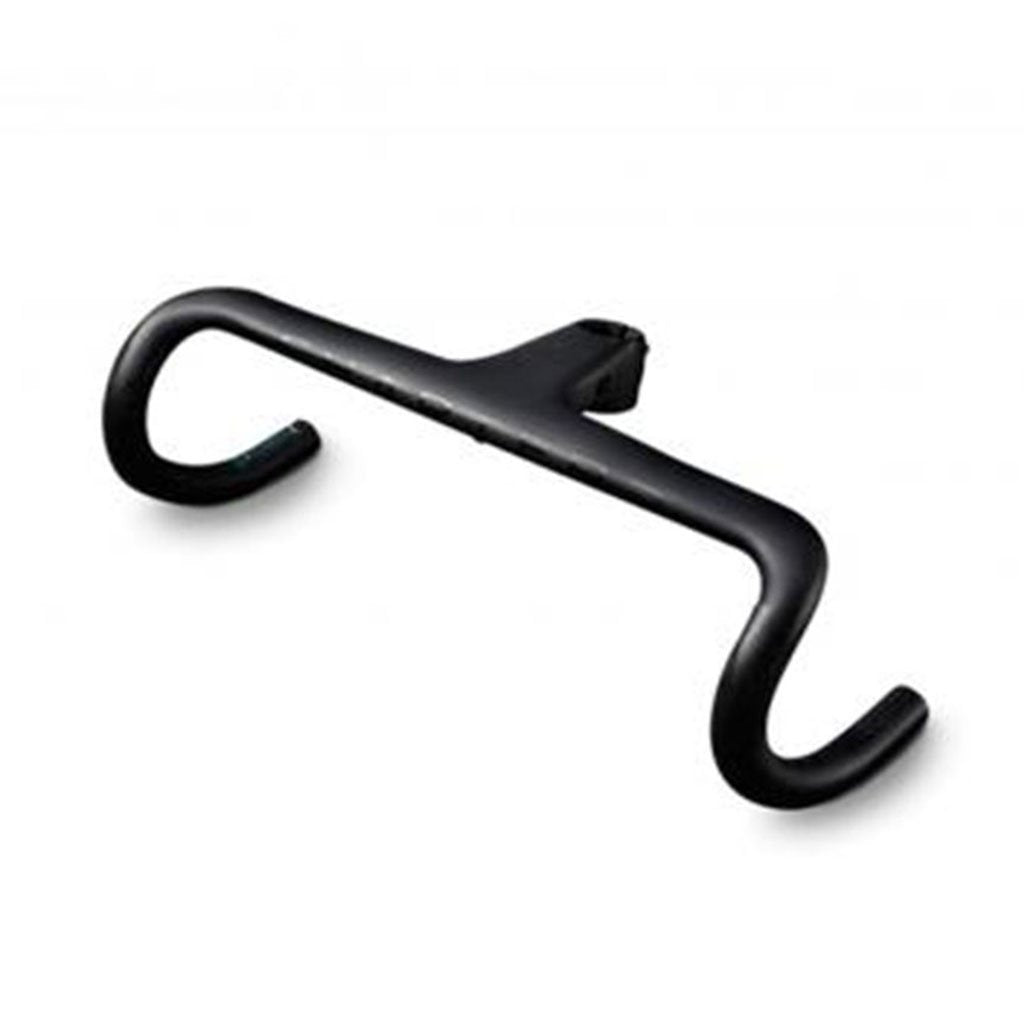

The Integrated Bar + Stem combo allows air to flow over it smoothly, creating a seamless and elegant cockpit made 100% from TORAY® Carbon and tested to EN ISO 4210:2014. The careful use of specific carbon lay-ups made in Japan creates just the right blend of stiffness for accurate and predictable steering yet enough “give” to take the sting out of any uneven road surfaces.
Whilst other manufacturers have opted to pair their Bar and Stem combo to a specific model of frame, we have taken a more inclusive approach, designing the MANA to not only work fluidly with the RERE but also with the TERE and any other road frame employing a 1-1/8” fork steerer tube.
In order to give you the flexibility to use the MANA with CHAPTER2 frames and other road frames, we purposely opted to create a more user/travel-friendly cable routing method which your local bike shop/mechanic will undoubtedly thank you for.
Finally, with the adoption of trigger-happy electronic shifting and the use of out-front GPS devices for those Strava® moments, the CHAPTER2 Bar + Stem combo comes ready to install Shimano® EW-RS910 bar end mounted Junction Box and Barfly® or K-Edge style GPS mounts respectively.
- Carbon: Toray® Uni-Directional Carbon
- Sizes (mm)(Stem Length/Width Drops c-c): 80/400, 90/400, 100/420, 110/420, 120/440
- Weight (g): 330g(100-420mm)
- Spacers: Carbon 2x10mm, 1x5mm & 1x5mm (Curved)
- Steerer: 1-1/8″
- Safety Standard: EN ISO 4210:2014
- GPS/Computer Mount: Not included
We have test and can recommend the following suppliers (select outfront/integrated bar/stem type mount):
- 80 x 400
- 90 x 400
- 100 x 420
- 110 x 420
- 120 x 440
