Chapter2 AO Gravel Disc Brake Frameset - Silver Matt

badge
badge
badge

118072FSZZZ05_XS

Regular price Rs. 291,900.00 Sale priceRs. 262,000.00 Save 10%
/
Tax included. Shipping calculated at checkout.

Size

About the Frame:

Adventure! We all love it, we all seek it, but having the right tool for the job means that adventure can mean different things to different people. The AO is the Swiss Army knife of the Gravel genre. AO means “Earth” in Maori and New Zealand’s rugged landscape became the brief in developing one of the most versatile Gravel frames in the market.

Each year hundreds of adventurers embark on the Tour of Aotearoa, a 3,000km race from the tip of the North Island to the southernmost part of the South Island. Along the way, competitors will traverse some of the most spectacular and rough roads and terrains.

The AO has been specially designed to excel in all the variable conditions. With 42mm tire clearance with 700C wheels and the ability to accept 650B wheels at 47mm tire clearance, the AO can be fitted with 5 water bottles, dropper post, panniers, and mudguards making it an adventurer’s perfect multi-tool.

Whether you are racing fast gravel events or long distance brevets the AO’s ability to adjust its rear centre by up to 15mm will let you adjust its agility levels to suit your every need and desire, including running road tires for that one bike does it all quiver killer.

Model Benefits:

  • Versatility: Designed for Gravel Racing & Adventure Riding
  • Adjustable Rear Centre: Adjustable Steering Agility
  • Tire Clearance: Up to 42mm (700C) & 47mm (650B) Tire Clearance
  • Wheel Options: Compatible with 700C & 650B Wheels
  • Pannier & Mudguard Mounts: Tackle All Conditions & Travel Requirements
  • 5-Bottle Cage Mounts: For Carrying Extra Bottles & other Accessories
  • 31.6mm Seatpost Size: Industry Standard for Optional Dropper Post

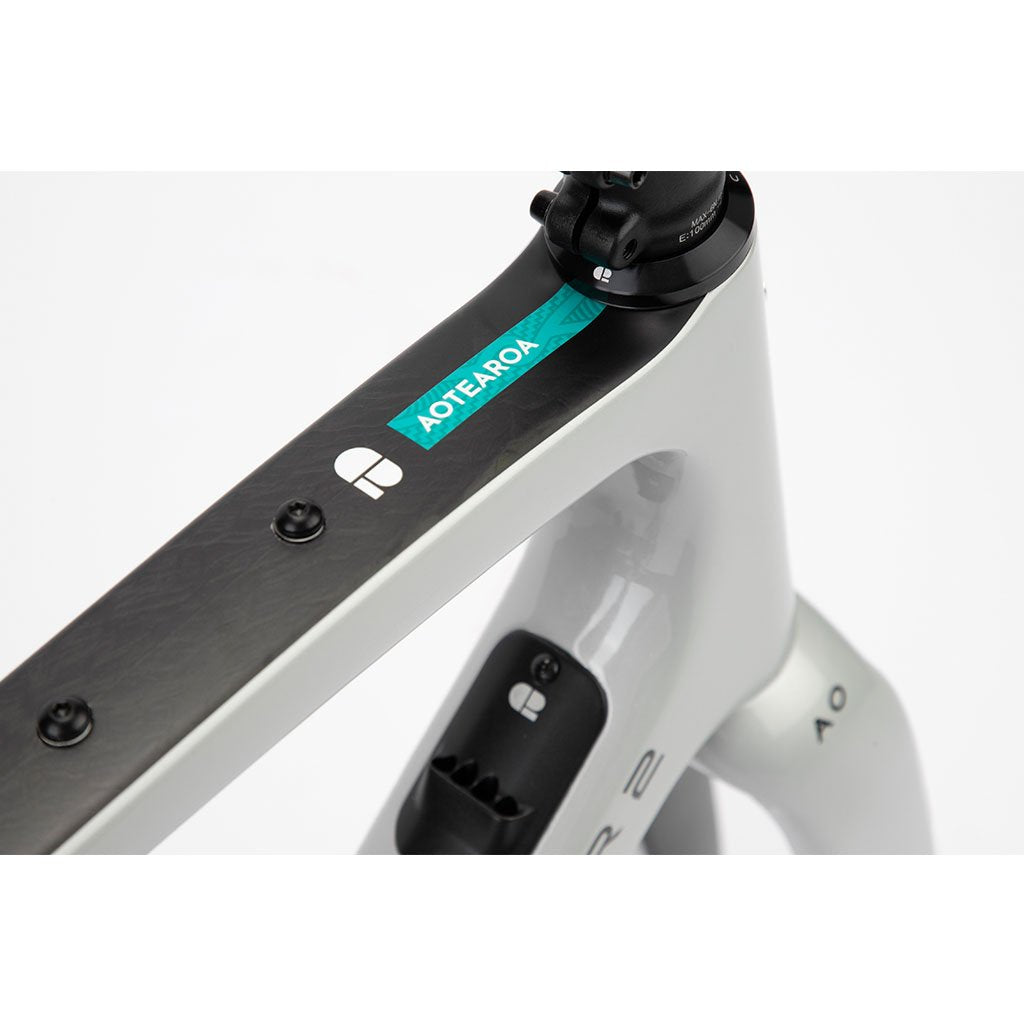

  • Bento Box Mount on Top Tube: Extra Storage Space
  • 1X Option: Compatible with 1X Set-Up
  • Frameset Only: Bespoke & Personal
  • Limited Edition: Exclusivity

What you Get:

  • Frame
  • Fork
  • Stem
  • C2 fork expansion bolt
  • Headset
  • Headset spacer kit
  • Seatpost
  • Thru Axles
  • Wheels not included

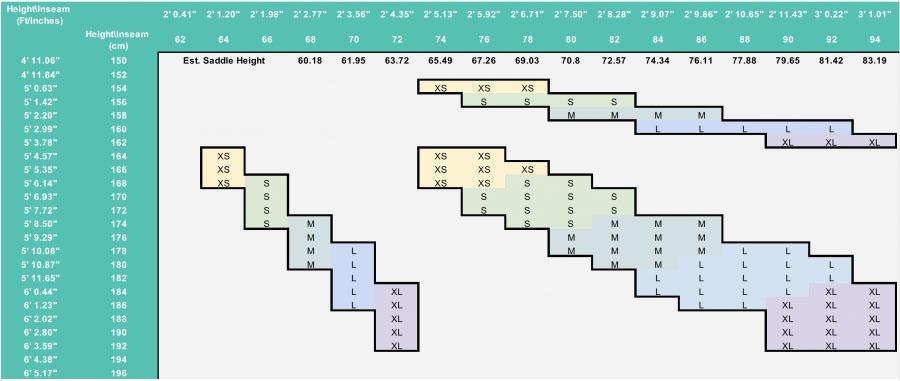

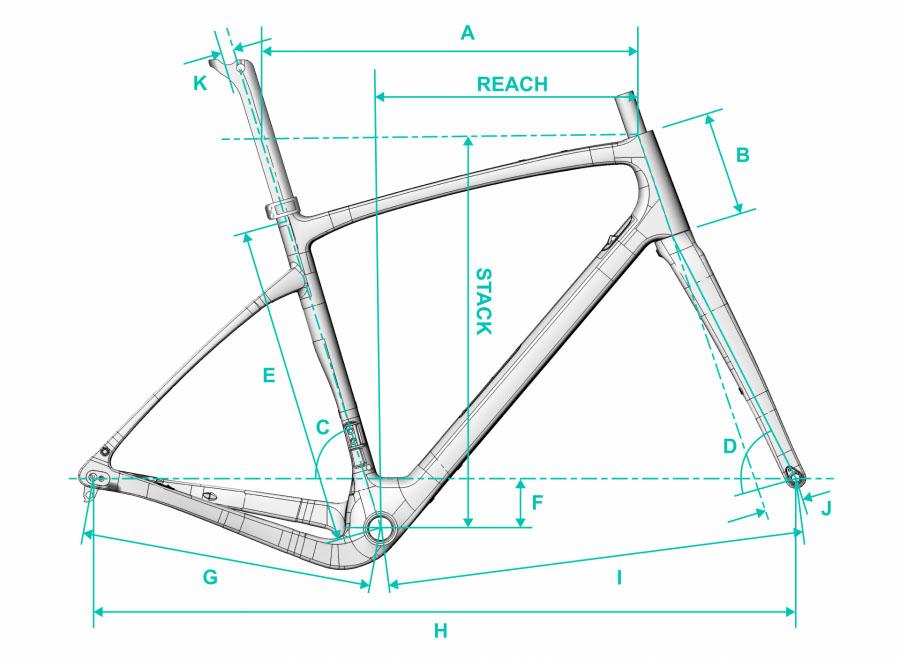

Sizing Information



Note: All dimensions are in mm unless otherwise mentioned


Ref Size XS S M L XL
A Top Tube Length 509 528 547 567 587
B Head Tube Length 105 130 155 179 209
C Seat Tube Angle 73 73 73 73 73
D Head Tube Angle 69 70 71 72 72
E Seat Tube Length 460 480 500 530 560
F BB Drop 74 74 74 74 74
G Chainstay Length 420 420 420 420 420
H Wheelbase 998 1010 1021 1026 1046
I Front Centre 589 601 612 617 638
J Fork Offset (2 Forks) 55 55 55 50 50
K Seatpost Setback 15 15 15 15 15
  Stack 521 548 576 605 634
  Reach 355 366 377 388 399
  Stem 80 90 100 110 120
  Standover Height 756 778 800 823 846
  Rider Height (cm) <170 165-175 170-180 175-185 >180
