Description

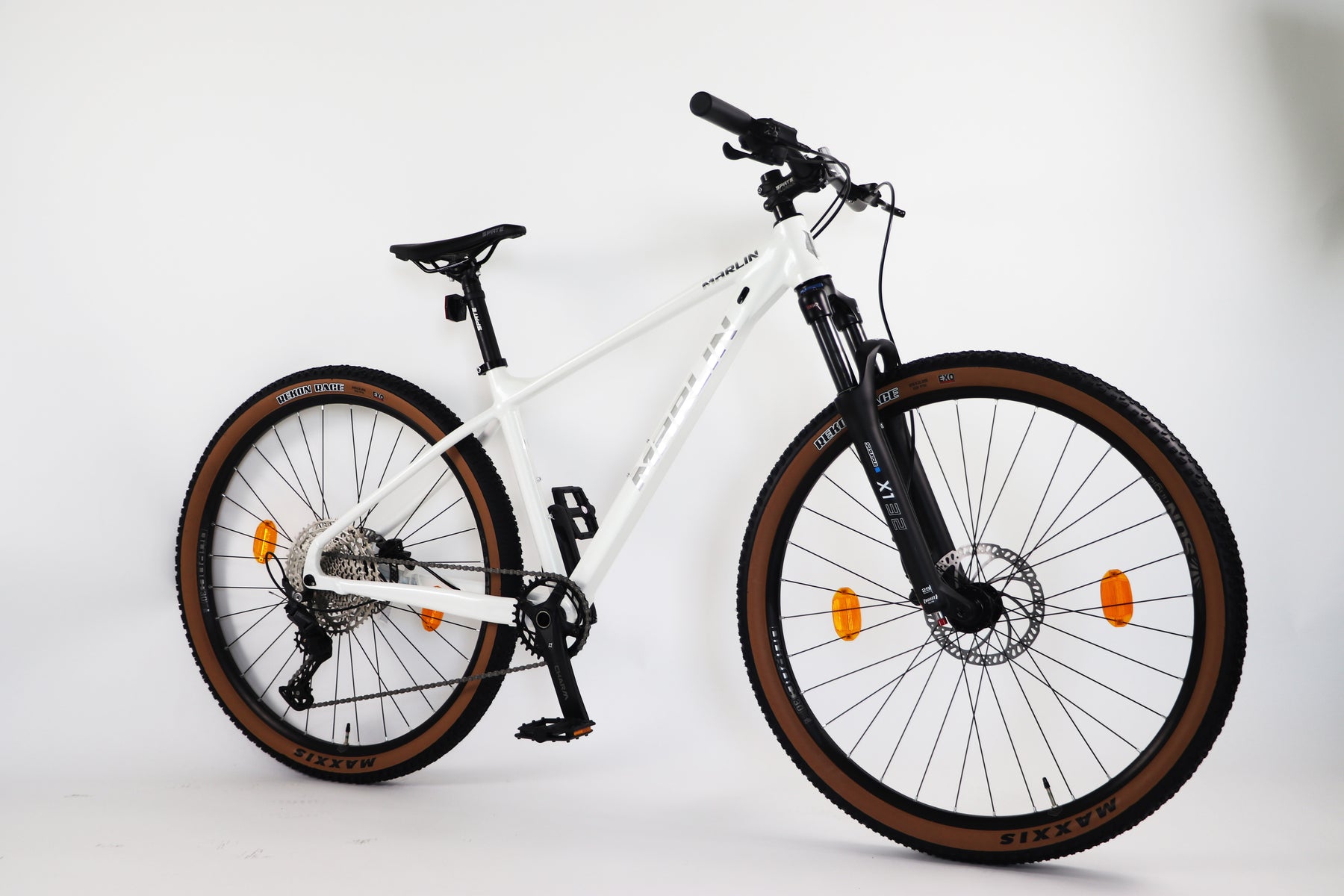

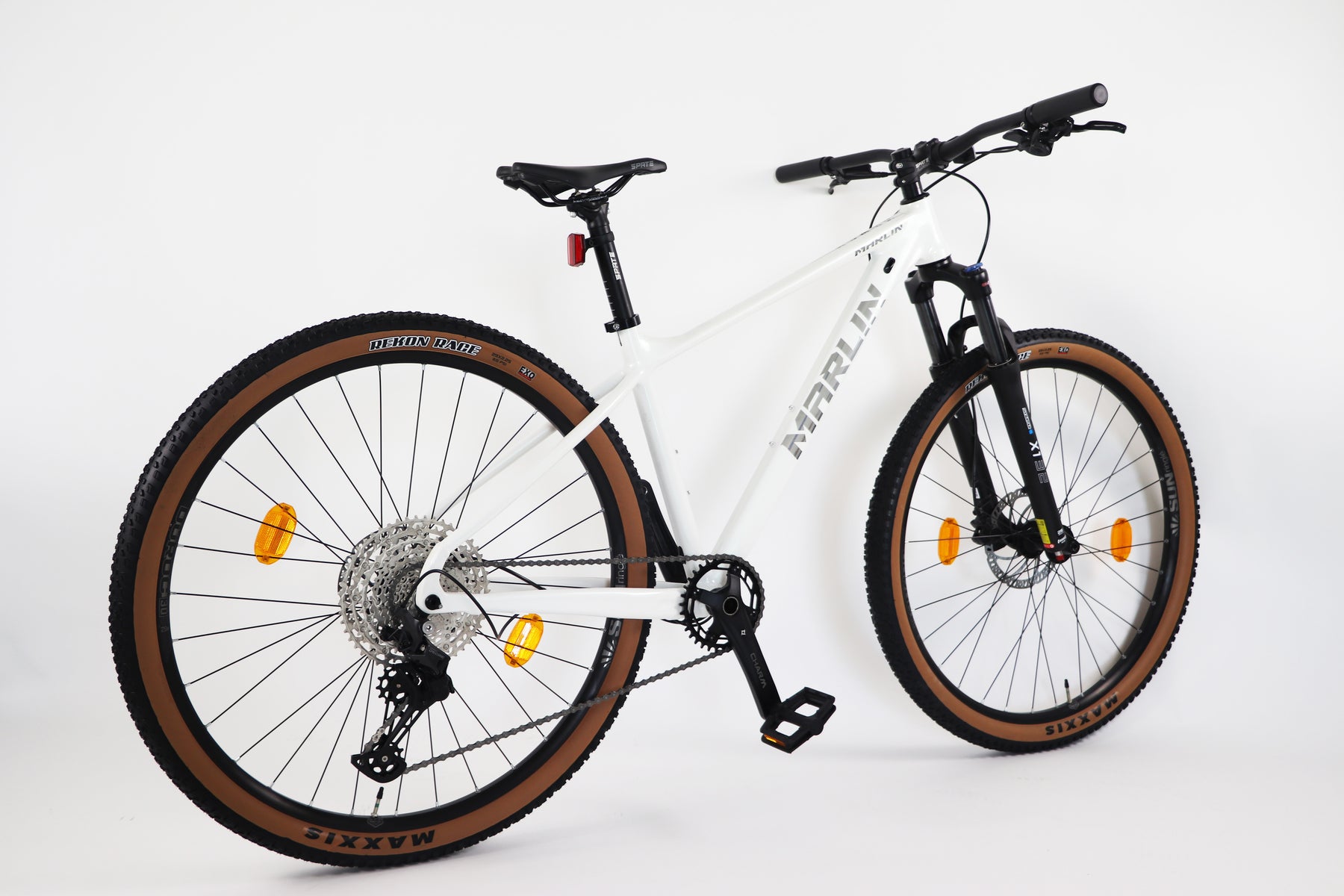

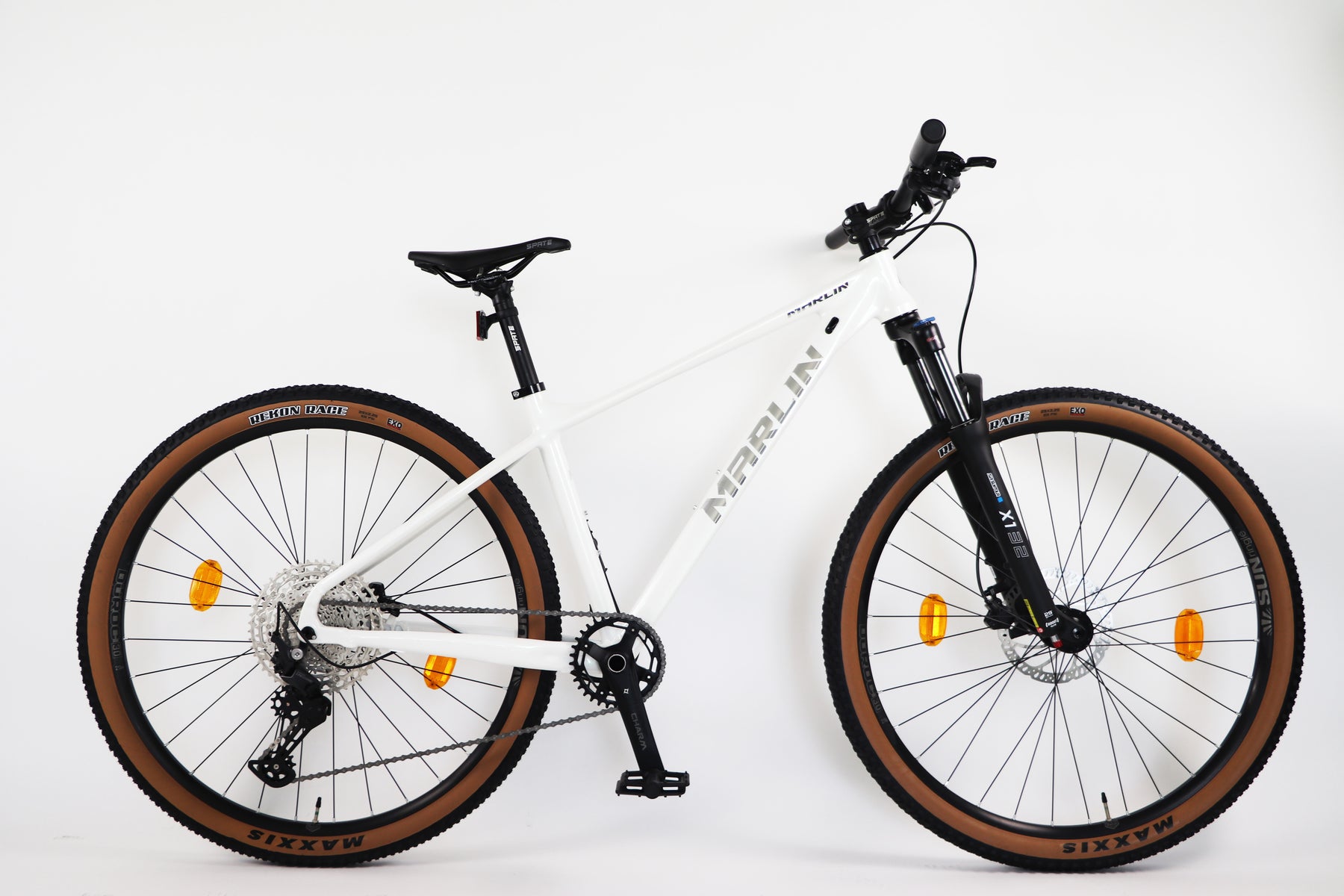

Marin Spear11 is a killer value, aggressive XC bike with on-trend tan wall Maxxis Rekon Race Tyres, a 1X drive train and a super-capable SR Suntour suspension Air fork that won’t let you down. Fast, comfy and fun. Light weight triple butted aluminum 6061 thru axle boost frame with latest shimano 1X drivetrain, SR/Suntour X1 32 thru axle boost fork. Shimano Deore 11-speed shifting, Tektro hydraulic brakes and Sunringle Duroc30 tubeless ready rims.
-
Frame: 6061 Aluminum, Triple Butted Frame with smooth weld and tapered headtube, Internal Cable Routing, 12x148mm Thru-Axle, 73mm Threaded BB, dropper post ready
-

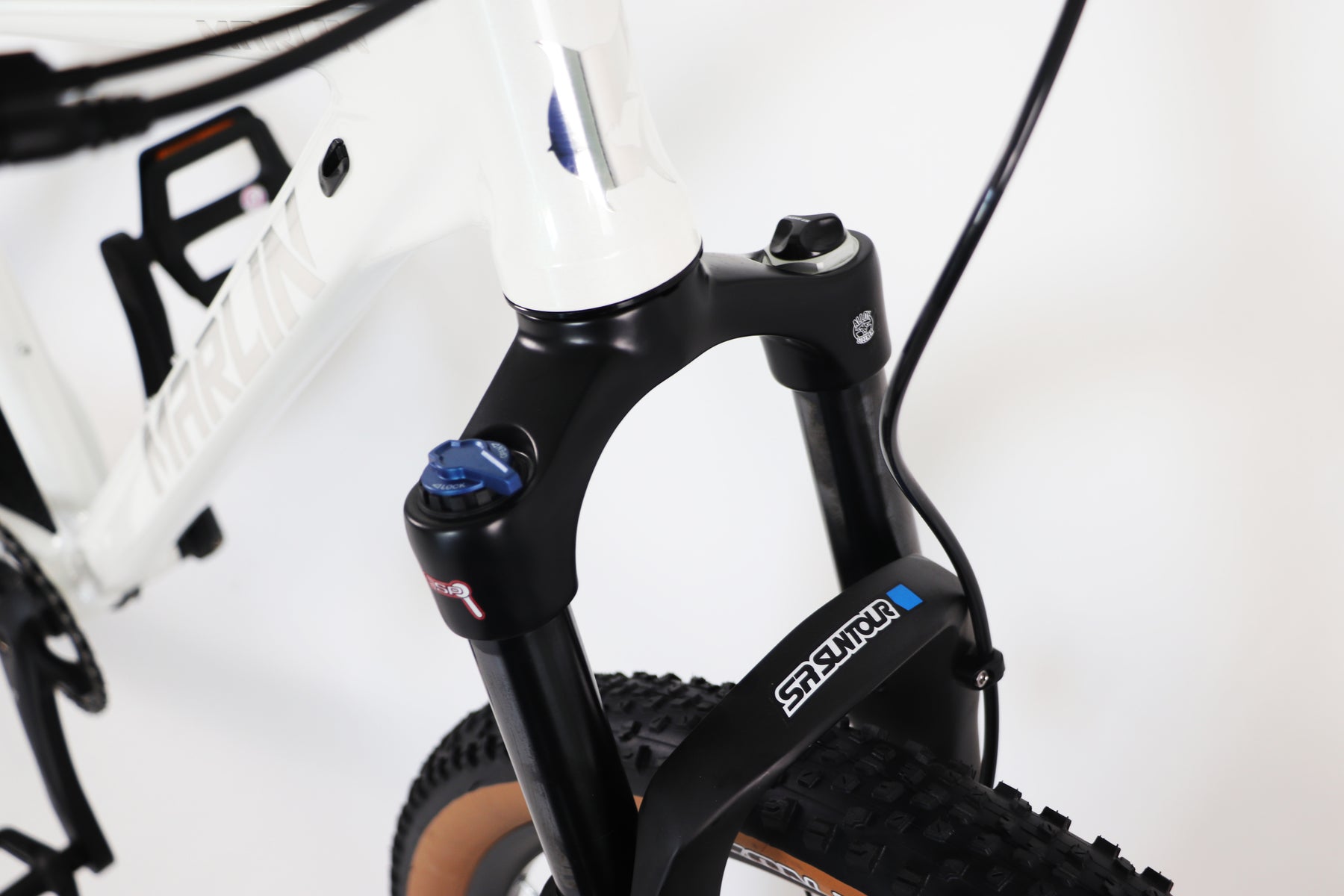

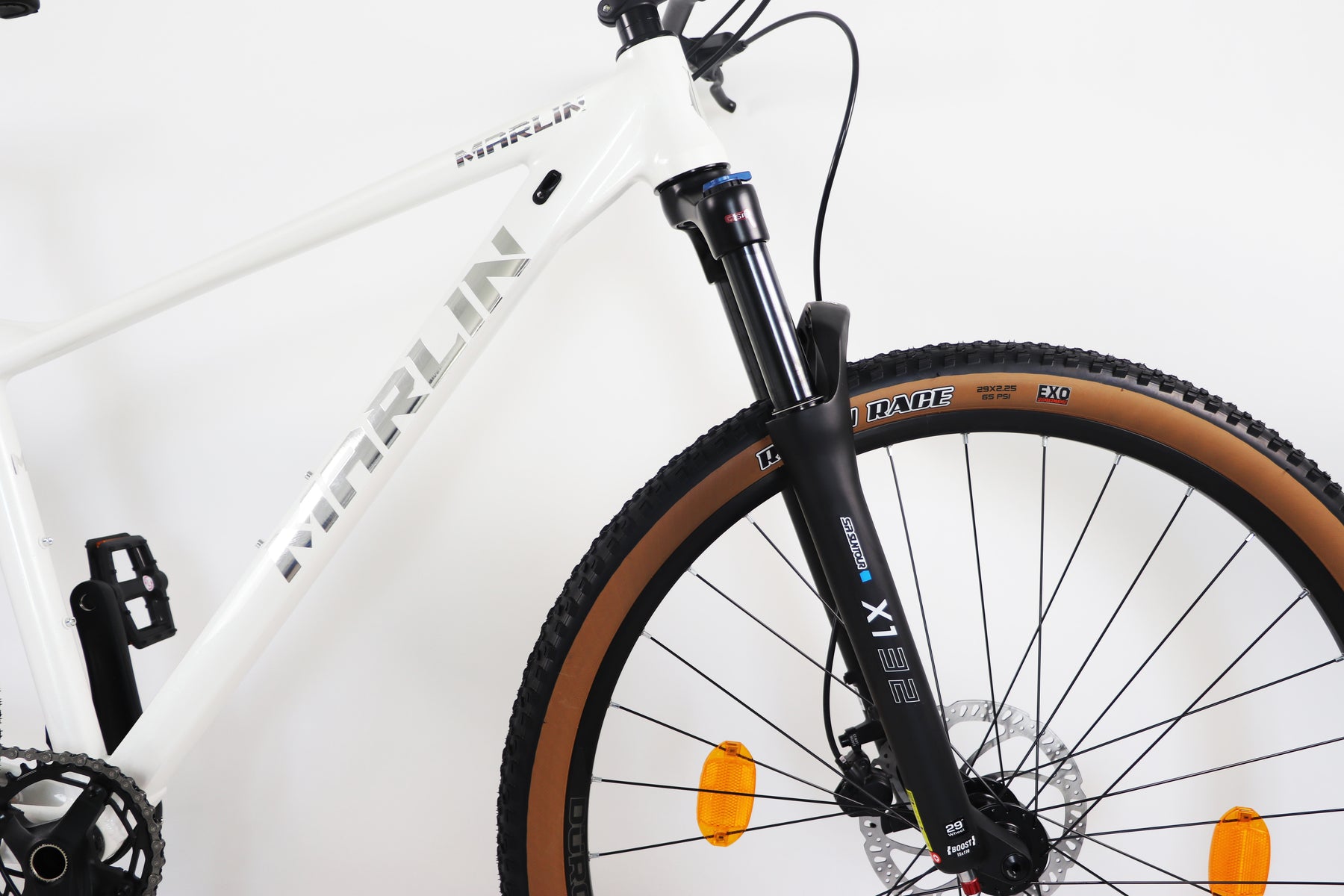

Fork: SR Suntour X1, 32 Boost Air fork, 100MM travel
-
Colour: Pearl White
-
Decal: Water Decal (Mirror)
- Drivetrain:
-
Shifters: Shimano Deore SL-M5100 11-SPEED
-
Crank: Prowheel CHARM-FD04S-TT with 34T
-

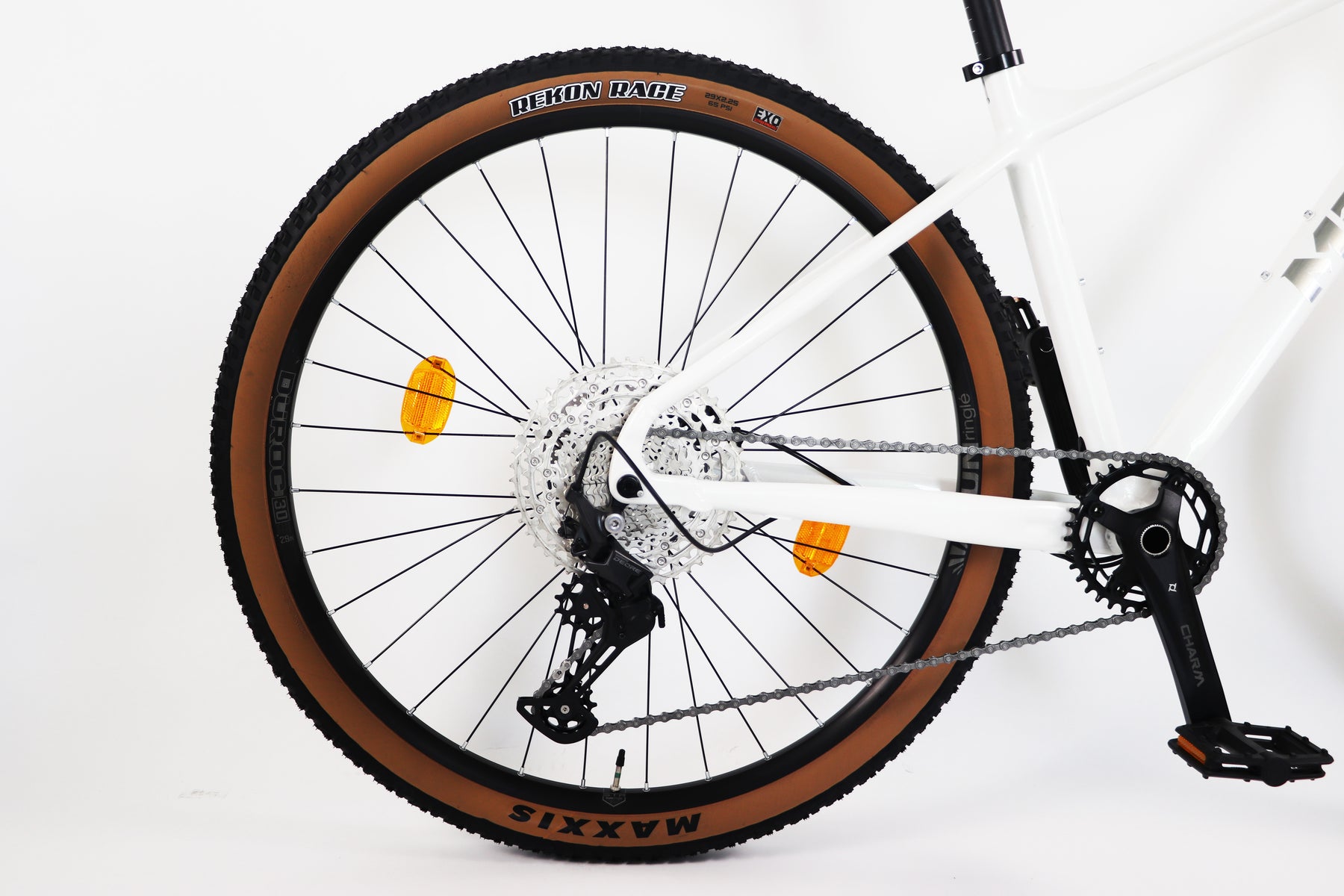

Cassette: Shimano Deore CS-M5100 11-51T 11-SPEED
-

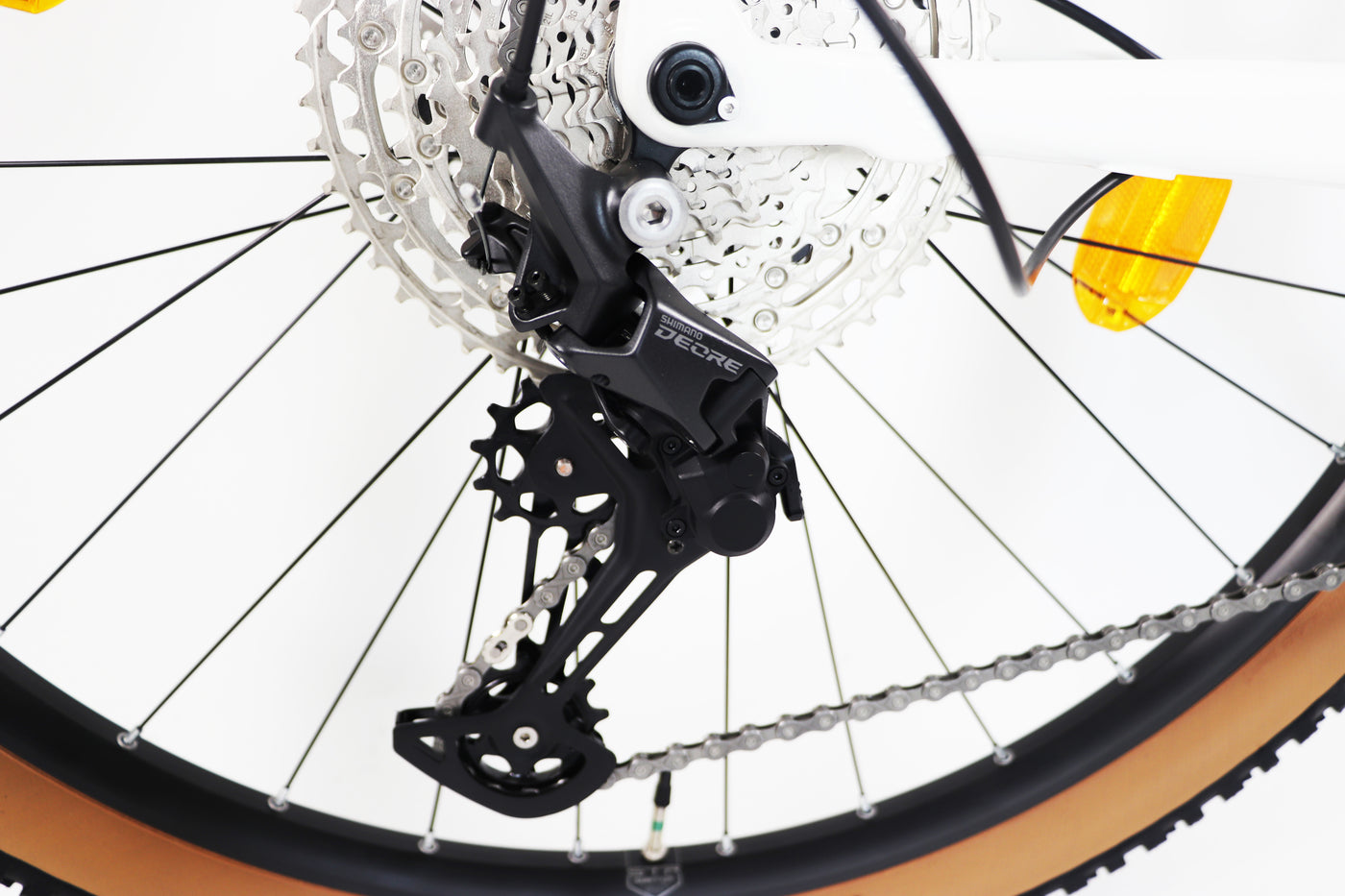

Rear Derailleur: Shimano Deroe RD-M5100 11-SPEED with clutch
-
Bottom Bracket: Prowheel HollowTech Sealed BB
-
Chain: KMC X-11
-
Pedals: Nylon, VP-536
- Cockpit:
-

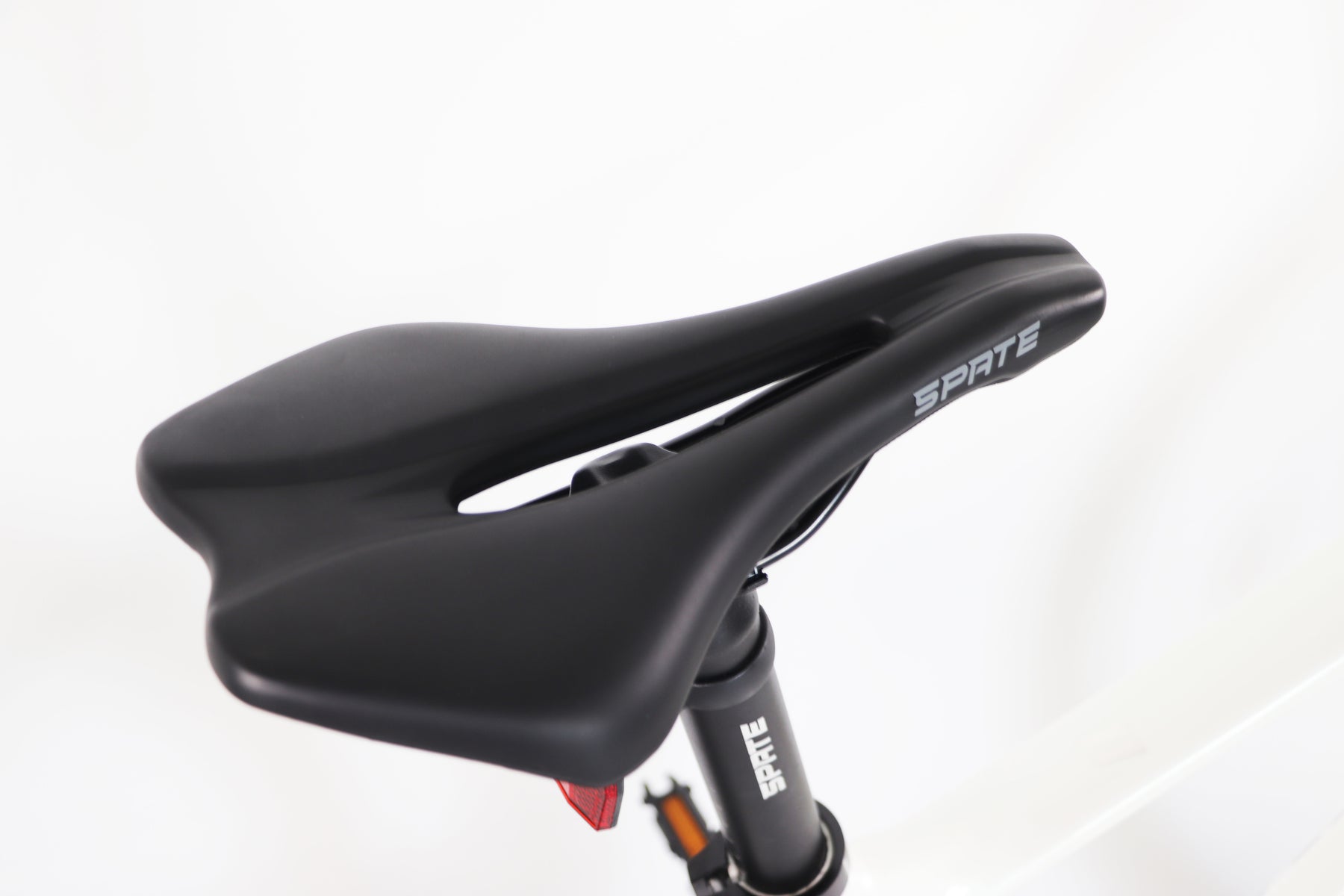

Saddle: Spate, Light weight Saddle
-

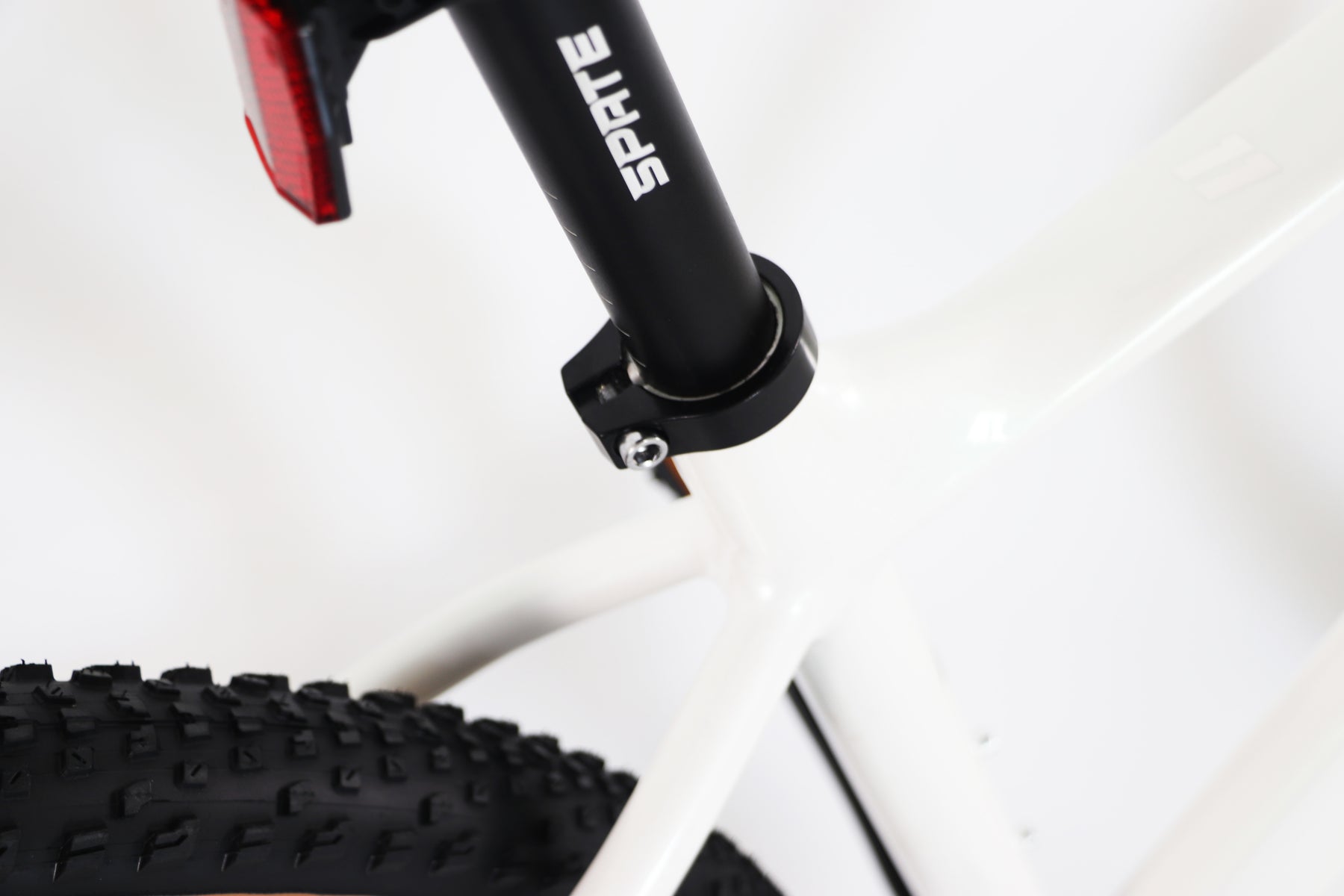

Seat Post: Alloy, 30.4x2.4Tx350mm with bolt
-

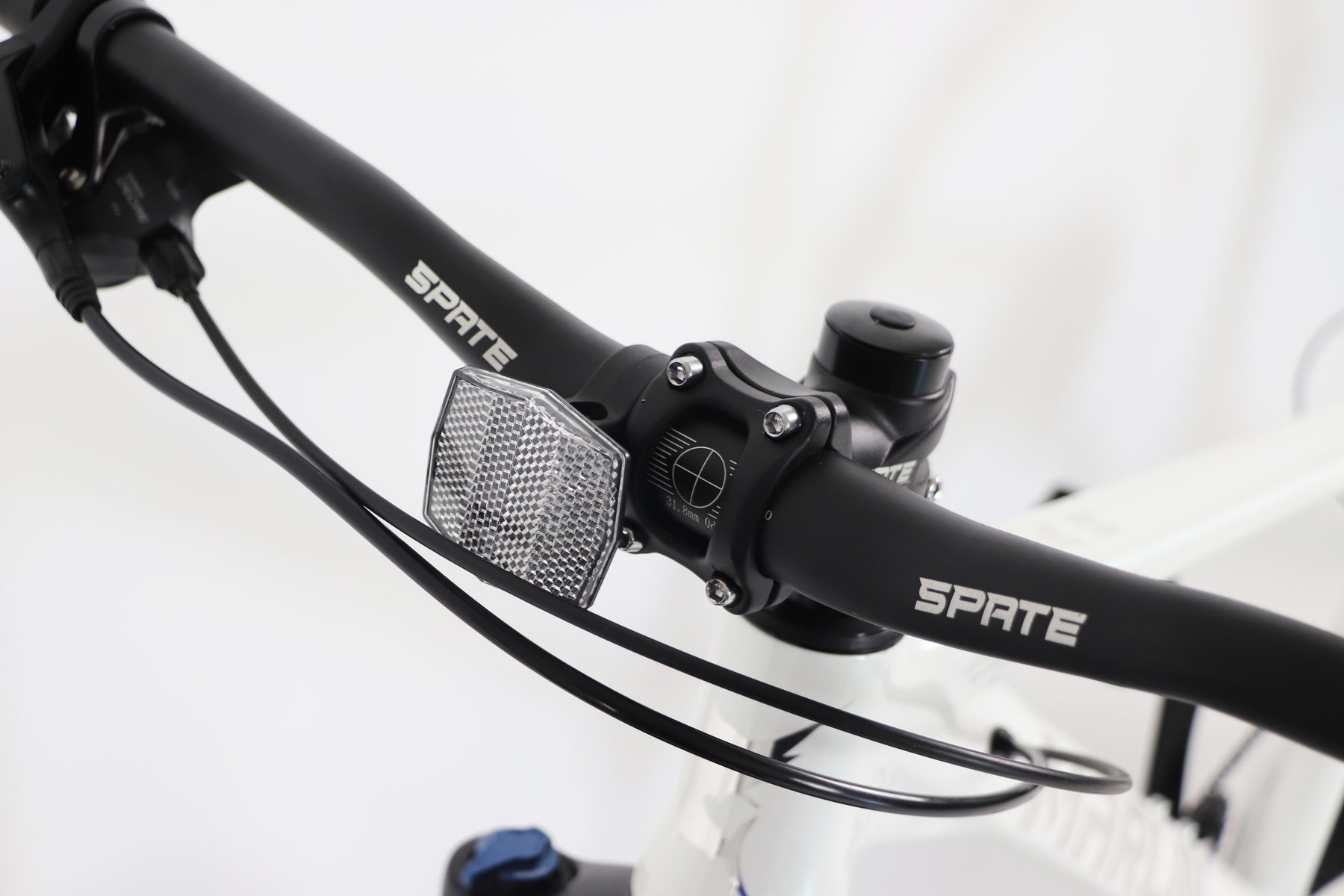

Handle Bar: Alloy31.8mm, 10mm rise, 760mm length
-
Head Set: Sealed bearing headset, 1-1/8” 44x55
-

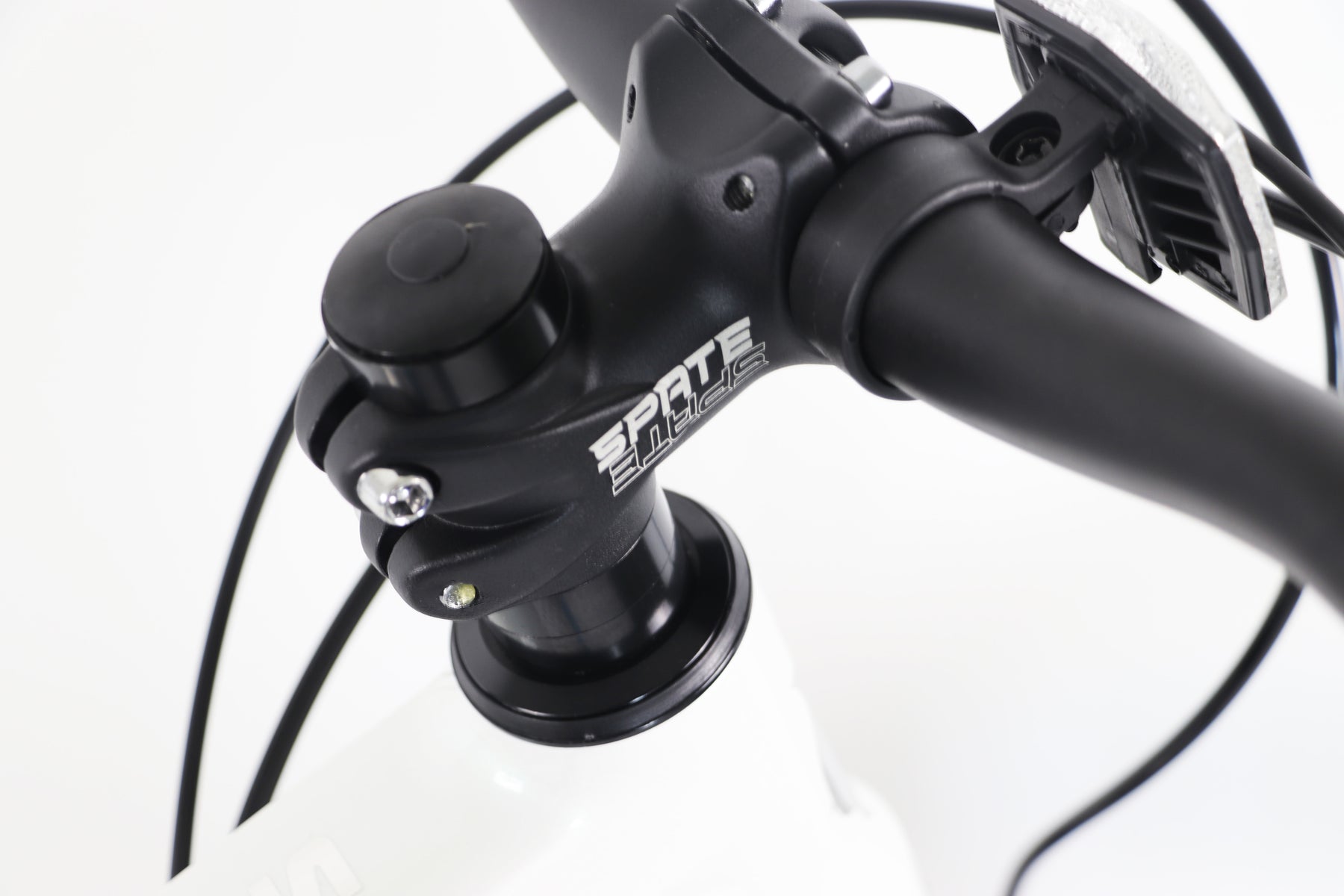

Stem: Alloy Stem with 7°rise/drop, 60mm length
-
Grips: NPY, Silicone Grips
- Wheel & Tire:
-
Rims: Sunringle Duroc30, tubeless ready, 32H
-
Wheel Size: 29 inch
-
F/R Hub: Solon DH908 BOOST, 4 Sealed bearing, thru axle hubs, 148 O.L.D
-
Spokes: Stainless Steel, G14
-
Tire & Tube: Maxxis Rekon Race, 29x2.25” EXO (Tan Wall), 60TPI
-
Brake Set:
-

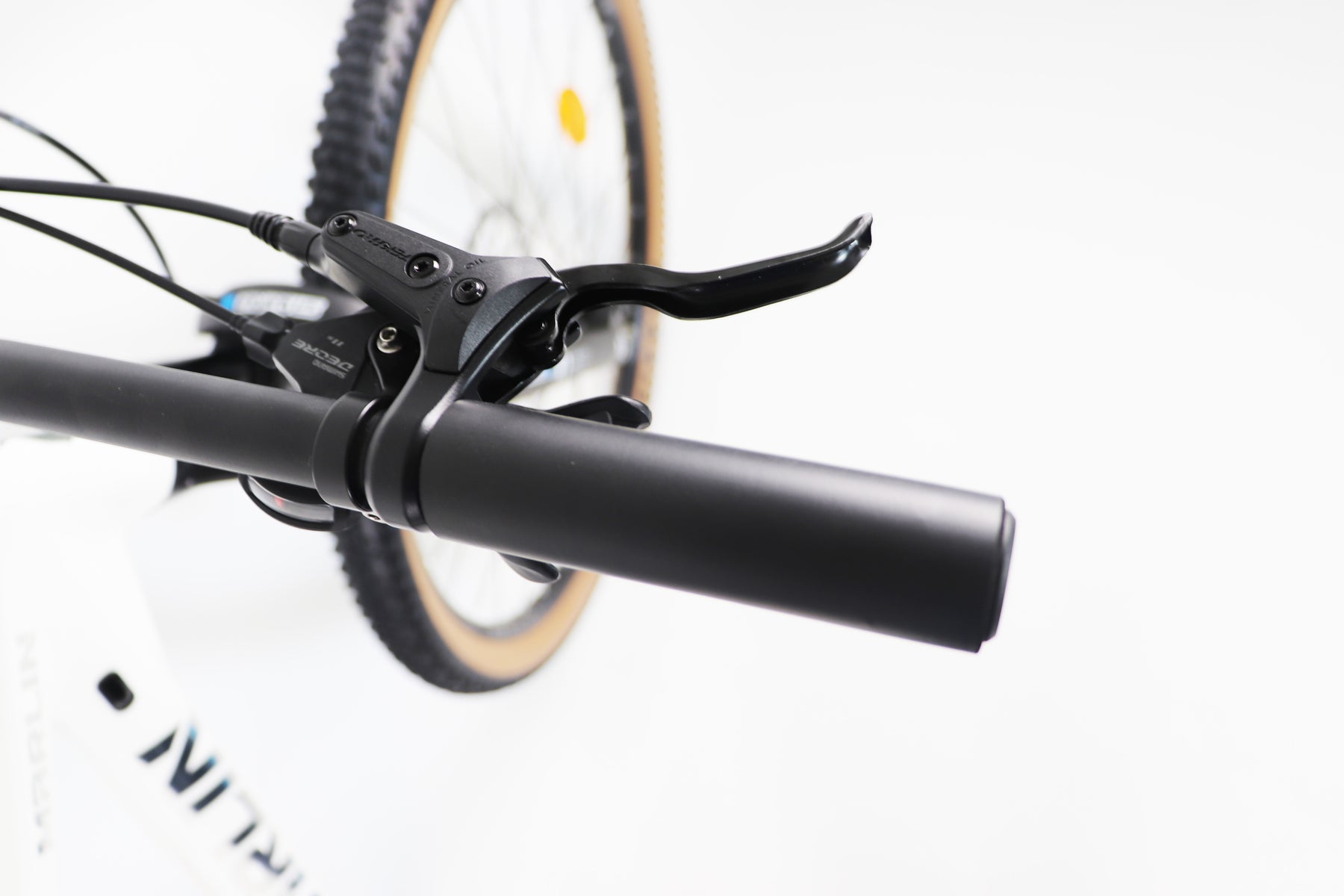

Brake Lever: Tektro HD- M275
-

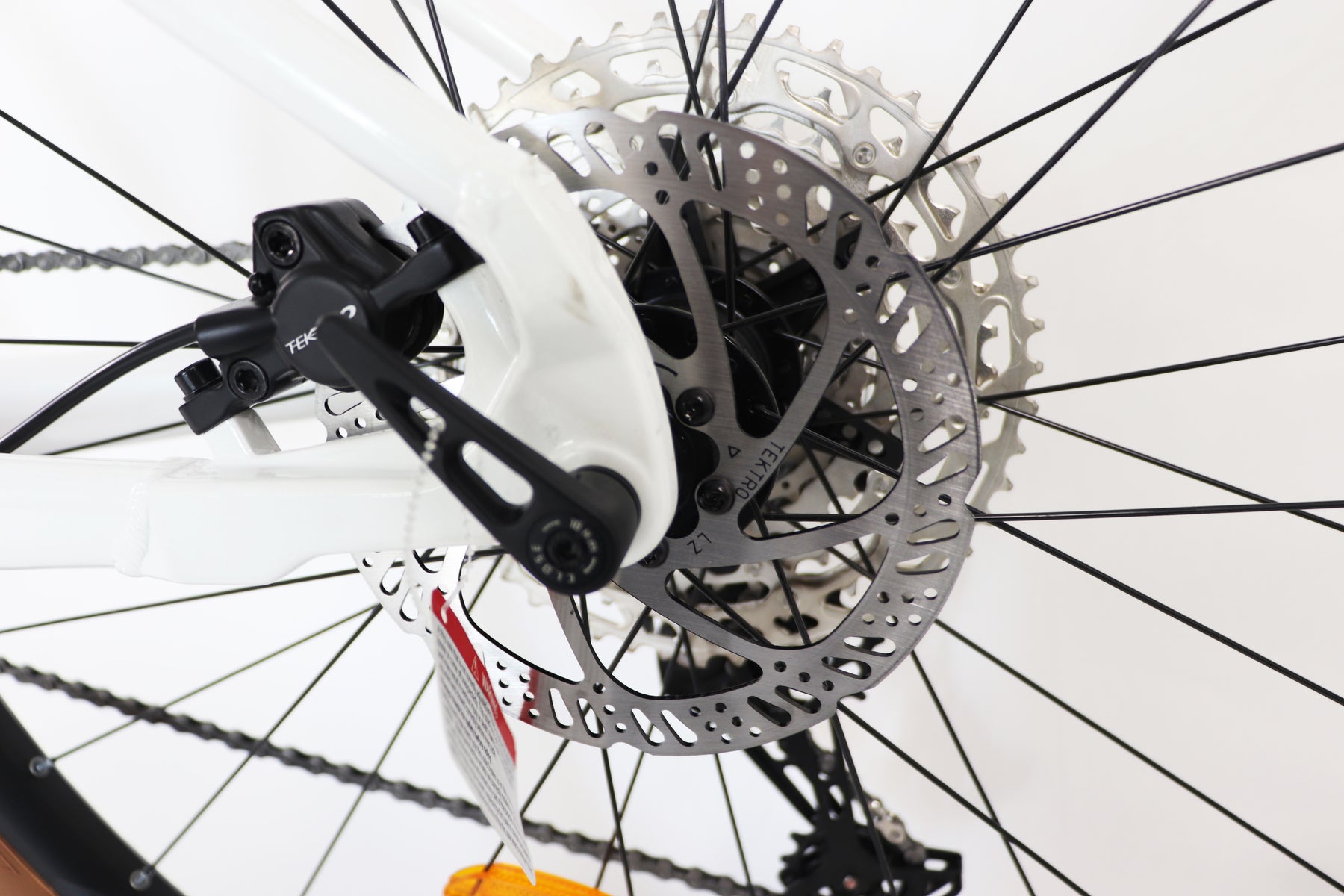

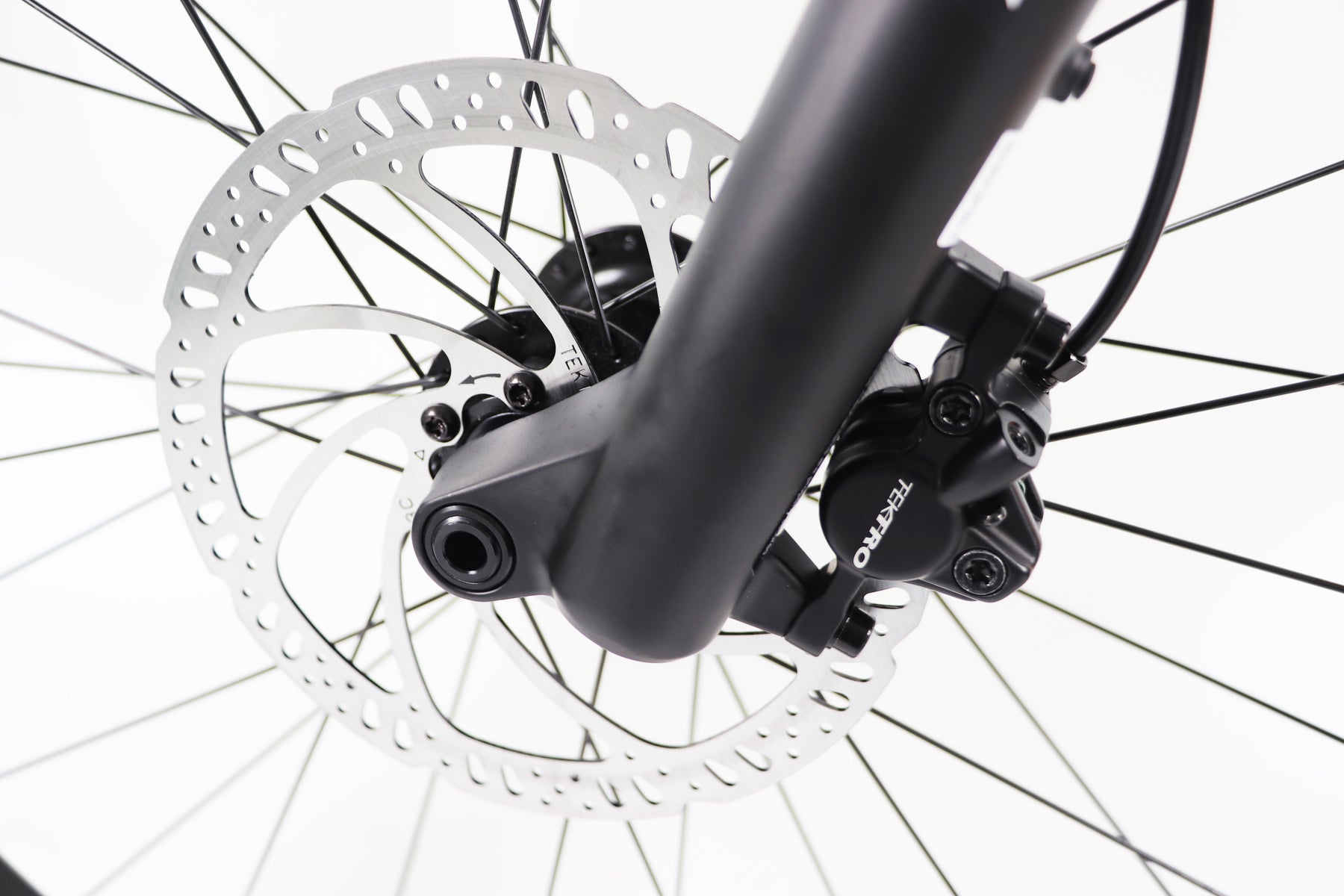

Brake Caliper: Tektro HD-M275 F/R Hydraulic disc brakes
-
Rotor: Tektro rotor, 180mm front and 160mm Rear
-
Accessories:
- Tool Kit
- Reflectors
- Chain-stay Protector
-
Weight: 14.1 kilograms
-
Ideal Height: M(165-176cm), L(175-186cm)
-
Max Weight: 130 kilograms (including bike weight)
Geometry & Size:
|
MM
|
M
|
L
|
|
Height(cm)
|
165-176
|
175-186
|
|
Seat Tube Length(A)
|
432
|
483
|
|
Seat Tube Angle (B)
|
73
|
73
|
|
Effective Seat Tube Angle (C)
|
73
|
73
|
|
Head Tube Length (D)
|
100
|
100
|
|
Head Tube Angle (E)
|
68.5
|
68.5
|
|
Effective Top Tube (F)
|
584.6
|
609.6
|
|
Bb Height (G)
|
308
|
308
|
|
Bb Offset (H)
|
60
|
60
|
|
Chainstay Length (I)
|
455
|
455
|
|
Wheelbase (J)
|
1106.5
|
1131.5
|
|
Frame Reach (K)
|
398.9
|
423.9
|
|
Frame Stack (L)
|
607.6
|
607.6
|
|
Standover Height (M)
|
715.6
|
755.5
|
