Tektro Orion Hydraulic Disc Brake System - HD-M745
ABHD000707

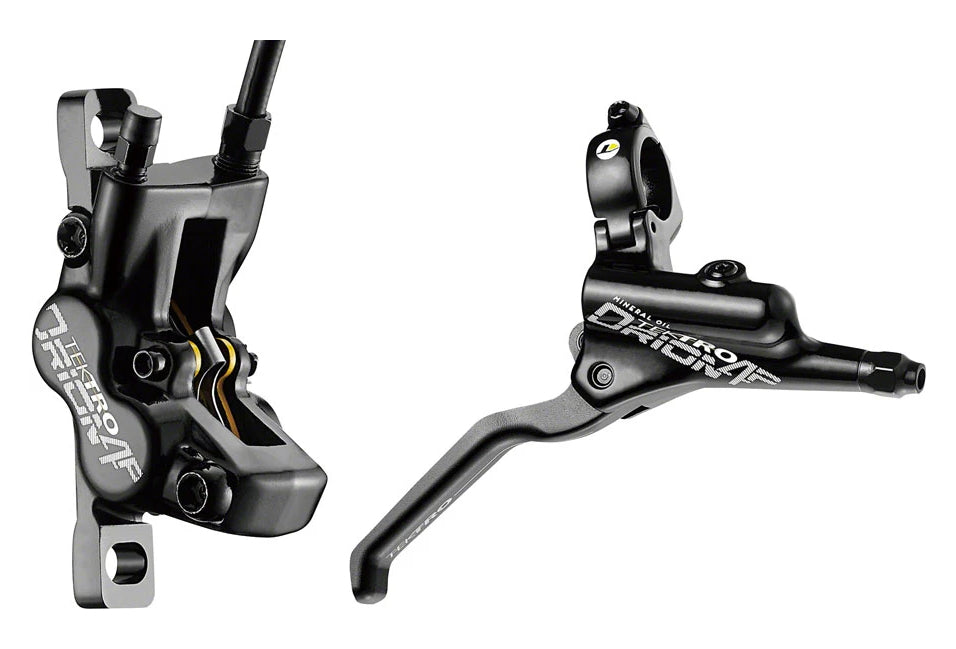

More pistons equals greater stopping power, and that is exactly what you get with the Tektro Orion Hydraulic Brake System. Tektro is known for great value brake options and this 4 pot Trail/Enduro brake is just that. They not only have great stopping power but have some great features like a long reach lever that is adjustable. Using a non-corrosive mineral oil means maintenance is that little be easier. You can also combine the lever with Shimano's I-Spec II or Sram's Match Maker levers.
Features
- High power and controllable braking system
- Open System, 4 pistons
- Easy Installation, Adjustment And Maintenance

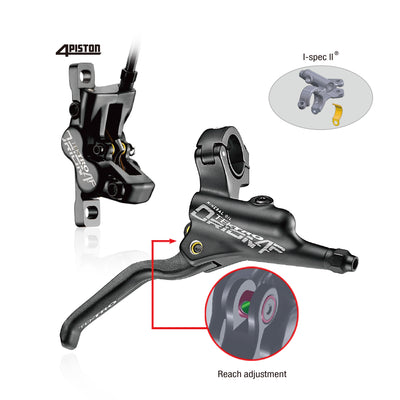

- The forged aluminum lever features a reach adjust mechanism
- Caliper is crafted from forged aluminum, and is designed for easy pad replacement
Specifications
| Rotor | 1.8mm thickness |

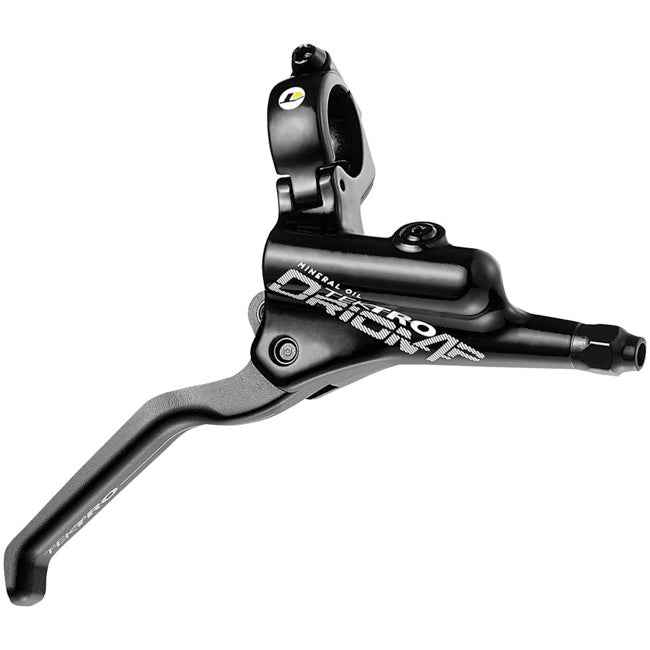

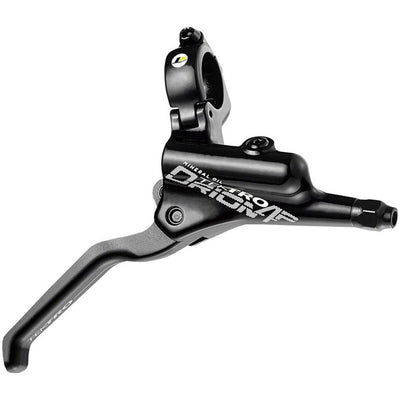

| Lever | Forge Aluminum Lever / Cast Aluminum Bracket Reach Ajustment Two-Piece Hinged Bracket 2 Finger Blade Finish : Black Compatible with I-spec II® & Matchmaker®
|

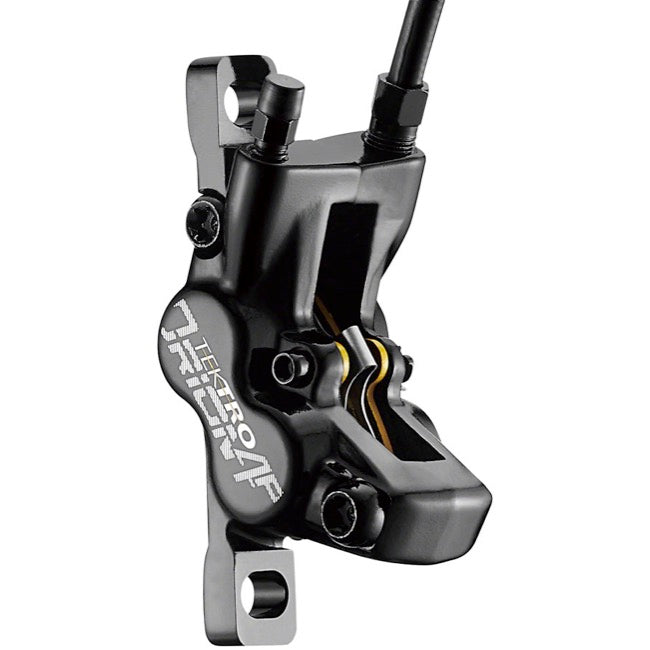

| Caliper | 4 Piston, Forged Aluminum Body Easy pads replacement from top Finish : Black |
| Pads | Overall balance resin pad Upload Replacement |
| Fluid | Non-Corrosive Mineral Oil Excellent Heat Expansion Properties |
| Weight | Front Wheel - 251 Grams / Rear Wheel - 271 Grams (Excludes Rotor, Adapter & Mounting Bolts) |
Package Includes(When both sides are bought)
- Brake caliper x2 (Front and Rear) - (Add both sides to the cart make it a pair)
- Brake lever x2 (Left - front and Right - rear)
- Hose x2
- Brake pad x2
Click Here for Installation Guide, User Manual & much more.
About Tektro
Founded in 1986, TEKTRO has more than 30 years of experience manufacturing the highest quality brake systems in the bicycle industry.
All TEKTRO products are made with extreme quality control. We believe man, with the help of automated machines, can cooperate to produce the best products. Every product is closely examined by a TEKTRO artisan who has more than a decade of experience.
In the future, TEKTRO will continue our human precision philosophy to deliver the safest and best performing brake products to the world.
Customer Reviews
Based on 3 reviews
33%
(1)
67%
(2)
0%
(0)
0%
(0)
0%
(0)
C
Shimano XT have always been my go to brakes. Unfortunately I was disappointed that these brakes came on a new bike, and so I was going to change them to XT. However, I have had several off road rides with these now and have come to appreciate how well they work.
The brake lever feel is smooth and progressive, and together with the callipers, these brakes perform faultlessly and have great stopping power. They don't have the nice finish of my XT brakes, but in my opinion the Tektro HD-M745 P4's simply perform far better: I am thoroughly impressed.
Save yourself lots of money and buy these.
B
Trustworthy 4 piston brakes only downside is brakes from third-party are costly please bring tektro brake pad for this
B
Trust worthy 4 piston brakes only downside is brakes from third-party are costly please bring tektro brake pad for this
