Shimano Deore BR-M6100 Hydraulic Disc Brake

EM61001JLFPRA100

Sale priceRs. 6,670.00
/
Tax included. Shipping calculated at checkout.

Type

2-Piston - ICE TECHNOLOGIES - Hydraulic Disc Brake Caliper

Shimano's Deore BR-M6100 Disc Brake delivers rapid and responsive braking performance to elevate your all-mountain riding experience. Leading the way is the Shimano's Servo Wave Action, which moves the pads quickly to the rotor contact point with minimal lever pull, leaving a broader range of the lever's stroke effective for braking while the pads are at the rotor interface -- essentially, more modulation. You're on the brakes faster and have more lever to squeeze to get the braking force for a specific section of trail.

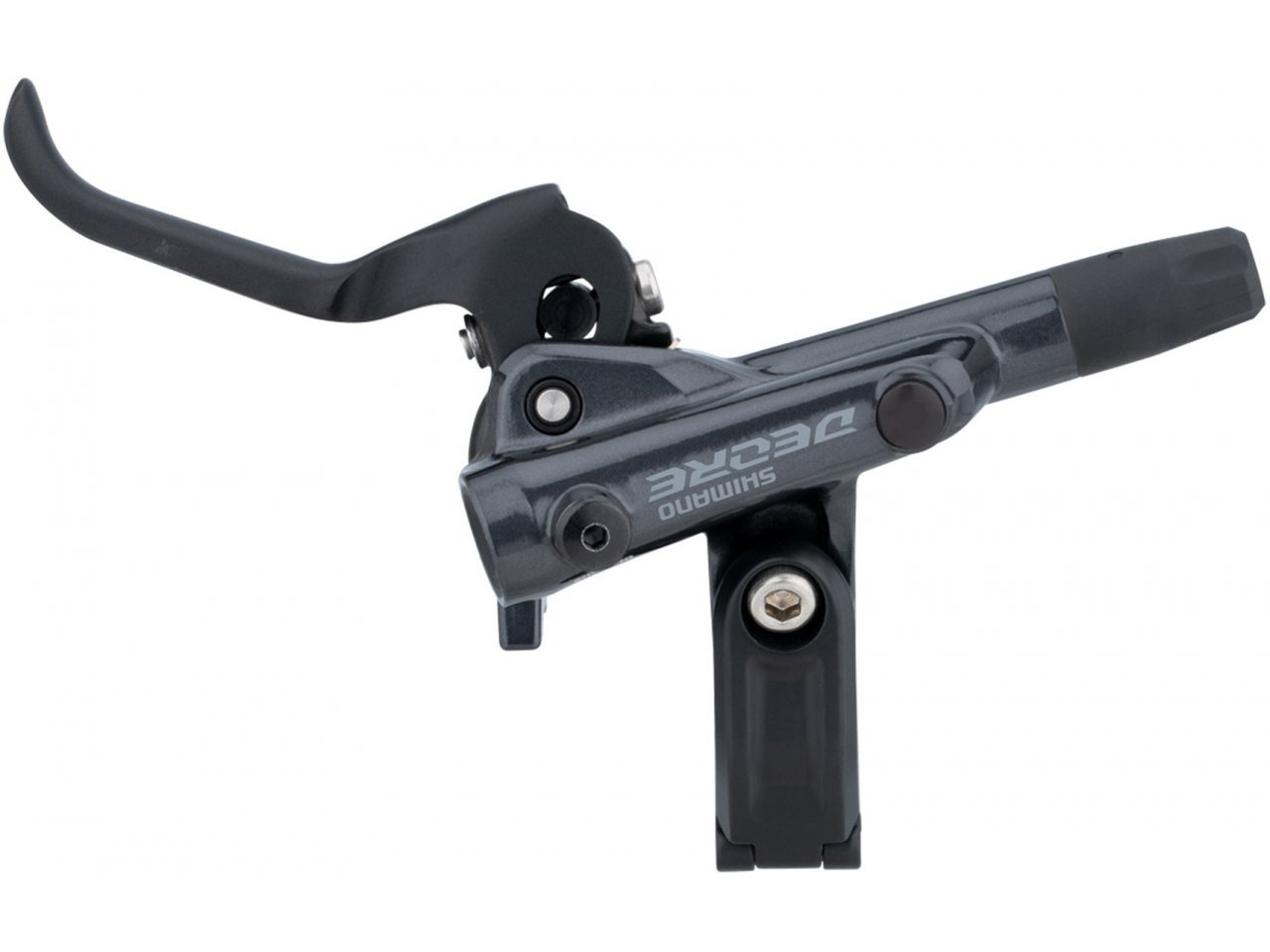

The M6100's I-SPEC EV lever optimizes tuning to accommodate more fit options with the shift lever and braces the brake lever body against the handlebar for more stability under heavy braking.The M6100 caliper body brings powerful performance with a responsive two-piston design and uses Shimano's ICE Tech cooling system to dissipate heat efficiently for reliable and consistent braking.

The Deore BR-M6100 are value-packed hydraulic disc brake with many of the same performance-enhancing features that were originally developed for Shimano's premium XTR and XT ranges.

The lever now has a shorter free stroke and quicker brake engagement and an additional contact point braces the lever against the bars for intuitive and powerful braking with greatly reduced flex through the lever body. Deore series brakes are now I-Spec EV compatible, allowing you to mount your shifter or remote lever on the same clamp for a clutter-free cockpit.

The BR-M6100 features a lightweight 2-piston caliper for lightweight and reliable braking performance in all conditions.



Specifications

MODEL NO

BR-M6100

SERIES

DEORE M6100 Series

Color

Series Color | Black

Remarks

Only compatible with resin pad

Brake hose color (kit)

Black

Brake hose (kit)

SM-BH90-SS

Brake Type

Hydraulic disc brake

Caliper fixing bolt_Anti loosen method

Snap ring

Caliper fixing bolt_Tool size

5 mm

Hose joint

Straight

J-Kit spec (for OEM)

Mount type(available for IS mount with mount adapter)

Post-type

Oil

SHIMANO Mineral

One way bleeding

Pad_Option

G04S Metal

Pad_Standard

G03S Resin | J03A Resin

Pad mount

Split pin, Stainless Steel

Piston

2

Recommended brake lever

BL-M6100

Recommended brake rotor

SM-RT54 *, SM-RT56 *, SM-RT64, SM-RT66

Ice technology pad compatible caliper

Technical Specifications

Who is this item for: The lightweight 2-piston caliper in the BR-M6100 makes it an excellent choice for XC and Trail bikes.

How many pistons: The BR-M6100 has a 2-piston caliper.

Material: Anodised aluminium brake lever and painted aluminium master cylinder and caliper.

Adjustment: The lever has tooled reach adjustment (via Allen key).

Brake Type/Fluid: Shimano brakes use mineral oil.

Which Pads: The brakes are shipped with Shimano J03A resin - organic, aluminium backed pads. They are also compatible with J series finned pads.

Mount: The brakes levers are I-Spec EV compatible so they can be cleanly matched with latest model Shimano shifters and various aftermarket dropper post remotes.

Hose LengthRear: 1700mm | Front: 1000mm

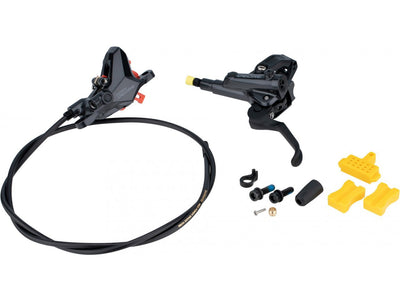

Are the brakes bled: The brakes are Shimano J-Kit which means they are fully bled in the factory and the brake line is disconnected at the lever end to allow for easier installation on frames with internal routing. The brake line is capped and the lever plugged and the olive is shipped inside the brake lever. If you don't need to trim your brake lines you can reattach the brake line without the need to bleed your brakes.

⚠️NOTE: NO ROTORS included.⚠️

Warranty Information

  • 3 Years Warranty on Dura-Ace and XTR Components
  • 2 Years Warranty on all other Shimano Components
  • 1 Year Warranty on all Shimano footwear, clothing and wheels

About Shimano

Established in 1921.

Shimano is the world's largest manufacturer of bike components.

Today Shimano globally operates three key businesses, with sales offices and factories all over the world. They will continue supplying “captivating products” to help promote the bicycle and sports fishing cultures

Japanese company Shimano is the most popular groupset manufacturer with a range of groupsets at different prices. It’s constantly updating the other bike components too, with the newest features debuting first on its top-end technology, Dura-Ace, before eventually filtering down through the range.

Their bicycle components division has a wide range of product line-ups such as brakes, pedals, wheels, gears, chain sets etc., and represents 80% of the company’s total revenue.

Shimano has about 70% of global share in bicycle gears and brakes, and approx. 50% of the overall bicycle components market.

Shimano’s products are designed to meet customer needs for easy, trouble-free installation with a guaranteed great result every time. Some factors that aid Shimano to stay ahead over their competitors are as follows: Economical prices client-friendly service timely delivery wide distribution network ethical business operations transparent deals the team carries out a comprehensive range of tests on all components and finished products to ensure we meet or exceed all the international standards. Their quality commitment extends to social, ethical and environmental responsibilities and Shimano are proud to be members of all the key industry associations.
