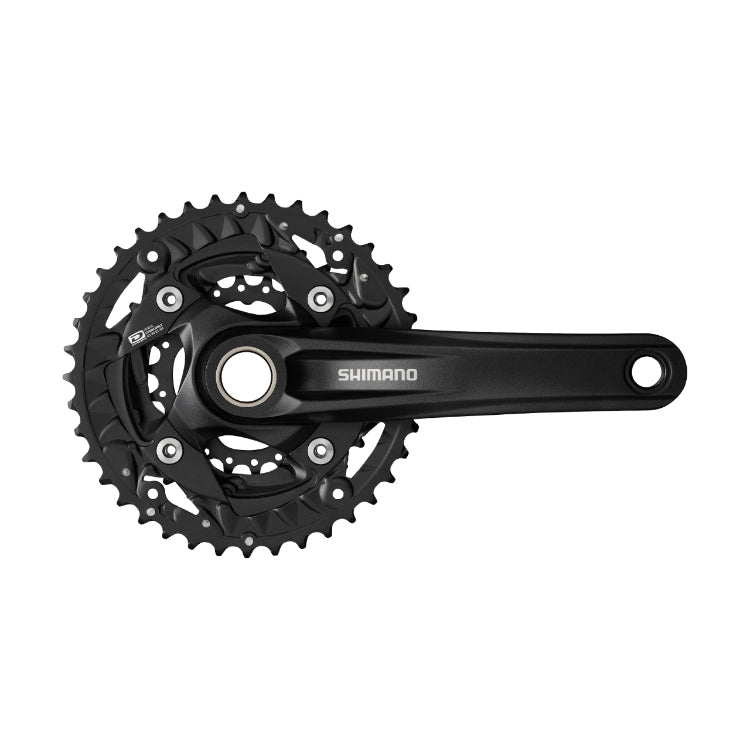

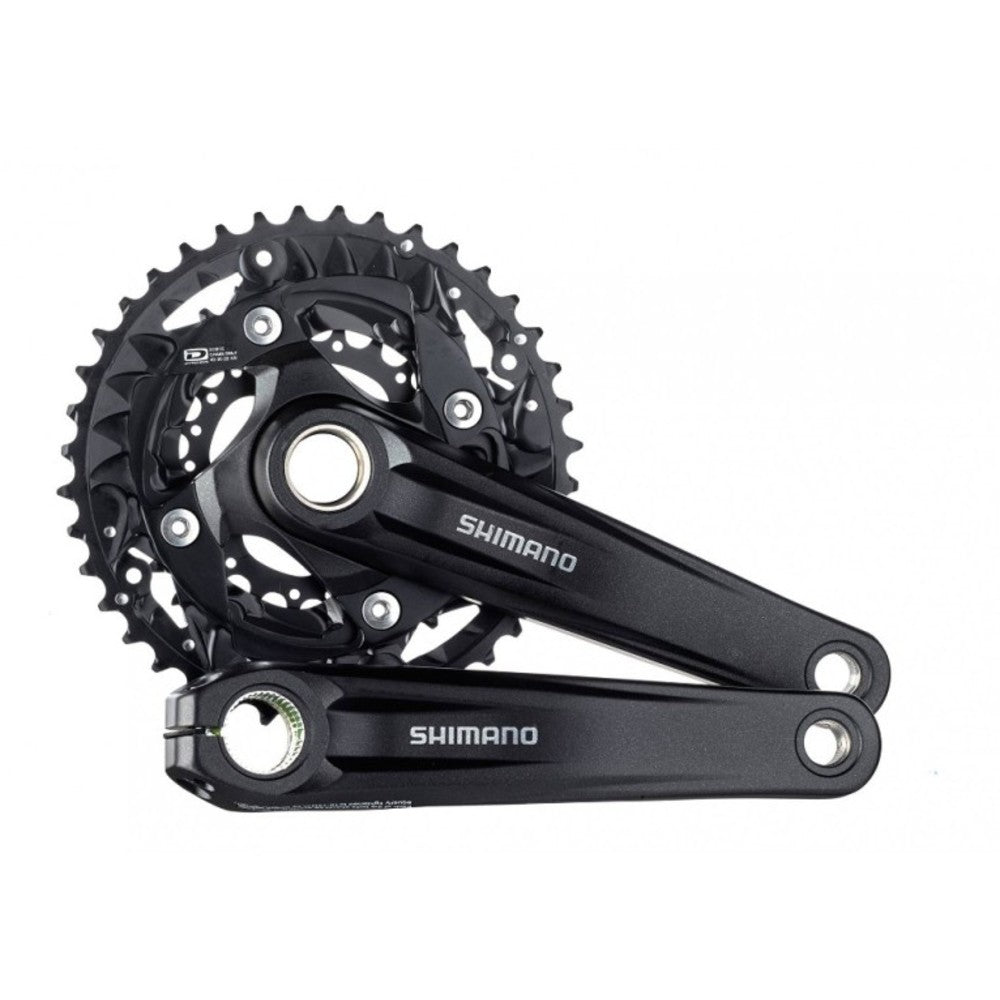

Shimano FC-MT500-3 Front Chainwheel
EFCMT500CX002X
SHIMANO - 2-PIECE CRANKSET - MTB - 3x10-speed
With a wide range for comfortable riding from pavement to steep mountains, the SHIMANO FC-MT500-3 crank uses a 2-piece construction and replaceable chainrings for lasting performance.
- Solid pedaling efficiently
- Balance of strength and lightweight by 2pcs crank construction
- Most affordable 2pcs crank (10-speed)
- Wide range, low ratio and suitable gear step for 27.5/29 inch wheel bike riders
- Press-fit and threaded bottom bracket compatible
- Wide range and low ratio for wide usage from paved road to steep mountain
- Rider without physically strength
- Woman specific bike
- Stable shifting performance
- Quality appearance in class
PRODUCT SPECIFICATIONS
| MODEL NO | FC-MT500-3 |
|---|---|
| SERIES | SHIMANO |
| Color | Black |
| Remarks | * It is fixed on the threaded middle ring. |
| 2-piece crank construction | ✔ |
|---|---|
| Chain line (mm) | 50 |
| Chain ring combination | 40-30-22T |
| Compatible BB type_Outboard | ✔ |
| Compatible chain | HG-X 10-speed |
| Crank fixing bolt included | ✔ |
| Crank arm length (mm)_170.0 | ✔ |
| Crank arm length (mm)_175.0 | ✔ |
| Gear arms | 4 |
| Optional chain guard_With chain guard | ✔ |
| Optional chain guard_Without chain / bash guard | ✔ |
| P.C.D. (mm) | 96/64 |
| Rear speeds | 10 |
| Recommended BB_Pressfit | BB-MT500-PA |
| Recommended BB_Threaded (E-type) | SM-BB52 |
| Recommended BB_Threaded (normal) | SM-BB52 |
| Threaded BB shell width_68mm | ✔ |
| Threaded BB shell width_73mm | ✔ |
| Crank arm fixing bolt_With | ✔ |
| Q-factor (mm) | 177 |
